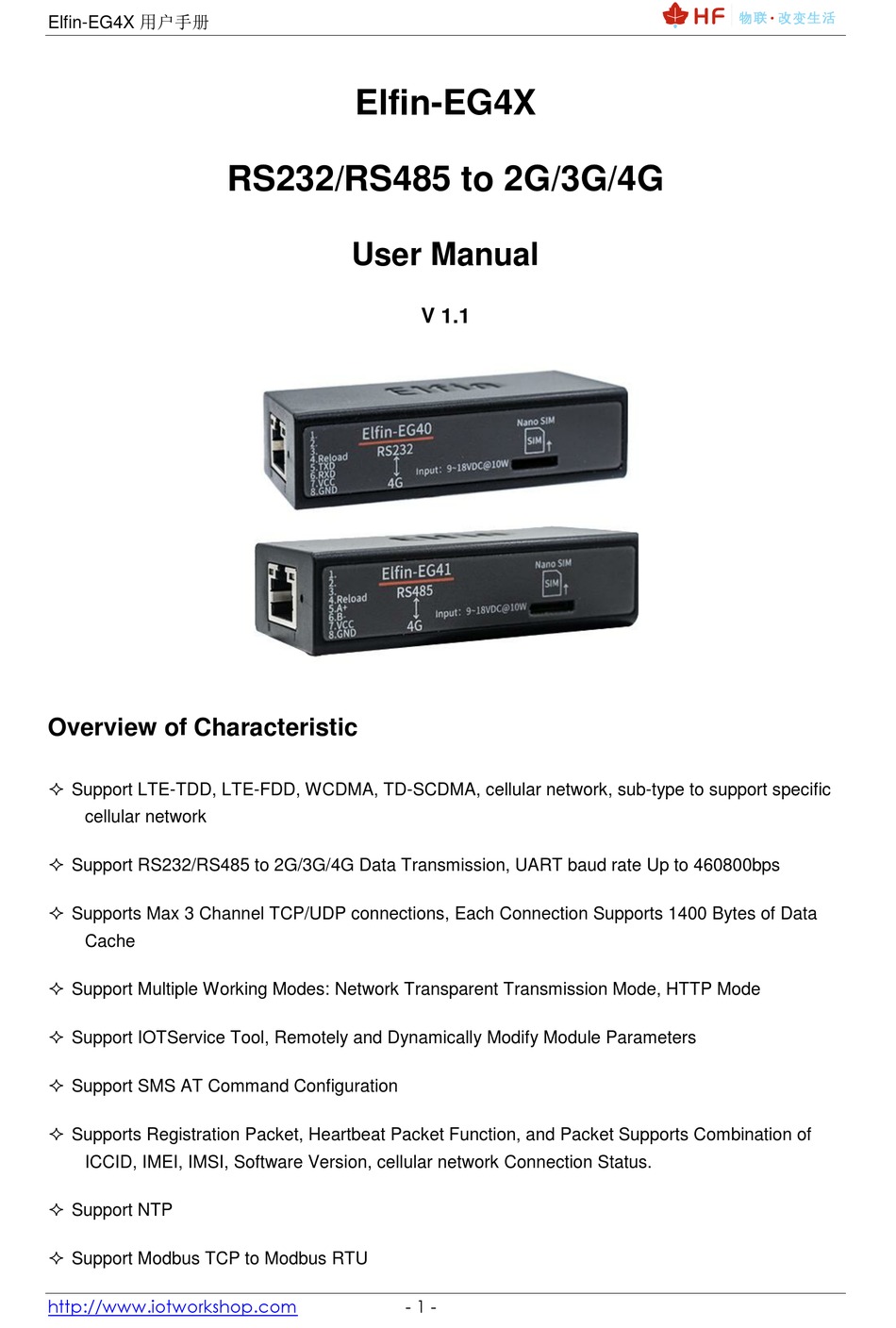

Elfin-EG4X 用户手册
Overview of Characteristic
Support LTE-TDD, LTE-FDD, WCDMA, TD-SCDMA, cellular network, sub-type to support specific
cellular network
Support RS232/RS485 to 2G/3G/4G Data Transmission, UART baud rate Up to 460800bps
Supports Max 3 Channel TCP/UDP connections, Each Connection Supports 1400 Bytes of Data
Cache
Support Multiple Working Modes: Network Transparent Transmission Mode, HTTP Mode
Support IOTService Tool, Remotely and Dynamically Modify Module Parameters
Support SMS AT Command Configuration
Supports Registration Packet, Heartbeat Packet Function, and Packet Supports Combination of
ICCID, IMEI, IMSI, Software Version, cellular network Connection Status.
Support NTP
Support Modbus TCP to Modbus RTU
http://www.iotworkshop.com
Elfin-EG4X
RS232/RS485 to 2G/3G/4G
User Manual
V 1.1
- 1 -
Advertisement
Table of Contents
Summary of Contents for Hi-flying Elfin-EG4X
-
Page 1: User Manual
Elfin-EG4X 用户手册 Elfin-EG4X RS232/RS485 to 2G/3G/4G User Manual V 1.1 Overview of Characteristic Support LTE-TDD, LTE-FDD, WCDMA, TD-SCDMA, cellular network, sub-type to support specific cellular network Support RS232/RS485 to 2G/3G/4G Data Transmission, UART baud rate Up to 460800bps ... - Page 2 Elfin-EG4X 用户手册 Support IOTBridge for Remote Control and Config. Support IOTBridge working time, for example only works from 10:00 to 10:30 to save the data flow charge. Support Serial Port, Network OTA Upgrade Firmware. Size: 68.5 x 35 x 17.8mm ...
-
Page 3: Table Of Contents
Elfin-EG4X 用户手册 TABLE OF CONTENTS TABLE OF CONTENTS ........................3 LIST OF FIGURES ..........................4 LIST OF TABLES ..........................4 PRODUCT OVERVIER ......................5 1.1. General Description ......................5 1.2. Device Parameters ......................6 1.3. Key Applications ......................7 HARDWARE INTRODUCTION ................... 8 2.1. -
Page 4: List Of Figures
RJ45 Transform Connector......................16 Figure 18. Product Installation ........................17 Figure 19. EVK Package ..........................18 Figure 20. Elfin-EG4X Product Order Information ................... 18 LIST OF TABLES Elfin-EG4X Technical Specifications ...................... 6 Elfin-EG40 Interface Definition ....................... 9 Elfin-EG41 Interface Definition ......................10 HISTORY V 1.0 03-29-2019. -
Page 5: Product Overvier
The Elfin-EG4X module support TCPIP protocol, with its RS232/RS485 interface, it make traditional UART device easy connecting to IOT. Elfin-EG4X is an RJ45 interface serial server with ultra-small size: 68.5 x 35 x 17.8mm Elfin-EG4X include different sub-type, as following table. -
Page 6: Device Parameters
Elfin-EG4X 用户手册 1.2. Device Parameters Elfin-EG4X Technical Specifications Item Parameters System Information Processor/Frequency Cortex-M3/96MHz Operating System FreeRTOS 2G/3G/4G Interface LTE-TDD: Class 3(23dBm+1/-3dB) LTE-FDD: Class 3(23dBm±2dB) WCDMA: Class 3(24dBm+1/-3dB) TD-SCDMA: Class 3(24dBm+1/-3dB) Transmit Power GSM900: Class 4(33dBm±3dB) DCS1800: Class 1(30dBm± 3dB) GSM900 8-PSK: Class E2(27dBm±3dB) -
Page 7: Key Applications
Typical 9V@1A Average Working ~300mA@9V Current Peak Current 1.3. Key Applications The Elfin-EG4X module connects the serial device to the Internet and conforms to the TCP/IP protocol for transmitting serial data. ⚫ Remote device monitoring ⚫ Production asset tracking and monitoring ⚫... -
Page 8: Hardware Introduction
Elfin-EG4X 用户手册 2. HARDWARE INTRODUCTION Elfin-EG4X is a cellular network solution for serial device networking. Data transmission via cellular network makes product integration very easy. This product meets EMC Class B security level and can pass relevant certification tests in various countries. -
Page 9: Elfin-Eg40 Pin Definition
Elfin-EG4X 用户手册 Figure 2. Elfin-EG41 Appearance 2.2. Elfin-EG40 Pin Definition Figure 3. Elfin-EG40 RJ45 Interface Pin Elfin-EG40 Interface Definition Description Net Name Signal Type Notes UART_TX TTL_UART_ 3.3V TTL UART Output TTL Voltage UART_RX TTL_UART_ 3.3V TTL UART Input TTL Voltage Please leave it open http://www.iotworkshop.com... -
Page 10: Elfin-Eg41 Pin Definition
Elfin-EG4X 用户手册 Description Net Name Signal Type Notes Please leave it open UART_TX RS232 UART_TXD RS232 Voltage UART_RX RS232 UART_RXD RS232 Voltage 9～18VDC@1A Power VCC Power Power GND Power Boot On: Power is OK. 2s Off -> 2s On: cellular network Register Green LED is OK. -
Page 11: Rs232 Interface
The RS485 interface support maximum 32 485 device, device. The cable maximum length is 1200 meters. Need to add 120Ohm terminal resistor for over 300 meters. 2.6. Mechanical Size The dimensions of Elfin-EG4X are defined as following pictures(mm): http://www.iotworkshop.com - 11 -... -
Page 12: Rj45 8Pin Connector
Elfin-EG4X 用户手册 Figure 5. Elfin-EG4X Mechanical Size 2.7. RJ45 8PIN Connector RJ45 8PIN Connector Type Order: 10810001001 Figure 6. RJ45 8PIN Connector http://www.iotworkshop.com - 12 -... -
Page 13: Rj45 4Pin Connector
Elfin-EG4X 用户手册 Figure 7. EG40+8PIN Connector Figure 8. EG41+8PIN Connector 2.8. RJ45 4PIN Connector RJ45 4PIN Connector Type Order: 10810001002 Figure 9. RJ45 4PIN Connector http://www.iotworkshop.com - 13 -... -
Page 14: Interface Conversion Cable
Elfin-EG4X 用户手册 Figure 10. EG40 +4PIN Connector Figure 11. EG41+4PIN Connector 2.9. Interface Conversion Cable Figure 12. Interface Conversion Cable May also make cable according to the following picture. http://www.iotworkshop.com - 14 -... -
Page 15: Fixed Bracket
Elfin-EG4X 用户手册 Figure 13. Cable Manufacture Guide 2.10. Fixed Bracket Figure 14. Fixed Bracket 2.11. Rail Bracket http://www.iotworkshop.com - 15 -... -
Page 16: Bracket
Elfin-EG4X 用户手册 Figure 15. Rail Bracket 2.12. Bracket Figure 16. Bracket Install Picture 2.13. RJ45 Transform Connector Figure 17. RJ45 Transform Connector http://www.iotworkshop.com - 16 -... -
Page 17: Product Installation
Elfin-EG4X 用户手册 2.14. Product Installation Figure 18. Product Installation 2.15. EVK EVK indluce one Elfin device, one RJ45 Connector and one screw driver. http://www.iotworkshop.com - 17 -... -
Page 18: Product Order Information
Elfin-EG4X 用户手册 Figure 19. EVK Package 2.16. Product Order Information Based on customers detailed requirements, we provide different configuration Elfin-EG4X, details as below: Figure 20. Elfin-EG4X Product Order Information http://www.iotworkshop.com - 18 -... -
Page 19: Appendix A: Contact Information
Elfin-EG4X 用户手册 APPENDIX A: CONTACT INFORMATION ------------------------------------------------------------------------------------------------------------ Address: Room1002 , #1Building, No.3000 Longdong Avenue, Pudong District, Shanghai, China 201202 Website: www.iotworkshop.com www.hi-flying.com Contact: Sales：sales@iotworkshop.com Support：support@iotworkshop.com Service：service@iotworkshop.com Business：business@iotworkshop.com ---------------------------------------------------------------------------- ------------------------------- For more information about us, please visit our website: www.iotworkshop.com < END OF DOCUMENT >...
