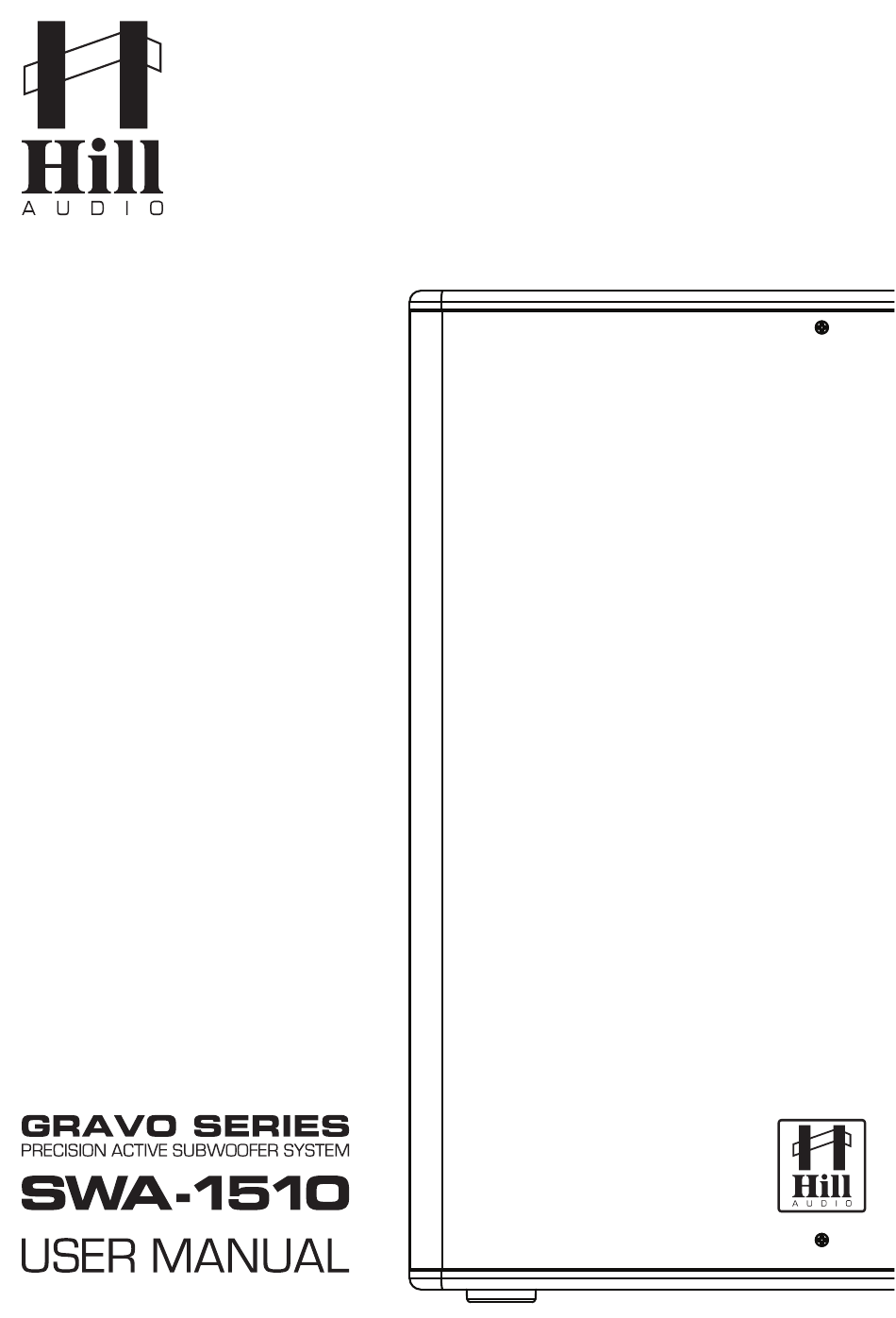

Hill Audio GRAVO Series User Manual

Precision active subwoofer system
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
RevA 06-2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GRAVO Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Hill Audio GRAVO Series

  • Page 1 RevA 06-2017...

  • Page 2: Important Safety Instructions

    USER MANUAL - GRAVO ACTIVE SUBWOOFER Welcome Thank you for choosing Hill Audio for your sound system. To make sure that this product meets your expectations and provides long-term, reliable performance, please read and follow this instruction manual carefully. Manual Language This user manual is written in English.
  • Page 3 D amplifier, these subwoofers are both robust in their handling and powerful in their performance. Adding precision transducers, they offer great sound as an extension in the subbass frequency range to any portable and installed sound system. The Gravo series consists of three different models: SWA-1210: 12” Driver SWA-1510: 15” Driver SWA-1810: 18”...

  • Page 4: Operation

    USER MANUAL - GRAVO ACTIVE SUBWOOFER Operation User Interface Functional Description Andante V2 speakers offer a user interface which resembles a basic 4-channel mixer. Apart from the main mono line input (CH1), a dedicated microphone input (CH2) and two stereo line inputs (CH3/4) are provided.
  • Page 5 USER MANUAL - GRAVO ACTIVE SUBWOOFER Power indicator. This LED indicates whether the product is switched on or off. Audio Input (Left and Right). This is an electronically balanced Combo input for line level signals which accepts male XLR plugs or TRS plugs. Audio LINK OUT connectors.
  • Page 6 USER MANUAL - GRAVO ACTIVE SUBWOOFER Connections The Andante V2 series speakers use the below connector types, for which the pin assignment must comply with the following specification. Always make sure to use good connectors and cables to ensure proper operation. Balanced connections are to be preferred over unbalanced connections where applicable and feasible.

  • Page 7: Technical Specifications

    USER MANUAL - GRAVO ACTIVE SUBWOOFER Technical Specifications Frequency response (-6 dB)..................39Hz-150Hz Additional switchable LPF.....................120Hz LF Driver......................15’’, 3.0’’VC, 700W Max SPL ................RMS/Program/Peak 126/129/132dB Amplifier Topology......................Class D Amplifier power EIA/RMS....................770/500W AC IN....................115/230V~ 50Hz-60Hz (600W) Dimensions..................W450.0×D585.0×H545.0 mm Material......................15mm birch plywood Surface....................Scratch-resistant paint, black Weight..........................28.0 kg Block Diagram MASTER LEVEL...

  • Page 8: Ec Declaration Of Conformity

    Burnham-on-Crouch, 16.12.2016 Place and date of issuing Authorized Signature www.hill-audio.com Hill Audio products are developed, manufactured and distributed by Adelto Technologies Unit 2A Springfield Road, Springfield Industrial Estate, Burnham-on-Crouch, Essex CM08UA, England www.adelto.com | sales@adelto.com...

This manual is also suitable for:

Gravo swa-1510
