Summary of Contents for Sunsky S-TT-0120

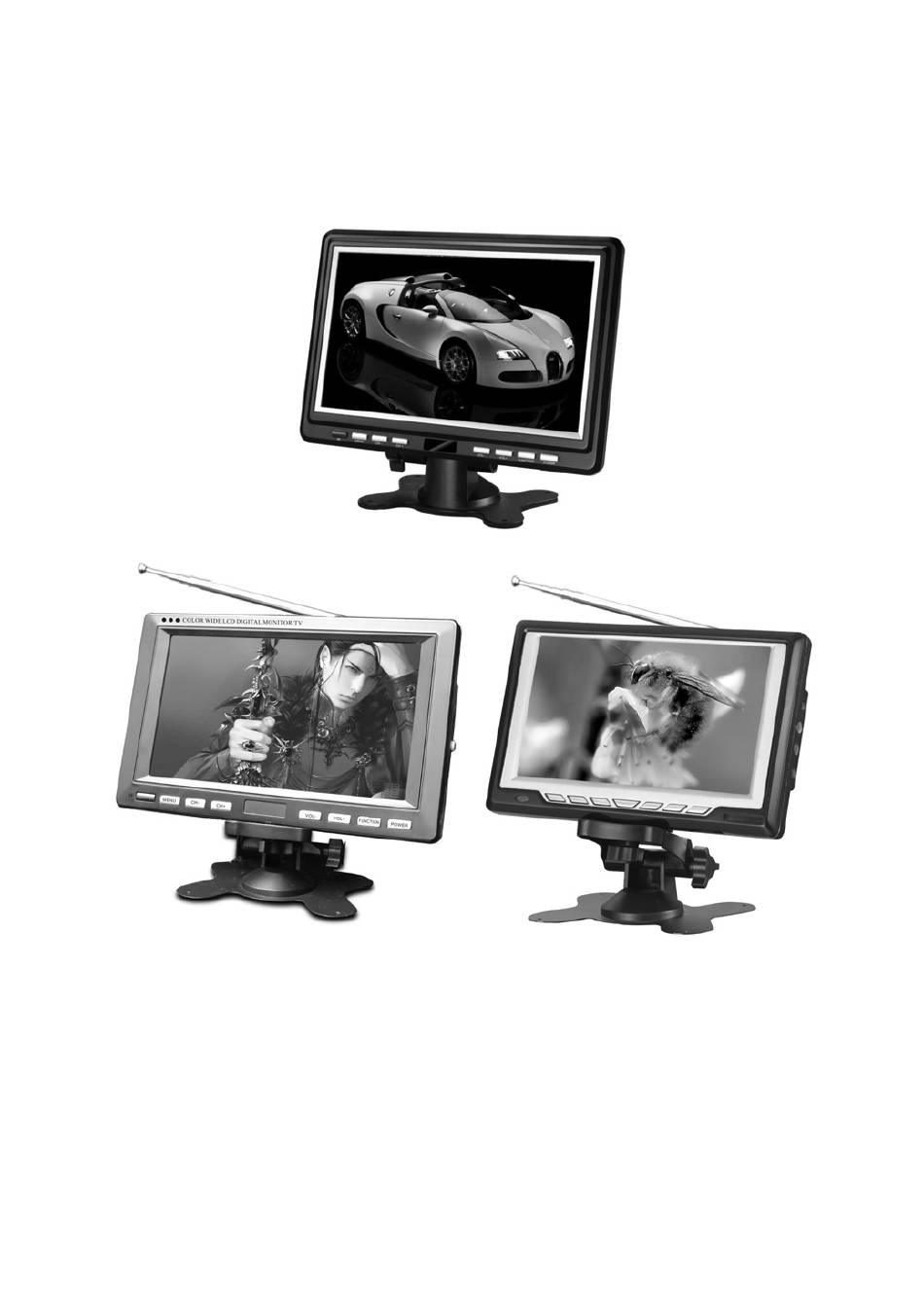

- Page 1 Portable Liquid Crystal Display/TV Instruction Dear Customers: Thanks for buying this product. To assure the best performance and security, please carefully read and keep this manual before operating or adjusting this product.
-
Page 3: Table Of Contents
Contents I. Safe Information about Use............2 II. Main Functions and Features.............2 III. Instruction of Host..............3 IV. Connection of Host..............7 IV. Basic Operation.................7 VI. Overhaul for Fault and Points for Attention......12 VII. Technical Specification and Parameters........12 VIII. List for Accessories..............13... -
Page 4: Safe Information About Use
I. Safe Information about Use 1. The safe voltage for the power adapter of this machine ranges from 100V to 240V. And destroy shall be caused or it has no function if it is beyond this scope. 2. The player shall be not used in the especially cold, hot, dusty or damp environment. -
Page 5: Instruction Of Host
III. Instruction for Host COLOR WIDE LCD DIGITAL MONITOR/TV Menu Vol- Vol+ Function Power... - Page 6 COLOR WIDE LCD DIGITAL MONITOR/TV Menu Vol- Vol+ Function Power...
- Page 7 (1) Remote control for units with USB&Card-readiog function...
- Page 8 (2) Remote control for units without USB&Card-readiog function Instruction for Remote Controller MODE MUTE VOL- RNTURN STOP ENTER LEFT DOWN PAUSE/PLAY NEME RAL POWER MENU VOL+ BACK RIGHT FORW REPEAT PREV NEXT...
-
Page 9: Connection Of Host
IV. Connection of Host 1. Alternating Current Adapter Insert the direct current output terminal of the random incident alternating current adapter into DC IN12V plug on the right of the host and connect the other terminal on the socket with alternating power of 100-240V. - Page 10 character shall appear at the upper right corner of the screen. 2. Television The basic operations for receiving TV 1. Stretch out the telescopic antenna or insert the cable of the wired television or the cable of outdoor antenna into the signal plug.
- Page 11 8. TEF operation language: choose the applicable language to watch 9. Color Mode: switching can be made among AUTO, PAL, NTSC and SECAM 10. Sound Mode: switching can be made between I, M, BG and DK. Please set TV sound mode applicable for the local place.
- Page 12 sound mode shall display on the upper right corner of the screen. 18. The key on the remote controller can be used to return to the program watched in the last time. 19. Press the “MUTE” key on the remote controller to turn on or off the TV sound.
- Page 13 The other function While reading SD/MMC, the STOP REPEAT FF FR PREV NEXT PAUSE/PLAL VOL- VOL+ direction and number keys are valid 4. Card-reading function (This function can be optical) 1. Insert SD/MMC/MS card into the card slot on the left of the panel board.
-
Page 14: Overhaul For Fault And Points For Attention
VII. Overhaul for Fault and Points for Attention Please check the reasons according to the followings before the maintenance: There is no image when AV input. Do not switch into AV input status. There is no signal or the signal line is misconnected. TV can not be received. -
Page 15: List For Accessories
4. Push keys of remote controller: total 21 5. Use distance of remote controller: within 5 meters 6. Max. flow rate: 4Mbps 7. Size: 190*122*26, about 300g B Specification of Power 1. Working Current: <1.5A(9-12V) 2. Standby Current: <0.5A(9-12V) VIII. List of Accessories Name Quantity Alternating Current Power Adaptor...
