Blanco Precision Microedge 516194 Specification Sheet

F E AT U R E D M O D E L
516194 10" bowl depth
A D D I T I O N A L M O D E L S
516197 Super Single Bowl with Ledge (3 Hole)
516201 Super Single Bowl
F E AT U R E S
18 gauge, 304 series stainless steel
•
18/10 chrome/nickel content
•
Satin polished finish
•
V ersatile design with Inset (Similar to Drop-in)
•
or Flushmount installation capabilities
P olished "MicroEdge" rim with
•
1/4" corner radius
Stylish drain grooves for improved functionality
•
N ew design allows for easy installation in standard
•
25" countertop
C O D E / S TA N DA R D S C O M P L I A N C E
ASME 112.19.3-00
IAPMO/UPC listed
O P T I O N A L A C C E S S O R I E S
Sink Grid: 223-192
Colander: 224387 (Available May 2009)
Glass Cutting Board: 224390 (Available May 2009)
WA R R A N T Y
Blanco America's BLANCO PRECISION MICROEDGE
sinks feature a LIMITED LIFETIME WARRANTY to be free
of all manufacturing defects under normal use. See our
complete warranty for details.
While Blanco America endeavors to provide accurate
information, all dimensions are nominal, cannot be
guaranteed, and are subject to change or cancellation.
Blanco America assumes no responsibility for use of
superseded or voided specifications.
P R O D U C T S P E C I F I C AT I O N
Inset or Flushmount sink to be 32-1/2" in length
and 20-1/2" in front-to-back depth. Each sink
is handcrafted from a single panel of 18 gauge,
304 series stainless steel, with 18/10 chrome/
nickel content and satin polished finish. Sink
to feature polished "MicroEdge" 1/16" rim
with 1/4" corner radius edge and rear drain
placement. Sink to be Blanco Model 516194,
with a bowl depth of 10".
J O B I N F O R M AT I O N
Job Name:
Contact:
Date Specified:
Specifier:
Contractor:

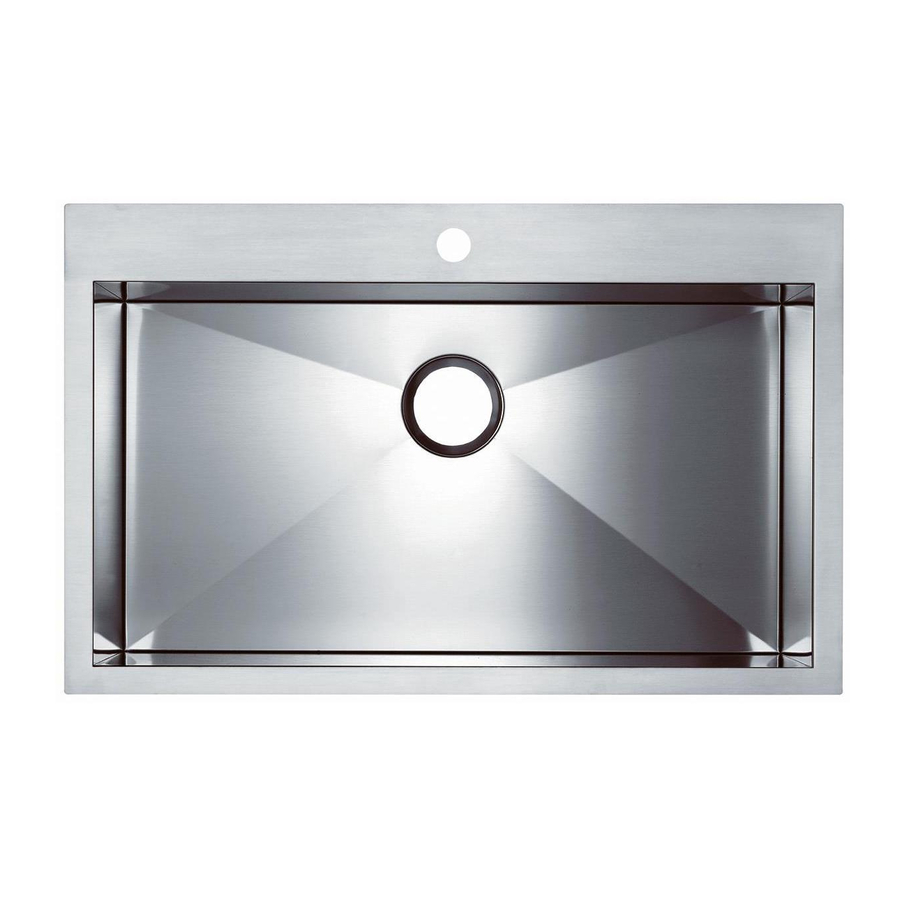

BLANCO PRECISION™ MICROEDGE™ SUPER SINGLE BOWL With Ledge (1 Hole)
N O M I N A L D I M E N S I O N S
MODEL
516194
DXF cutout templates available on our web site.
BL A N C O A M E R I C A
8 0 0 . 4 51. 5 7 8 2
w w w. b l a n c o a m e r i c a .c o m
S IN K SP E CI F I CAT I O NS
BOWL
OVERALL DEPTH
32-1/2 x 20-1/2 10
31.75
1-1/4
762
30
825.5
32-1/2
© 2008 BLANCO AMERICA
11/08
BLANCO STEELART
Model 516194
MODEL 516194
DRAIN
DIAMETER
3-1/2
31.75
1-1/4
SPEC-003
