WIRING, CONFIGURATION, & MOUNTING INSTRUCTIONS

WIRING DIAGRAM

COLOR FUNCTION
Red Mode 1
Yellow Mode 2
Blue Pattern
Black Ground
WIRING INSTRUCTIONS:
1) To activate the unit, extend the red (+) or yellow (+) wire
to a 12V post. Extend the black (-) wire to the ground post
of the vehicle's battery.
Please note that mode 2 overrides mode 1.
2) Momentarily connect the blue wire to the ground (12V-)
to cycle through the flash patterns.
SYNCHRONIZATION:
3) To sync two or more light heads together:
A) Apply 12V+ power to the red or yellow (+) wire and
apply 12V- to black wire to power the unit on.
B) Cycle through all patterns by tapping the blue (flash
pattern changer) wire to the activated black ground
wire until the steady burn pattern is selected.
C) Turn power off. Connect one of the same colored
mode wires (red or yellow) of the two light heads
together, connect the black wires of the light heads
together and then connect the blue wires of the light
heads together. Turn power back on.
ALTERNATE LIGHT HEADS:
D) Follow steps A-B.
E) For the light heads to alternate, one light head must
be set as master and the other as slave on the mode
wire intended for use. To do so, hold the blue (flash
pattern changer) wire to ground for 3 seconds.
If all LEDs turn on, this indicates master mode. If no
LEDs turn on, this indicates slave mode.
F) Follow step C. Change patterns by tapping the blue
wire to the activated black ground wire.
5
FE NI E X // I NST R UCT I O N MA N UAL
WE B // w w w.fe n iex in du s tr ie s .com
POLARITY CONNECTION
12v (+) Latching Switch
12v (+) Latching Switch
12v (-) Momentary Switch
12v (-) Chasis Ground

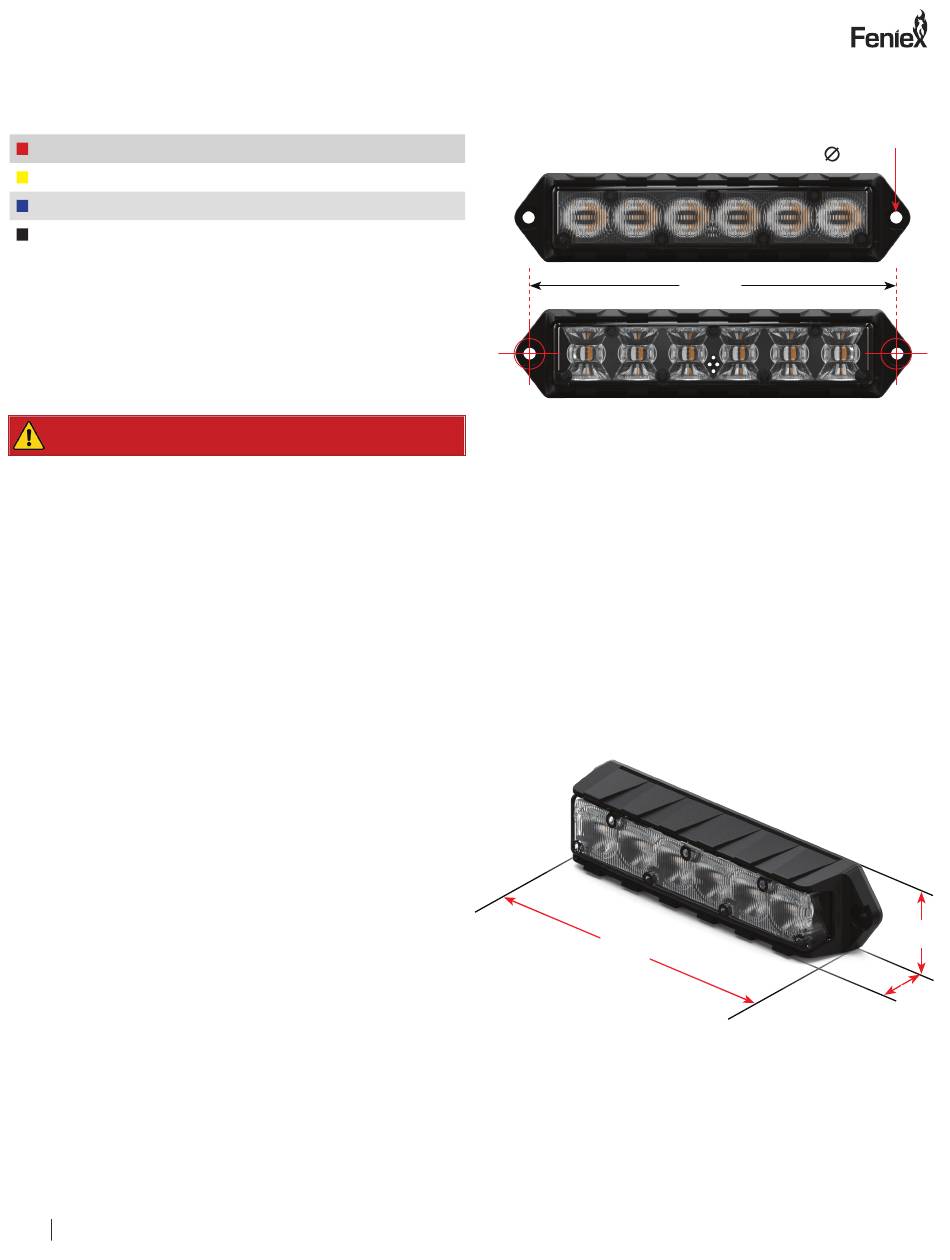

MOUNTING INSTRUCTIONS:

1) Place the unit against the selected mounting surface.
2) Mark the areas where the mounting holes will be drilled.
If the mounting surface is part of the vehicle, make sure
no vital components could be damaged by the drilling
process.
3) Drill two mounting holes in the marked surface as well
as a 0.5" diameter hole for wire passage (if mounting on a
vehicle). Use the rubber pad to position the 0.5" hole for
the wires. Make sure to deburr holes thoroughly. Use a
grommet if needed.
4) Pass the wires through the 0.5" diameter hole, and
secure the light head to the mounting surface with the
provided hardware.
5.22"
0.15"
4.842"
TM
1.17"
0.88"
