Summary of Contents for Heartland WaveReader Speed Queen

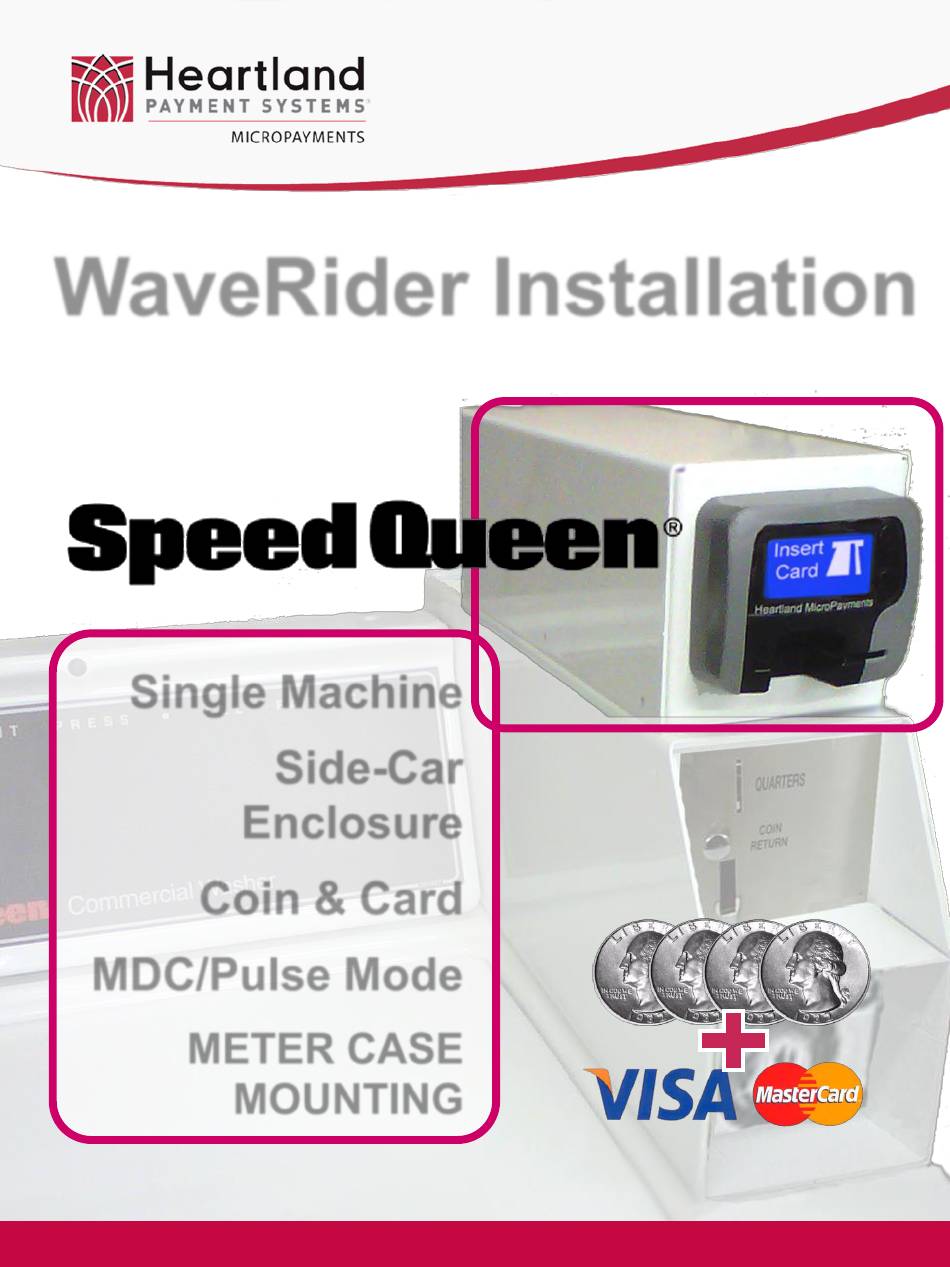

- Page 1 WaveRider Installation Single Machine Side-Car Enclosure Coin & Card MDC/Pulse Mode METER CASE MOUNTING www.heartlandMicroPayments.com 2115 Chapman Road, Suite 159, Chattanooga TN 37421 800.332.4835...
- Page 2 Laundry Machine Model Numbers This document applies to the WaveReader installation process following Alliance/Speed Queen model numbers: Washers Dryers If you cannot locate the model number of the machine you require in the lists above, please contact MicroPayments Customer Service at: Tel: 800-332-4835 Press 2 www.heartlandMicroPayments.com...
- Page 3 Installation Kit Contents & Required Tools This following tables list the required tools & components for the installation process. If you cannot locate and/or identify any of the components listed above, please contact MicroPayments Customer Service at 800-332-4835 , then press 2. Required Tools ...
- Page 4 Interface Harness KIT-HRN-050-6-012 Harness Kit for Speed Queen Coin & Card Item Part Number Description ASM-050-6-012 Stuffed Speed Queen Coin Drop board AYS-050-6-009 Cable, Speed Queen Pulse for WR + Coin www.heartlandMicroPayments.com...
- Page 5 Side Car Housing Speed Queen Side-Car Enclosure Kit KIT-050-6-032S (meter case mounting) Item Part Number Description MFP-050-6-032-011 Side Car Cover MFP-050-6-032-012 Side Car Base MFP-050-6-027 Side Car Access Door - Speed Queen SRW-1/4-20X.50HM Bolt 1/4-20x1/2 Hex Zinc Plated SRW-632X.188PPL Screw 6-32 x 3/16" Pan Head Phil locking SRW-632X.375BTSS Screw 6-32 x 3/8"Button Torx Socket WAS-1/4-20L...
-
Page 6: Installation
!! WARNING !! MAKE SURE THAT ALL POWER HAS BEEN REMOVED FROM THE MACHINE BEFORE ATTEMPTING TO INSTALL ANY HARDWARE OR CABLING! Preparation Disconnect the laundry machine from all power sources before performing any of the following steps. Installation Remove the current coin vault service door, and remove the locking mechanism from the service door. - Page 7 Installation Route the WaveReader interface harness along the interior of the backsplash enclosure and the large single end (J1) of the WaveReader harness end into the meter case via the main cable access hole. Install the locking mechanism that was removed from the original Service Door onto the new Service...
- Page 8 Installation Pull the harness through the meter case’s service door opening, and then through the cable access hole in the new Service Door as shown. On the main panel, connect J3 of the WaveReader harness to the H5 connector on the Speed Queen control board, in the yellow box.
- Page 9 Installation On the control board locate the plug where the coin drop is connected. It should be a small three (3) pin plug that routes out of the H3 connector from the control board. Disconnect it. Locate the Coin Adapter Board. Connect J4 of the WaveReader harness to the mating...
- Page 10 Installation The completed wiring assembly should look like this… Locate the Serial Jumper on the control board and remove it. Wiring Diagram www.heartlandMicroPayments.com...
- Page 11 Installation Pull WaveReader harness through the large, center opening of the Side Car bottom. Make sure that the curved lip on the bottom panel is facing the front of the meter case. Rest the Side Car bottom on top of the meter case and slide it rearward until the curved lip securely grabs the upper-front edge of the meter case.
- Page 12 Installation Secure the WaveReader to the top cover with the four (4) 6-32 Philips Pan Head Locking Screws that were supplied with the Side Car Kit. Connect F1 of the WaveReader harness to the connector on the back of the reader. Position the top Side Car cover so that the two (2) retaining pins at the back...
-
Page 13: Finished Assembly
Installation Install the six (6) 6-32 x 3/8"Button Torx screws to secure the Side Car top cover to the bottom panel. There are three (3) per side. Finished assembly. MDC style Speed Queen machines will require a few programming steps to ensure proper operation with a WaveReader. - Page 14 Installation PLSE Programming – special care should be paid to this setting. The modified excerpt below is from Speed Queen’s ‘MDC Frontload Washer Programming Manual’ and is provided for convenience. Please refer to your machine’s manual for confirmation. www.heartlandMicroPayments.com...
- Page 15 Testing Once the unit has been reassembled, the entire WaveReader needs to be tested before IMPORTANT being returned to The WaveContoller has to be operating and the machines linked to service. it before testing can be performed. 1. Drop 25c into the coin drop. 2.
- Page 16 Testing Using zip-ties, secure all wiring harnesses to prevent pinching, wire-strain, and chafing. Apply the self-adhesive sticker that displays the accepted card brands (supplied) in a clearly visible location . Reattach all machine panels. www.heartlandMicroPayments.com...
