Distributed by / Distribué par: Everik International Inc.
www.everik.com

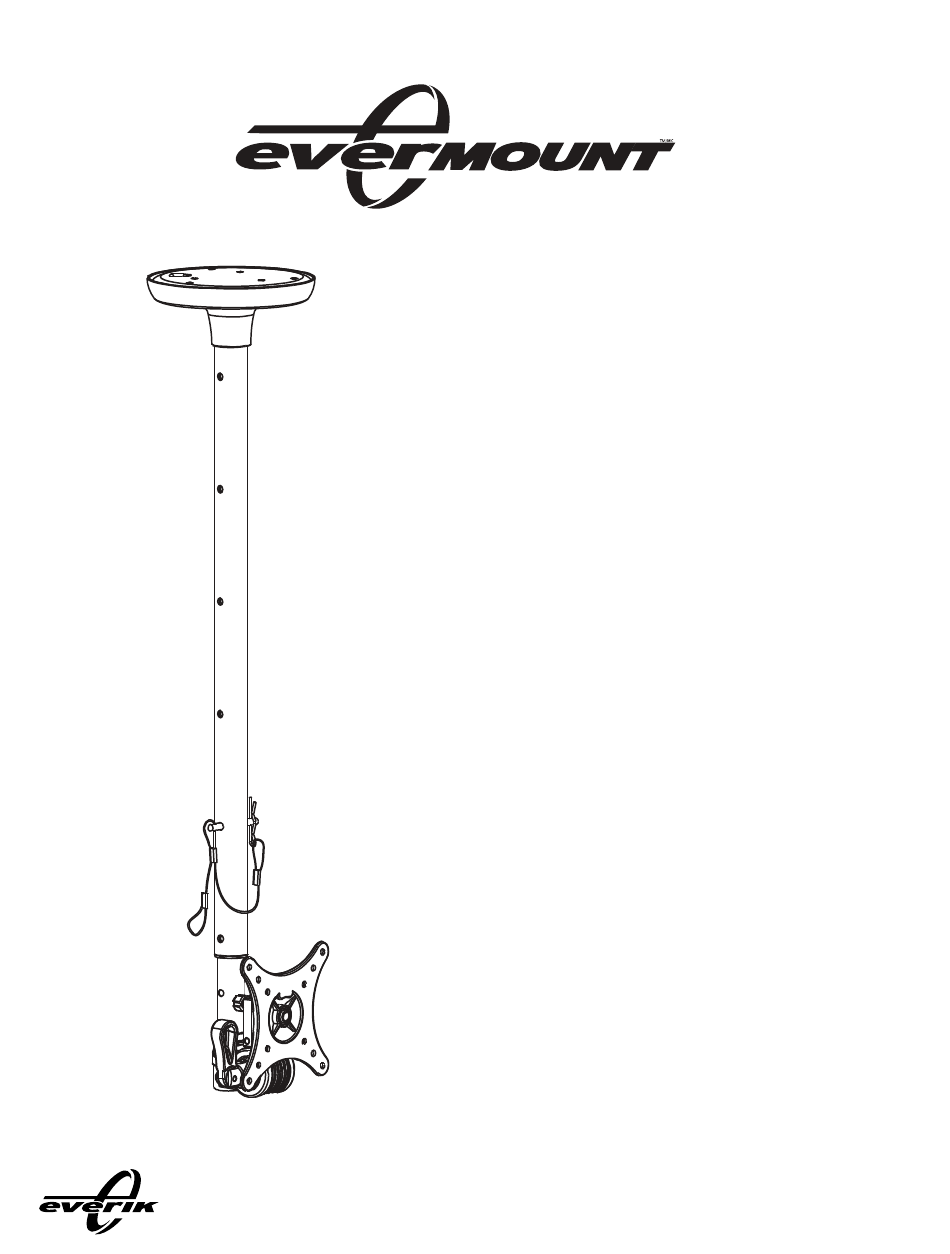

Ceiling Mount
Support de plafond
For LCDs from 26"-40"
•
Maximum Weight Capacity: 55lbs
•
Adjustable height from 22"-46"
•
VESA 100x100 / 200x200
•
Pour les ACL de 26 po à 40 po
•
Charge maximal: 55lb
•
Hauteur Adjustable de 22 po à 46 po
•
VESA 100x100 / 200x200
•
EM-CB
LO012010
Advertisement
Table of Contents
Related Manuals for Everik EverMount EM-CB
Summary of Contents for Everik EverMount EM-CB
- Page 1 VESA 100x100 / 200x200 • Pour les ACL de 26 po à 40 po • Charge maximal: 55lb • Hauteur Adjustable de 22 po à 46 po • VESA 100x100 / 200x200 • Distributed by / Distribué par: Everik International Inc. www.everik.com LO012010...
- Page 2 Before beginning, please check to ensure you have all the parts listed below. To acquire missing parts please visit www.everik.com/parts.html or call 1-866-604-6966. • The EverMount EM-CB is designed to mount a panel from a ceiling. Hardware for mounting to a wood stud is included. For mounting to any other surface, contact a qualified contractor.
- Page 3 Step 1: Wood Joists: Using the ceiling plate as a template, locate the centre of the floor joist and pre drill using a 4mm drill bit to at least 50mm deep. Using the lag bolts provided (F), attach the ceiling plate and tighten using the 5x5 Allen Key (H).
- Page 4 Step 4: Select the appropriate mounting screw for your panel (A-D) and mount the panel to the bracket. Étape 4: Sélectionnez la vis de montage appropriée pour votre écran (A-D) et montez ce dernier sur le support. CAUTION: DO NOT OVERTIGHTEN THE MOUNTING BOLTS AS IT MAY DAMAGE THE PANEL ATTENTION: NE SERREZ PAS TROP FORT.
