AAL Profiline Large Momentary Call Switch
Warning
The use of a call device does not release supervisors from the obligation to supervise the persons
supported by such a device. This system is radio-based and must therefore not be used for
monitoring purposes if life-threatening conditions are foreseeable.
Package contents
Product
AAL Profiline wireless large momentary call switch, incl.
battery
Instruction manual
1
Order number and frequency can be found on the identification decal on the bottom side.
Note: While unpacking, each shipment should be inspected for completeness and damage.
Note: In this manual, the AAL Profiline large momentary call switch is referred to as "large momentary call
switch".
Use and Functions
A call is triggered by applying a slight pressure on the large red bellows. Thus the large momentary call switch is also
suited for persons with greatly limited motor skills.
Placement
Place the product such that the user can reach it with the part of the body intended to trigger the call. If possible, turn
the LED indicator towards the user so that he or she can see when it illuminates.

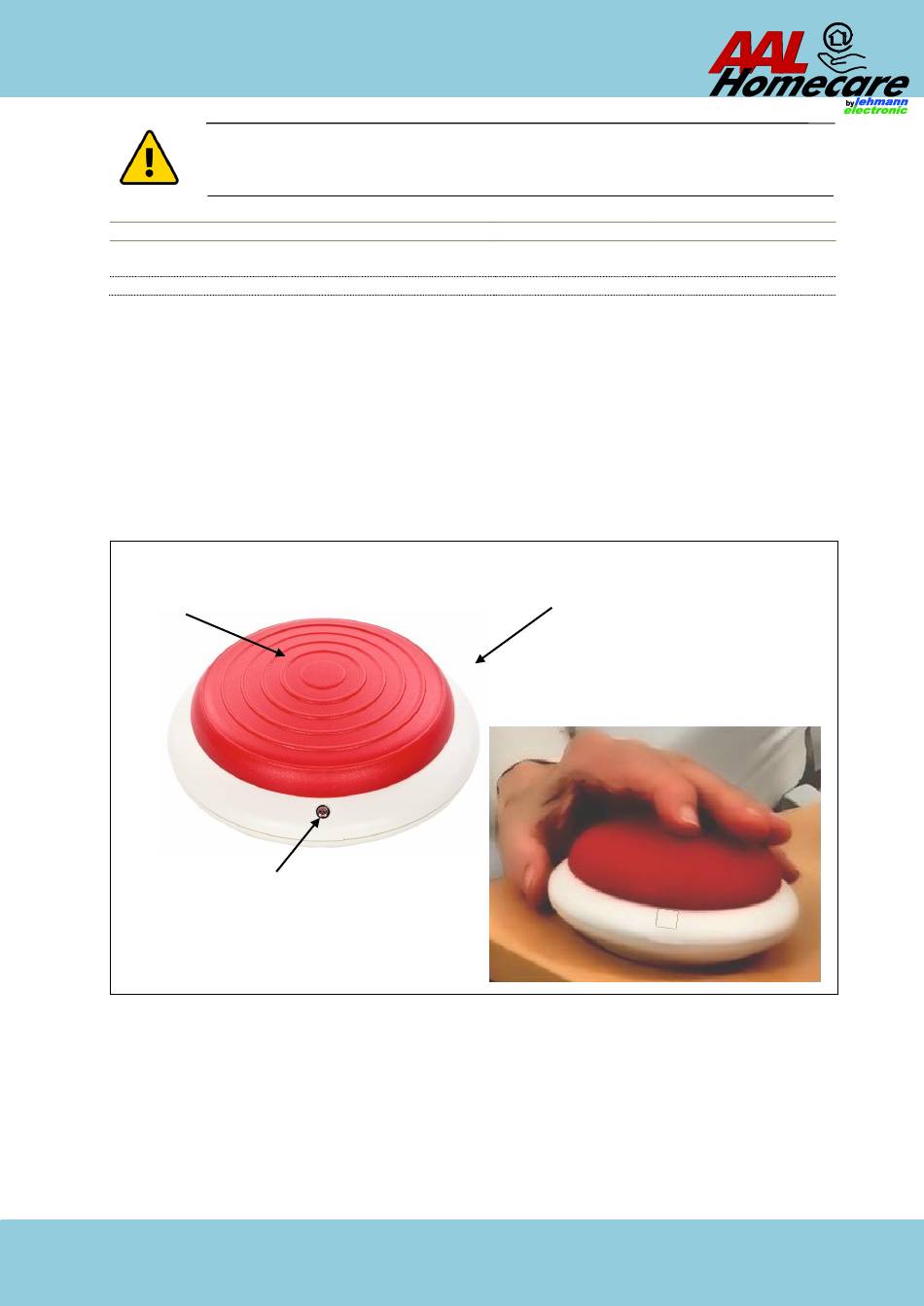

Fig. 1: large momentary call switch
Pressure-sensitive
area
Illuminates upon triggering of a call
Call: 5 flashes
"Battery low" message: 1 flash
Putting into operation
The large momentary call switch is supplied ready for operation, incl. battery. During initial putting into operation the
switch must be programmed in a suitable AAL Profiline receiver and a range test must be performed.
Programming / deleting the large momentary call switch to / from a radio receiver
The "programming" to the radio receiver required for initial putting into operation and the "deletion" from the radio
receiver that may be required if the transmitter is ported to another radio receiver can be found in the instruction
manual of the respective radio receiver.
Switch off call messages
When actuated, the large momentary call switch sends one radio call signal to the respective receiver. This call signal
can be switched off at the receiver. It is not possible to reset the call signal at the large momentary call switch.
HC-105-BA V1.08 Large momentary call switch
AAL
Homecare
INSTRUCTION MANUAL
LED indicator.
Fon +49 (0) 2208 9339170
1
Order number
HC-105
HC-105-BA
The transmitter module and the battery are
accessible after removing the rear element.
Practical example
Page 1 of 4
Fax +49 (0) 2208 9339063
1
Frequency
869.23 MHz
www.aal-homecare.com
