Summary of Contents for Wybron NEXERA 2560

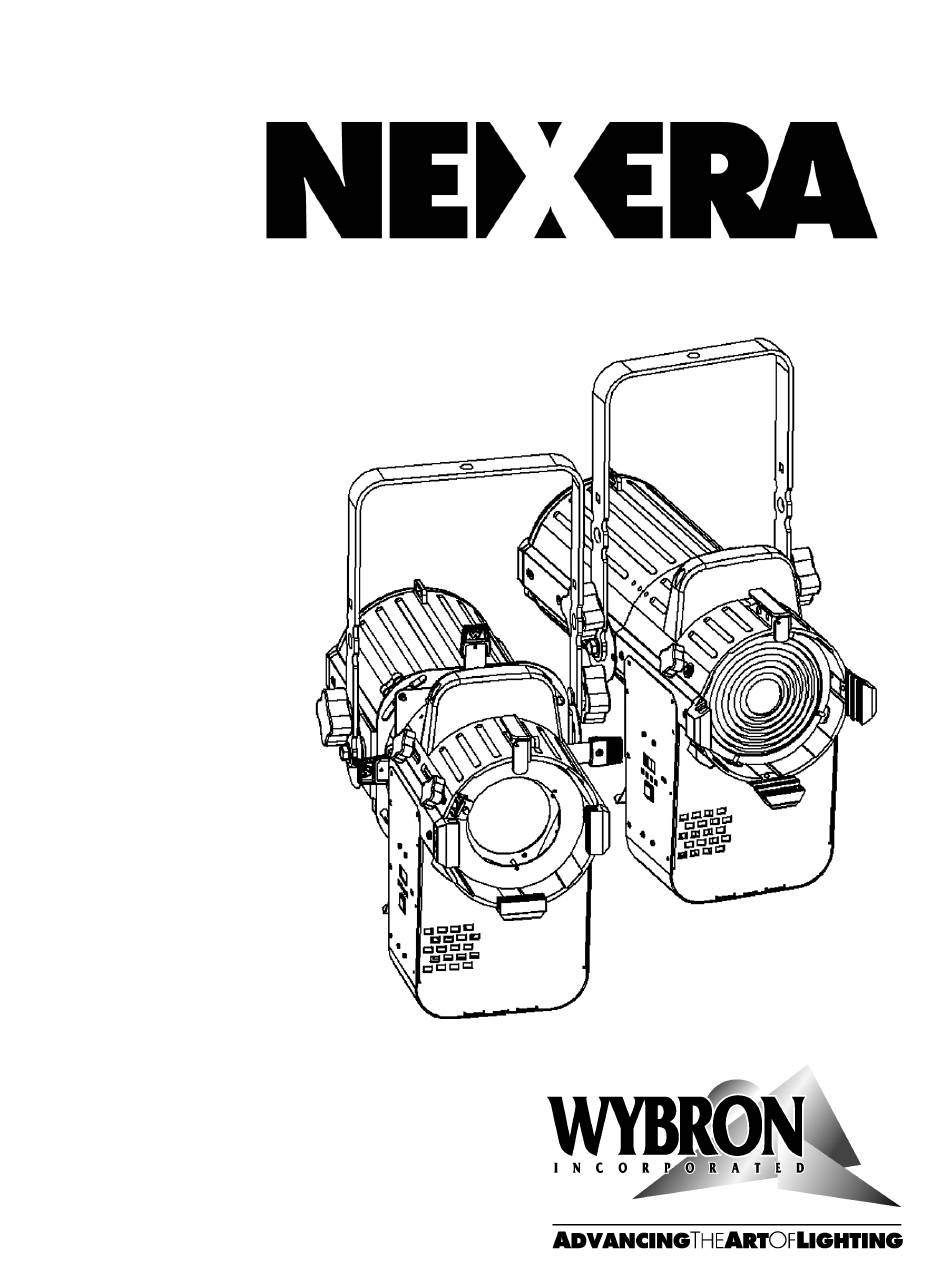

- Page 1 Color Mixing Luminaire...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Product Modification Warning ..................3 Important Safety Instructions ..................3 Quick Start ........................5 Nexera Fixture Specifications ..................6 Model 2560: Wash - Tungsten..................6 Model 2570: Profile - Tungsten..................7 Model 2580: Wash – CDM...................8 Model 2600: Profile – CDM..................9 Fixture Setup and Configuration ..................10 Installing the Lamp.....................10 Lamp Optimization.....................11 Mounting and Adjusting the Fixtures................11... -
Page 3: Product Modification Warning
Product Modification Warning Wybron, Inc. products are designed and manufactured to meet the requirements of United States and International safety standards. Modifications to the products could affect safety and render the product non-compliant to relevant safety standards. - Page 4 • has been disconnected. Wear eye and hand protection when re-lamping. Do not use any lamps other than those approved for use by Wybron and listed in this • manual. Use of any other lamp may be hazardous and may void the warranty.
-
Page 5: Quick Start
Wybron's family of affordable dichroic CMY color mixing luminaires expressly designed to complement your current equipment. Nexera wash lights and profile spots operate just like the conventional theatrical fixtures you're using already, but with the addition of Wybron CMY dichroic color mixing. -
Page 6: Nexera Fixture Specifications
CRI source (GLA/GLA) 8.72” Standard 7.5-inch accessory holders • Utilizes RAM Power Supplies • Legendary Wybron reliability • Made in the USA • Dimensions: Height (with yoke attached): 551.82 mm / 21.73 inches Width (with yoke attached): 270.64 mm / 10.65 inches Length (with yoke attached): 482.35 mm / 19.092 inches... -
Page 7: Model 2570: Profile - Tungsten
• CRI source (GLA/GLA) Standard 6.25-inch accessory holders • Utilizes RAM Power Supplies • Legendary Wybron reliability • Made in the USA • Dimensions: Height (with yoke attached): 551.82 mm / 21.73 inches Width (with yoke attached): 301.88 mm / 11.86 inches Length (with yoke attached): 484.18 mm / 19.06 inches... -
Page 8: Model 2580: Wash - Cdm
150W compact CDM light source • Standard 7.5-inch accessory holders • Utilizes RAM Power Supplies • Legendary Wybron reliability • Made in the USA • Dimensions: Height (with yoke attached): 551.82 mm / 21.73 inches Width (with yoke attached): 270.64 mm / 10.65 inches Length (with yoke attached): 482.35 mm / 19.092 inches... -
Page 9: Model 2600: Profile - Cdm
150W compact CDM light source • Standard 6.25-inch accessory holders • Utilizes RAM Power Supplies • Legendary Wybron reliability • Made in the USA • Dimensions: Height (with yoke attached): 551.82 mm / 21.73 inches Width (with yoke attached): 301.88 mm / 11.88 inches Length (with yoke attached): 484.18 mm / 19.06 inches... -
Page 10: Fixture Setup And Configuration
Lamp and lamp mounting surfaces are hot! Allow lamp to cool before replacing. Lamp Specifications: Note: Wybron supplies and approves only Philips® Broadway™ P3 Series tungsten halogen lamps for use in Nexera tungsten luminaires. Lamp socket / base: G9.5 Part #... -
Page 11: Lamp Optimization
Lamp Optimization The Nexera lamp position system consists of four knobs. This system allows changes made to the Z-axis to occur without disturbing the X \ Y-axis settings. Turn on Nexera and aim at a flat surface. Use the three X \ Y axis adjustment knobs to center the lamp in the reflector. -
Page 12: Attaching Accessories To The Front Accessory Holder
Attaching Accessories to the Front Holder Nexera can accept up to two standard accessories. (7.5” for the wash, 6.25” for the profile) Accessories Retaining are safely held in place with a standard spring-loaded latch latch. From the front of the fixture push the accessory retaining latch to the right. -
Page 13: Nexera And The Ram System
Note: Nexera is compatible with all RAM Power Supplies equipped with software version 3.11 or higher, and set to CR2 mode. The most recent power supply software version can be downloaded from www.wybron.com. The RAM system is not compatible with the Forerunner system. -
Page 14: Head-Feet Restrictions
Head-Feet Restrictions Head-Feet is defined as “the sum of cable lengths from each Nexera color module to a single power supply output”. The Head-Feet parameter is a method of accounting for the voltage drop in the power / signal cable caused by the current drawn by each color module. -
Page 15: Dmx Setup And Operation
DMX Setup and Operation Controls and Indicators Nexera has controls and indicators as follows: A three character seven-segment display 4 push buttons: Menu, (+), (-), and Enter Power (red) and signal (green) indicator LED’s The seven-segment display shows the channel number (c01 – c46) and the speed mode (hi S –... -
Page 16: Menu Tree And Navigation
Please see the RAM Power Supply user manual for instructions on setting the power supply start channel. A copy of the manual in .pdf format is available at www.wybron.com. To change Nexera’s start channel, press the Select button until the display shows cXX, where XX is a number between 01 and 46. -
Page 17: Display Messages
Display Messages Displayed for 2 seconds after power up, indicates the version (F) and revision (9) of software installed in the unit. Indicates that the unit is initializing the dichroic filter positions. Indicates the starting channel Nexera will operate on. Channel number flashes when changed. -
Page 18: Service
Service Lamp Replacement Disconnect fixture from line voltage before replacing lamp. Lamp and lamp mounting surfaces are hot! Allow lamp to cool before replacing. Refer to the table on page 10 for recommended replacement lamps. Disconnect fixture from AC power. ... -
Page 19: Cleaning The Color Module
Cleaning the Color Module Remove the color module from the front barrel by removing four screws indicated in the figure. Use a DMX source and a RAM Power Supply to command all color filters to 0% DMX. Using the DMX source command the magenta filter up into the color module aperture so the top of the filter is at the top of the aperture. -
Page 20: Replacing Fuses
The unit was commanded to shut down at the power supply. Cycle power at the unit. SEr Err The serial number was erased. Most likely occurred during reprogramming, call Wybron technical support. EEP Err Nexera is unable to store channel and mode information in non-volatile memory. -
Page 21: Reprogramming Via Avr Isp Port
6-pin cable on the programmer. Connect the ISP programmer to the computer’s serial port and install AVR Studio. Download the most recent software revision for Nexera from www.wybron.com. With the Nexera fixture and color module powered down connect ISP programmer to Nexera via the 6-pin ISP cable. - Page 22 Click Tools, STK500/AVRISP/JTAGICE, STK500/AVRISP/JTAG ICE… as shown below After the AVRISP window opens check that the ISP programmer was detected at the bottom of the AVRISP window as shown below.
- Page 23 If the ‘Preserve EEPROM’ fuse is not check marked, Nexera’s serial number will be erased during reprogramming and the display will flash “SER Err” when run. Contact Wybron technical support to restore erased serial numbers. Click on the ‘Program’ tab of the AVRISP window.
- Page 24 In the middle section of the AVRISP window marked ‘Flash’ click on the “ .. “ button to browse to the .hex file previously downloaded from www.wybron.com. Browse to the file and click ‘Open’. The path in the ‘Flash’ section of the AVRISP window now points to the .hex file to be programmed into Nexera.
-
Page 25: Appendix 1 - Color Table
Appendix 1 Color Table DMX decimal DMX% Cyan Magenta Yellow Cyan Magenta Yellow Color # Color Name Chan 1 Chan 2 Chan 3 Chan 1 Chan 2 Chan 3 ---- NO COLOR G110 DARK ROSE G120 BRIGHT PINK G130 ROSE G155 LIGHT PINK G160... - Page 26 L117 STEEL BLUE L118 LIGHT BLUE L124 DARK GREEN L126 MAUVE 100% L128 BRIGHT PINK L132 MEDIUM BLUE 100% L161 SLATE BLUE L179 CHROME ORANGE 100% L180 DARK LAVENDER L181 CONGO BLUE 100% L201 FULL CT BLUE L203 1/4 CT BLUE L204 FULL CT ORANGE BASTARD AMBER...
-
Page 27: Warranty Information
Warranty Information WYBRON, INC. warrants to the original owner or retail customer that for a period of one year from date of delivery of a portable system or energization of a permanently installed system (up to a maximum of 18 months from delivery) its products will be free from defects in materials and workmanship under normal use and service.
