w i t h A C C U b a t t e r y d r i v e a n d
Necessary materials
Fretsaw with metalworking blade
drills. dia. 3, 5, 6, 7, 10
Machine vice with soft jaws
Soldering iron, solder
Side cutters
Wire strippers
Combination pliers
Mole grips
Screwdriver
Spanner 5,5
Rivet gun
Centre punch
Sharp pencil
Ruler
Set square
Insulation tape
D110693#2
110.693

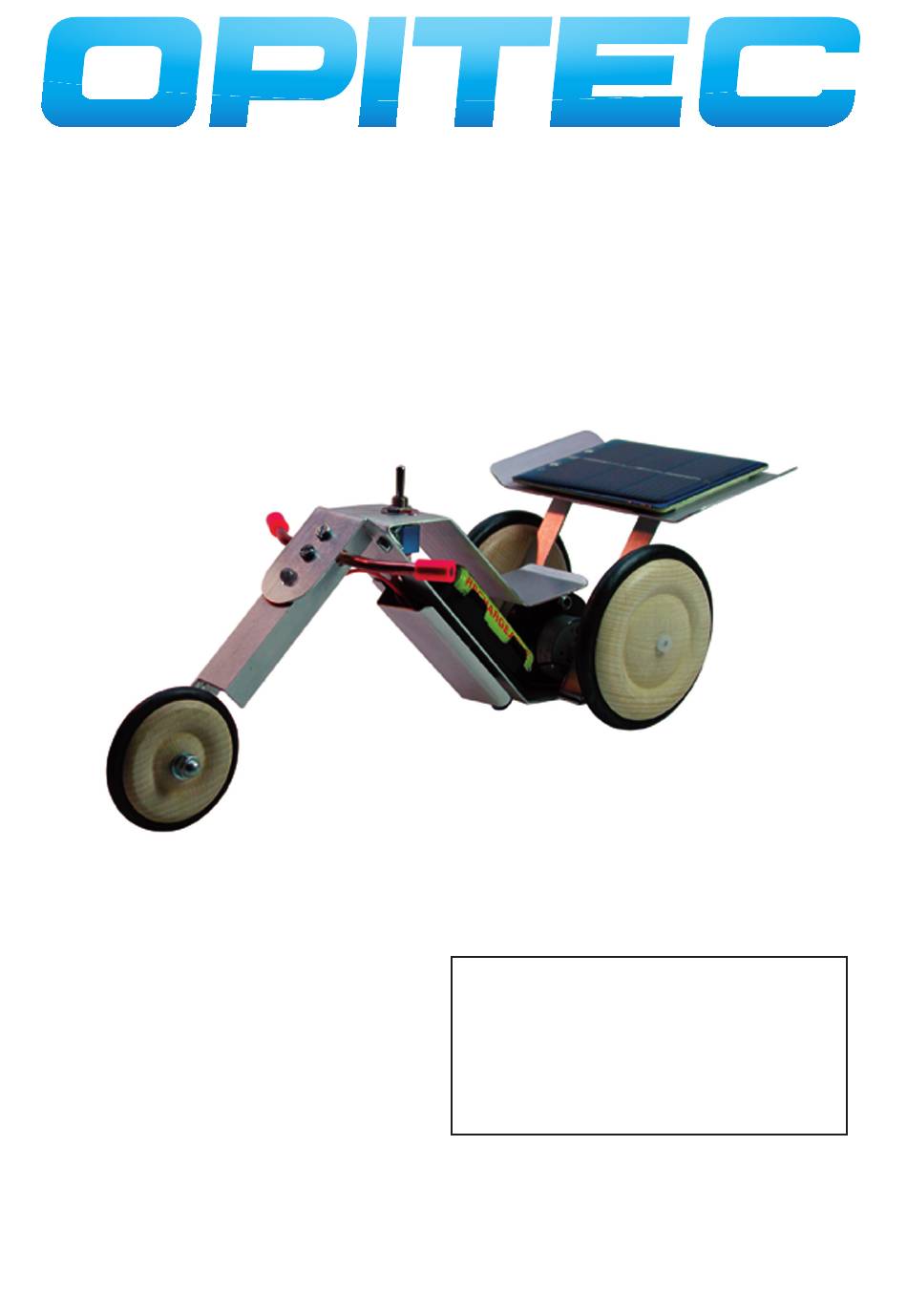

S o l a r T r i k e
L E D l i g h t i n g
Please Note
The OPITEC range of projects is not intended as play
toys for young children.They are teaching aids for young
people learning the skills of Craft, Design and Technolo-
gy.These projects should only be undertaken and tested
with the guidance of a fully qualified adult.
The finished projects are not suitable to give to children
under 3 years old. Some parts can be swallowed. Dan-
ger of suffocation!
1
Advertisement
Summary of Contents for Opitec 110.693
- Page 1 Fretsaw with metalworking blade drills. dia. 3, 5, 6, 7, 10 Please Note Machine vice with soft jaws The OPITEC range of projects is not intended as play Soldering iron, solder toys for young children.They are teaching aids for young Side cutters...
-
Page 2: Parts List
INSTRUCTIONS PARTS LIST Quantity Size Descripton Part Aluminium sheet 200x200x1 Metal part Aluminium section 100x16,5x10x1,5 Fork Welding rod 200x2 Rear axle Welding rod 200x4 Steering Wooden wheel /tyre ø 43mm dia Front wheel Wooden wheel /tyre ø 63mm dia Rear wheel Solar cell 80x60 Power source Gear box... - Page 3 INSTRUCTIONS Step 3 Step 2 Use a pair of mole grips to hold the individual parts when Saw out all the aluminium metal parts according to the plan. drilling ( Drills 3,5,6,7,10 mm) Finally countersink the holes Remove the burr from the rough edges with a file lightly to remove any burr.
- Page 4 INSTRUCTIONS vor dem Bohren die Mitte markieren!! Constructing the front axle and steering Step 6: Mark 30mm with a pencil on the aluminium on the U section (2). Carefully saw the section as shown in the dra- wing as shown so that the left side is left .
- Page 5 INSTRUCTIONS Dia.12 Dia.11 Dia.11a 11.Shorten the welding rod (3) to 95mm and Note! remove burr from the ends. Place this gears Assemble the gear box (8) using the above carefully 12. Rivet the two supports in place on welding rod ( rear axle ). as it can break ! the back of the trike.
- Page 6 INSTRUCTIONS 19. The rear lights ( Led red, 11 ) are inserted through the 5mm hole Dia. 19 in the rear of the frame. Please note ! If its difficult to solder the LED in place the gearbox can be mo- ved.
- Page 7 90° INSTRUCTIONS Bending pattern M 1:1 90° cable cover supports 1 and 2 Motor fixing Schottky Schalter weiß Diode Spannungs- wandler Solar- zelle Akku Spoiler Circuit diagram Schottky switch Diode Voltage Anode = regulator Solar Long =+ Akku cell Cathode= Short = - white Solder connection with...
- Page 8 D110693#1...
- Page 9 INSTRUCTIONS Pattern for the base frame(a) Scale 1:1 D110693#2...
- Page 10 D110693#1...
- Page 11 INSRUCTIONS Pattern for cover (b) Scale 1: 1 Pattern for the forks Scale 1: 1 Pattern for the clip and motor fixing ( f+e) Scale 1: 1 D110693#2...
- Page 12 D110693#1...
- Page 13 INSTRUCTIONS Pattern for the supports ( g+h) Scale 1:1 Pattern for the spoiler Scale 1:1 Pattern for the steering Scale 1:1 Pattern for the cover (d) Scale 1:1 27,5 D110693#2...
- Page 14 D110693#1...
- Page 15 INSTRUCTIONS Cutting pattern Scale 1:1 D110693#2...
