A-TECH MES SQA-Vb Technical Bulletin

Sperm analyzer

Advertisement

Quick Links

Problem  description:
The  lower,  operational  screen  of  the  SQA  is  blank,  but  lit  OR  it  displays  black  lines  on  a  yellow
background.
Procedure
STEP 1:
1. Re‐install the SQA‐V software.
2. If the software is successfully installed and the screen is still blank – go to Step 2
3. If the software was not installed successfully based on:
a.
ACK error:  This is a FLASH MEMORY failure. The SQA‐V must be sent back to MES LTD for repair as an RMA.
b. TIME OUT error:  This is a communication failure between the SQA and the PC.  Verify that the SQA‐V is
connected to the correct COM port on your PC and also that the COM port is defined properly.
If the port is functioning: Press the SERVICE button while sequentially switching the device on and off twice. Try
c.
to install the software again. If the installation fails again –go to Step 2.
STEP 2:
1. Make sure that the SQA‐V is turned off and
dissconnected from any source of electricity.
2. Open the SQA‐V.
3. Verify that the harness that connects the
user screen and the main board is in the
correct position and is properly connected
(see Figure 1).
4. If the problem persists go to Step 3.



STEP 3:
1. Verify that the harness connecting  the main
board to the PC is properly connected (RS232
cable).
2. Tighten the harness connector at location J5
on the main board (see Figure 2).
3. If the problem persists go to Step 4.
STEP 4:
1. Verify that the Main board processor is positioned according to the instructions in Appendix 1 of this bulletin.
2. Replace the processor if the problem persists.
3. If the screen is still blank after replacing the processor‐ go to Step 5.
STEP 5:
1. Replace the LCD operational screen according to the instructions in Appendix 2 of this bulletin. The instructions can also
be found on Page 19 in the SERVICE MANUAL.
2. If the problem persists with the new screen – send the SQA back to the manufacturer (MES) for a repair RMA.

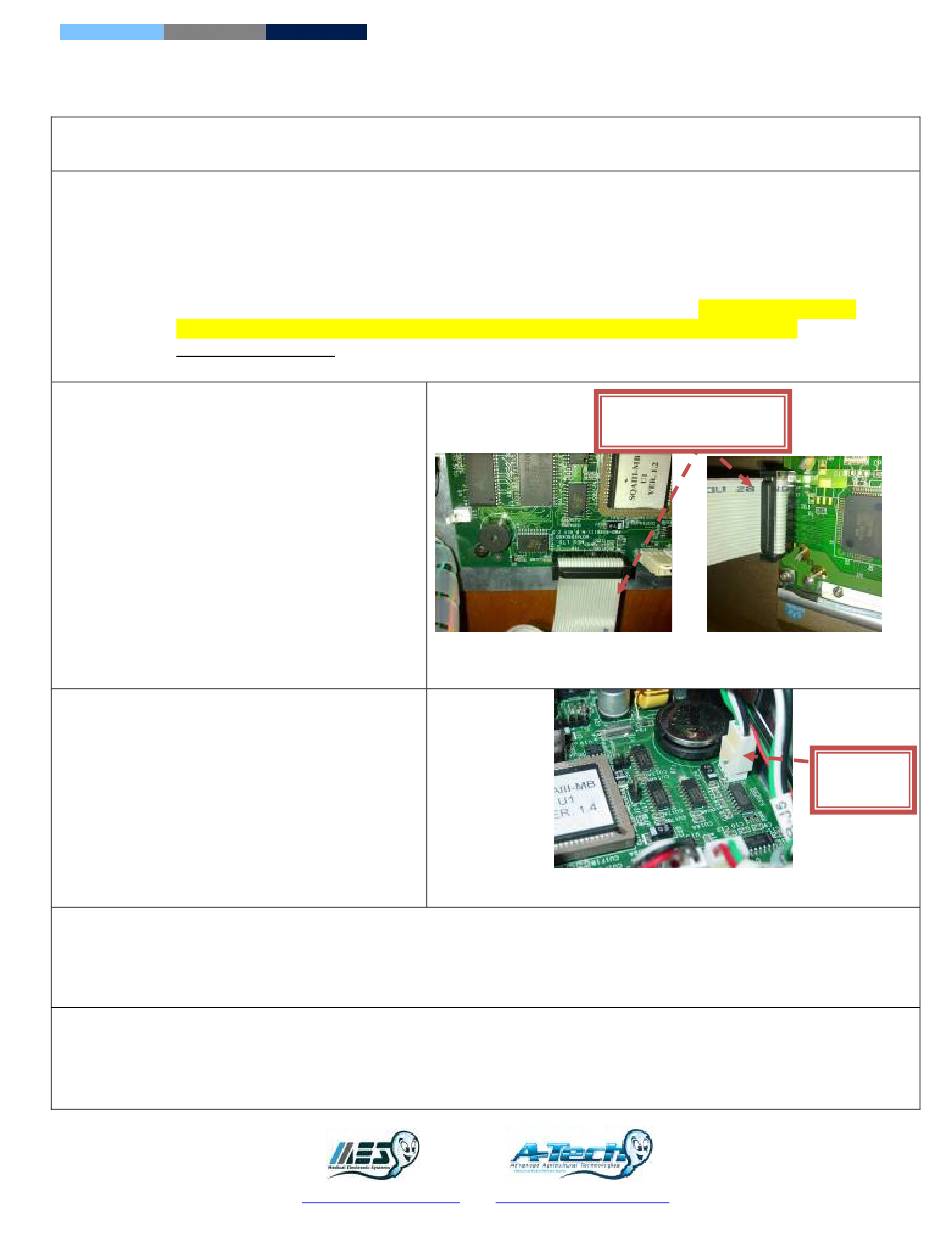

File Name: Tech Bulletin_SQA_Blank Screen_12_OCT_10
Technical Bulletin‐ Blank Lower Operational Screen
Applies to the following:  ALL SQA‐V (V, Vb, Ve, Vp and Vt)
Issue date:  October 12, 2010




www.mes-global.com

Note the alignment of
the red line on the cable

MB side

Figure 1: Verify the flat cable is properly connected
Figure 2: J5 connector on the main board
www.a-tech-global.com



LCD screen side
J5
connector


Page 1 of 3


Advertisement

loading
Need help?

Need help?

Do you have a question about the MES SQA-Vb and is the answer not in the manual?

Questions and answers

Summary of Contents for A-TECH MES SQA-Vb

  • Page 1   Figure 1: Verify the flat cable is properly connected  STEP 3:   1. Verify that the harness connecting  the main  board to the PC is properly connected (RS232  connector cable).   2. Tighten the harness connector at location J5  on the main board (see Figure 2).     3. If the problem persists go to Step 4.  Figure 2: J5 connector on the main board STEP 4:   1. Verify that the Main board processor is positioned according to the instructions in Appendix 1 of this bulletin.   2. Replace the processor if the problem persists.   3. If the screen is still blank after replacing the processor‐ go to Step 5.  STEP 5:   1. Replace the LCD operational screen according to the instructions in Appendix 2 of this bulletin. The instructions can also  be found on Page 19 in the SERVICE MANUAL.     2. If the problem persists with the new screen – send the SQA back to the manufacturer (MES) for a repair RMA.   www.mes-global.com www.a-tech-global.com File Name: Tech Bulletin_SQA_Blank Screen_12_OCT_10 Page 1 of 3...
  • Page 2 Dot mark on • Align the “dot” which is marked on the processor with the  the processor “Arrow” mark in the processor cavity (see Fig. 5‐6).  5. Slightly press the center of the processor with an index finger  to re‐seat it into the correct position (Fig. 7).    Fig. 5‐6: Align the processor in the cavity correctly      6. Close the unit and screw back in the 4 Phillips screws on the    rear Panel.    7. Connect the power cable, turn on the SQA and verify that it    passes the SELF‐TEST.          Figure 7: Re‐seat the processor www.mes-global.com www.a-tech-global.com File Name: Tech Bulletin_SQA_Blank Screen_12_OCT_10 Page 2 of 3...
  • Page 3 Appendix 2: Instructions for replacing the LCD operational screen    www.mes-global.com www.a-tech-global.com File Name: Tech Bulletin_SQA_Blank Screen_12_OCT_10 Page 3 of 3...
