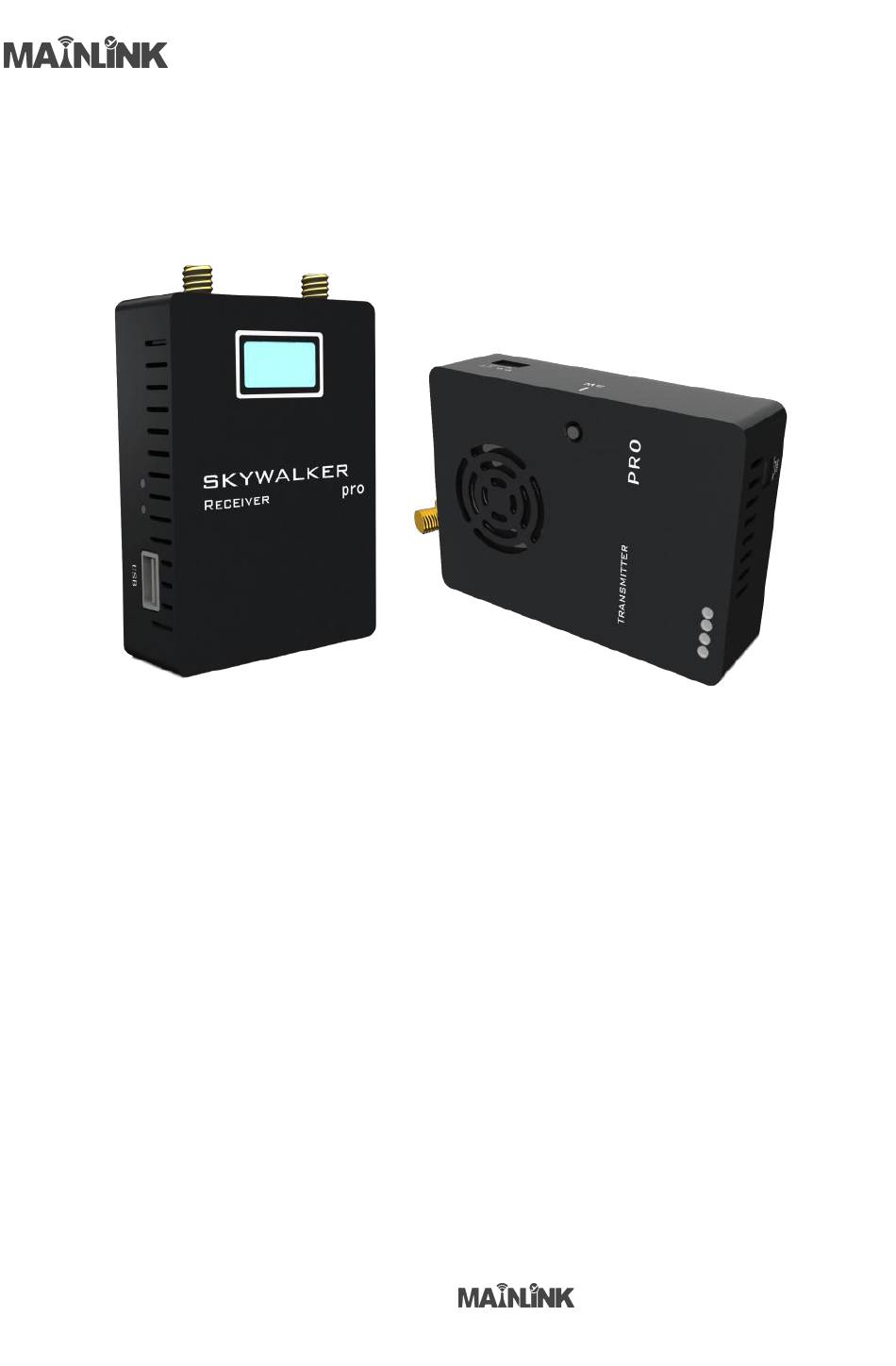

- Page 1 S1 pro WIR EL ES S HD VI DE O TRA NS MI SS IO N INTRODUCTION ／INSTRUCTION ／INSTALLATION GUIDE 版本：V2.0（2018.09）...
-
Page 2: Table Of Contents
Catalogue 1、Disclaimer----------------------------------------------------------------------1 2、Announcement ----------------------------------------------------------------1 2.1 Installation Warning----------------------------------------------------------1 2.2 Usages warning ---------------------------------------------------------------1 3、Product profile-----------------------------------------------------------------2 4、Description ------------------------------------------------------------------2 4.1 Transmitter --------------------------------------------------------------------2 4.2 Receiver -----------------------------------------------------------------------3 4.3 Accessory----------------------------------------------------------------------3 5、Wiring installment------------------------------------------------------------4 5.1 Carrier connection example-------------------------------------------------4 5.2 Receiver connection example-----------------------------------------------5 6、Usages -------------------------------------------------------------------------5 6.1 Channel settings --------------------------------------------------------------5 6.2 Video record ------------------------------------------------------------------6 7、Working indicator-------------------------------------------------------------6 7.1 Transmitter indicator----------------------------------------------------------6 7.2 Receiver indicator-------------------------------------------------------------6... -
Page 3: 1、Disclaimer
1. Please make sure that all connecting wires are fastened and connected correctly. 2. There is no entry into any foreign body (e.g. liquid,sand,etc.) 3. S1 pro needs 15 seconds to power on, after that, can transmit video. 第 1页... -
Page 4: 3、Product Profile
S1 pro is the upgraded version of S1, includes transmitter and receiver. Adopted by H.264 video decode, CODFM modulation technique etc., S1pro can transmit video in poor condition. S1 pro Technological advantage: Bandwidth reaches 8M, Transmission distance reaches 5~10km;... -
Page 5: Receiver
A1：Power&video signal indicator 6、Antenna interface（SMA） A2：CH1 channel indicator A3：CH2 channel indicator A4：CH3 channel indicator 3、CVBS（AV）signal output interface Receiver 1、USB interface 4、Antenna interface 2、Power interface 5、OLED display screen B1: VCC（9V~28V） 6、CH Channel switching switcher B2:GND 7、REC Recording switch 3、HDMI Output interface Receiver antenna Transmitter antenna Antenna... -
Page 6: Accessory
Accessory HDMI cable ×1 2pin power line×2 2pin CVBS cable×1 Installation and wiring Take Muti-rotor UAV for an example: Carrier connection example ： Fix the transmitter on the suitable Station of drone(by 3M strap), and then install antenna with vertical down. Next, camera and transmitter connect with HDMI cable (or with CVBS cable),and then... -
Page 7: Receiver Connection Example
2.Make a proper planning about frequency of all wireless equipment on UAV. Otherwise it will cause the equipment to be unable to use normally. Usage S1 pro achieves long distance HD video transmission, suitable for high-real-time applications in point-to point transmittion. Please order in specific demand. Channel setting The transmitter and receiver are in the same channel by default. -
Page 8: Video Record
Video record （Receiver） Wireless HD video receiver support record video. The steps are as follows: 1.Insert USB device, HDMI of receiver output “USB device is inserted”. 2.Start video recording by pressing receiver “REC” ; 3.To stop recording, please press “REC” again. After finishing recording, video is automatically saved to USB storage device. -
Page 9: 8、Specification
Specification Product HD video transmitter Model MK-V0105 Frequency 300~900MHz(can be customized）* Antenna interface 50Ω SMA female head Modulation COFDM 2K Subcarrier Modulation QPSK，16QAM Video Bit Rate 3~12Mbps Bandwidth 8MHz Latency About 300ms Transmission Compressed Format H.264 Resolution 1080P @60/50/30（downward compatibility） Voltage DC9~28V Audio Input Interface... -
Page 10: 9、Faq (Frequently Asked Question)
FAQ (frequently asked question) Questions Possible reason Solution ●Check whether the transmitter is properly ●Unturned transmitter installed and powered on ●Close input video source, restart transmitter, ●Abnormal decode Transmitter until signal of receiver is normal, then turn on transmitter, is closing down Output No signal video source again ●Receiver... - Page 11 ●Close other wireless devices (data link), if ●Wireless transmission devices transmission distance is longer, it might interfere with other wireless shows the interference exist, so please use devices suitable frequency ●Severe occlusion between ●Place the antenna of receiver on heights transmitter receiver until without any obstruction...
