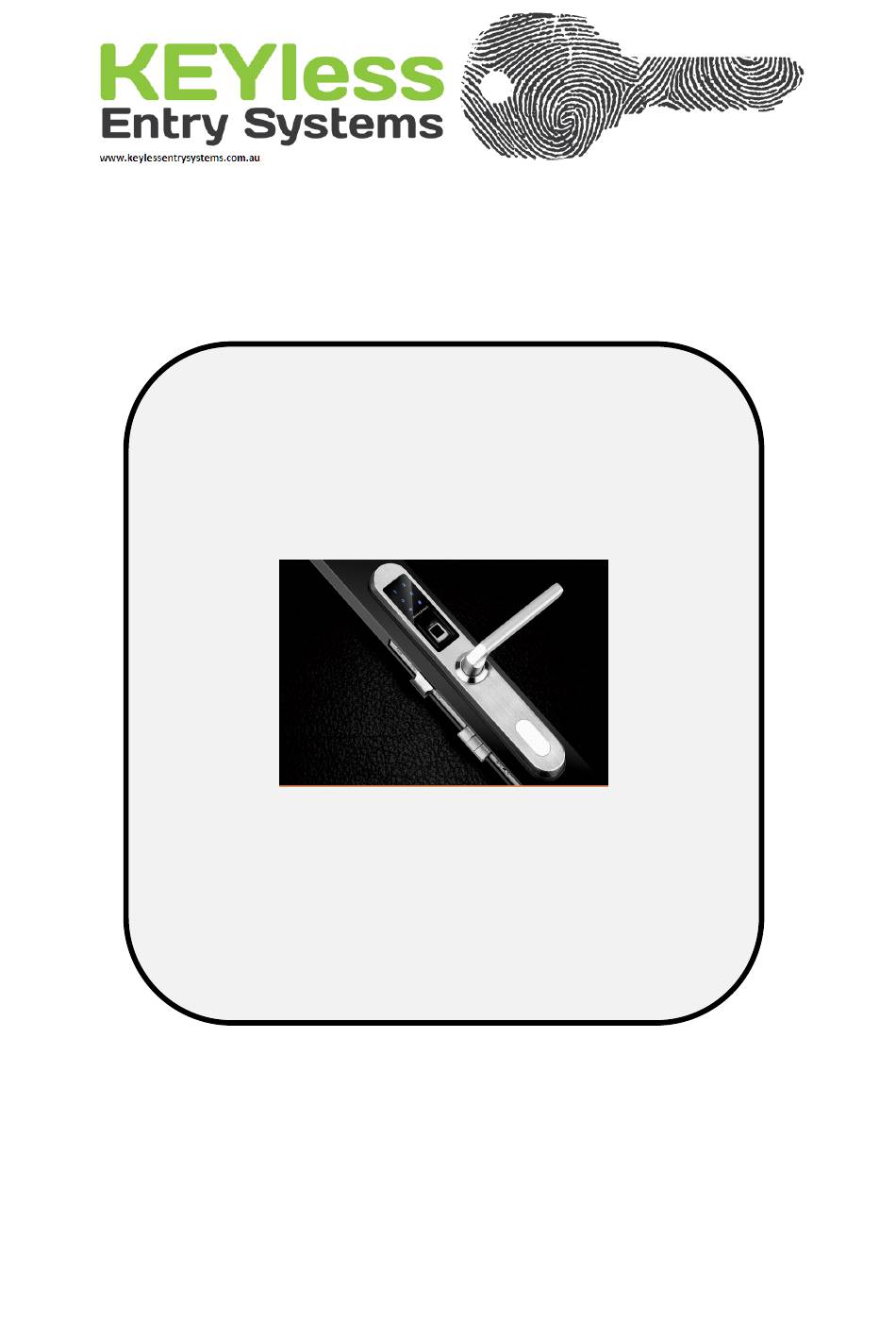

Page 1: Installation Guide
Installation Guide (KES-180/280) Page 1 of 6... - Page 2 Adjust the handle direction 1. Check the door opening direction and adjust the lock handle direction as well as the mortise direction. Fitting Template 2. Find the appropriate height position and place the fitting template on the door edge, then drill the mortise hole according to the template.
- Page 3 3. Drill holes on both sides of the door according to the template. 4. Install the mortise and cylinder. Page 3 of 6...
- Page 4 Place the spindle into the front handle and attach the split pin. The pin must be split and curved after being pushed through the hole. Note: the spindle direction must be the same as the handle direction. (The arrow indicates a mark towards the handle) Page 4 of 6...
- Page 5 Assemble the rubber on both lock panels. 7. Mount the lock panel and connect the cable Page 5 of 6...
- Page 6 8. Load battery and check the lock setting as per the user manual. 9. Check Mechanical Keys. The key is a backup. Ensure the key turns freely, and then always keep in safe place. Page 6 of 6...
