Summary of Contents for Mister Hitches MHBC4F

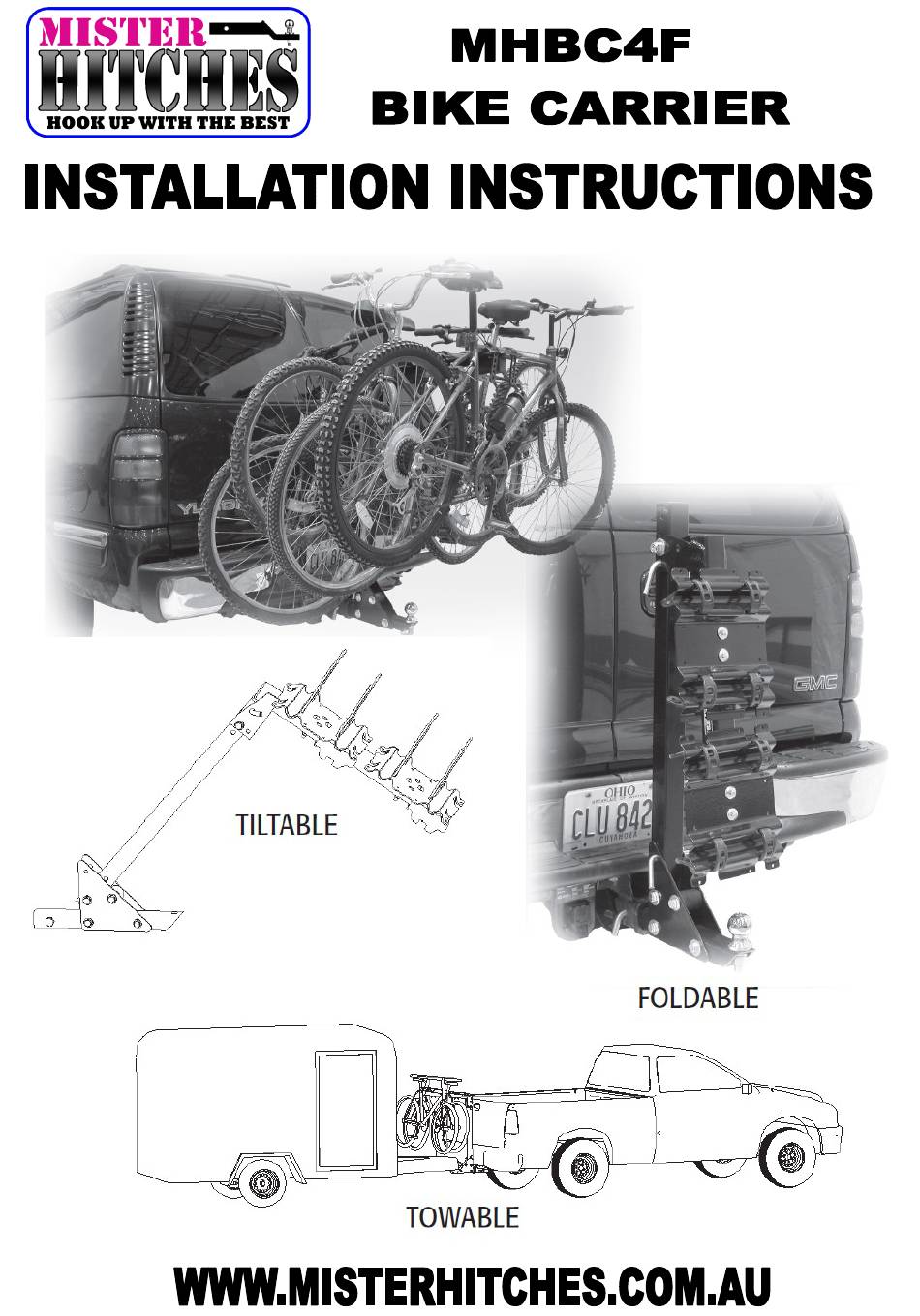

- Page 1 PAGE 1...
- Page 2 Description 2. Assemble angle plates (6) and rubber stop (7) using 1/2” - 13x3.5 screws (8) , 1/2” flat washers (9), 1/2” - 13 nuts Four bike capacity 55kg, foldable, lockable, towable up to (10) as shown in Fig. 2. Do not completely tighten nuts at this 1600kg G.T.W.
- Page 3 5. Wipe troughs of the mounting plate with alcohol to provide 7. Install assembled mounting plates onto top support (16) a clean surface for adhesive on rubber strips (13). Remove using 3/8” - 16x3 screws (17), 3/8” flat washers (18), 3/8” - 16 protective paper and apply rubber strips (13) on mounting nuts (19), 3/8”...
- Page 4 Towing Instructions 10. Install stabilizers (20) in desired locations as shown in When towing observe the following safety precautions. Fig. 10 using 1/4” - 20x1.5 screws (21), 1/4” flat washers (22), 1. Do not overload, maximum Camper/Trailer G.T.W. 1/4” - 20 nuts (23). 1600kg, T.W.
