OTC 1758 Operating Instructions

SPX Corporation
655 Eisenhower Drive
Owatonna, MN 55060-0995 USA
R
Phone: (507) 455-7000
Tech. Serv.: (800) 533-6127
Fax: (800) 955-8329
Order Entry: (800) 533-6127
Fax: (800) 283-8665
International Sales: (507) 455-7223
Fax: (507) 455-7063

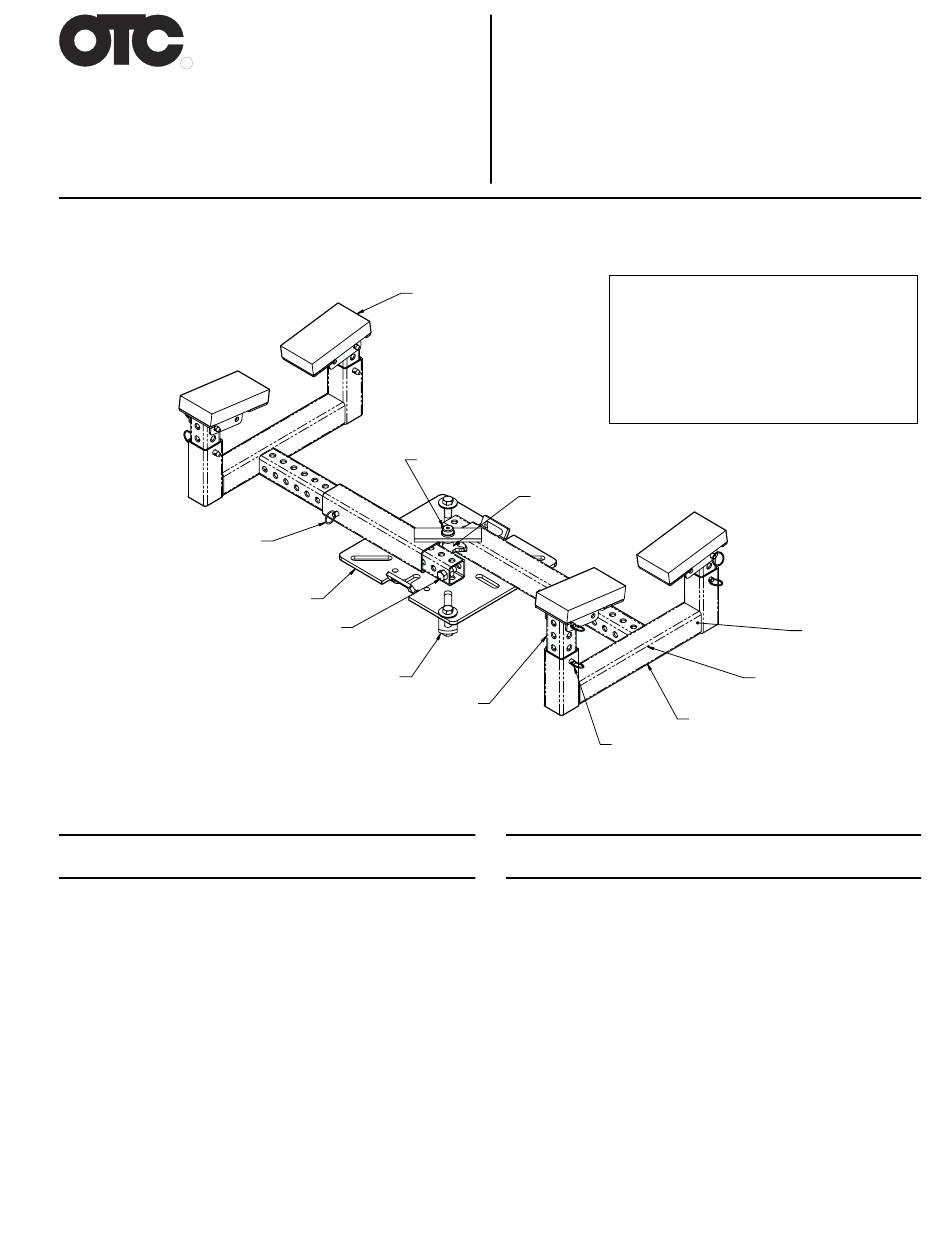

Item Part
No. No. Qty.
1 525416 4 Pad
2 214935 1 Hex Socket Hd. Shoulder Screw
3 10249 1 Lock Washer
4 529451 1 Gear / Sprocket Assembly
5 16473 1 Decal
6 526842 1 Logo / Warning Decal
7 525419 2 Leg
8 18658 9 Cotterless Hitch Pin
9 525420 4 Tube
10 10206 2 Nut
*
11 19835 2 Bolt
*
12 533838 2 Metal Strap
*
13 19874 1 Hex Hd. Cap Screw
These parts are used only if you mount the fuel
*
tank handler to an OTC 1728 transmission jack head.
© 2005 SPX Corporation
Fuel Tank Handler
1
2, 3
8
16
13, 14, 15
10, 11, 12, 17
Description
(7/16-14 x 1")
Parts List &
Operating Instructions
for:
Refer to any operating instructions included with the
product for detailed information about operation, testing,
disassembly, reassembly, and preventive maintenance.
Items found in this parts list have been carefully tested
and selected by OTC. Therefore: Use only genuine
OTC replacement parts.
Additional questions may be directed to our Technical
Service Department.
4
9

Parts List

Item Part
No. No.
14 10206
15 10248
16 525414
17 10232
*
Parts Included but Not Shown
104031
526847
10080
10208
10052
10204
Form No. 526843
6
7
8
Qty. Description
(7/16-14")
1 Hex Nut
(for 7/16" bolt)
1 Lock Washer
1 Base
2 Washer
1 Warranty/Repair Station List
1 Nylon Strap Assembly
2 Hex Hd. Cap Screw
2 Hex Nut (1/2-13)
2 Hex Hd. Cap Screw
(3/8-16)
2 Hex Nut
Rev. C, November 29, 2007
1758
5
(1 inch wide)
(1/2-13 x 1.250")
(3/8-16 x 1.250")
Sheet 1 of 2
