Summary of Contents for Numatic WVD 570

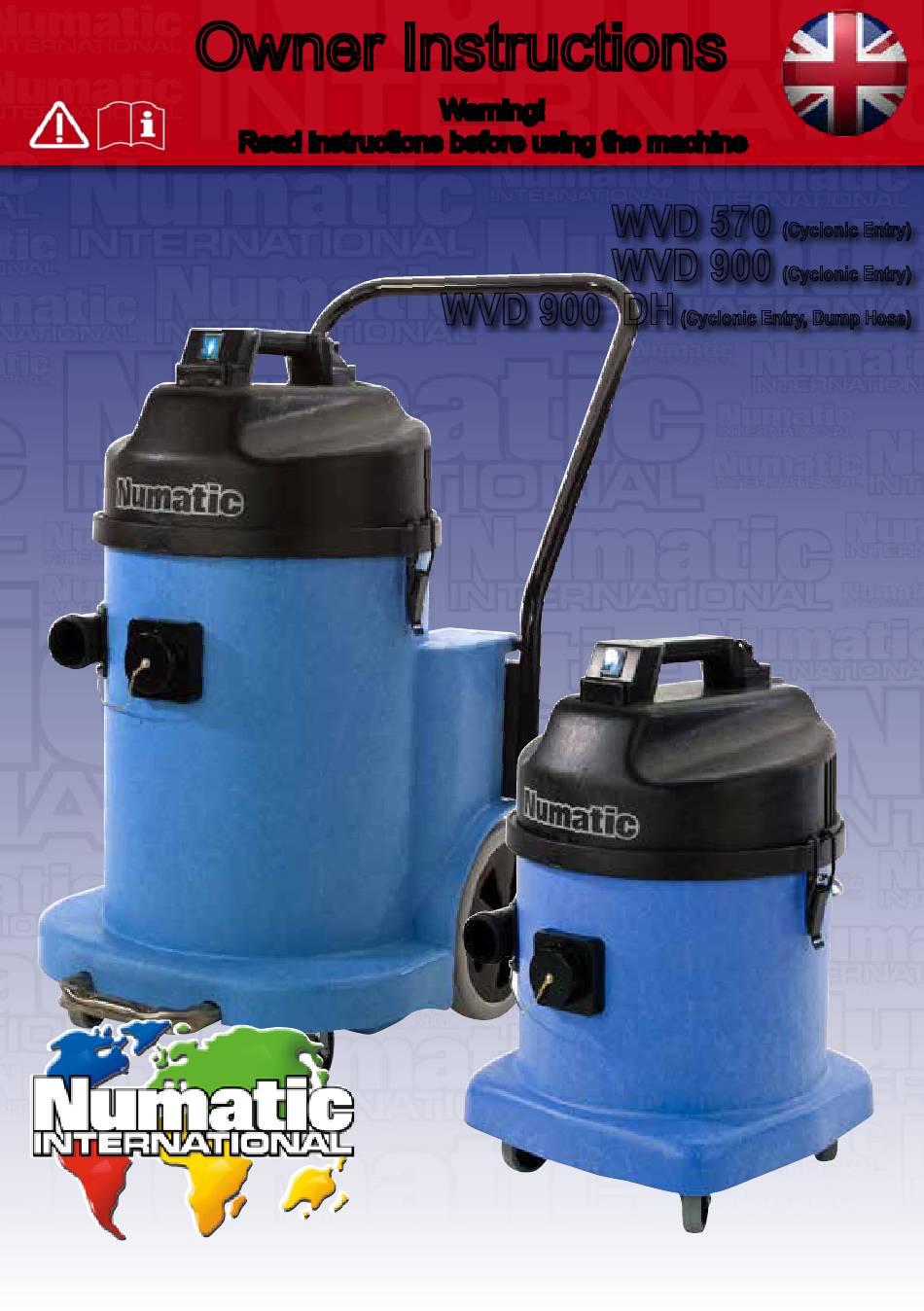

- Page 1 Owner Instructions Warning! Read instructions before using the machine WVD 570 (Cyclonic Entry) WVD 900 (Cyclonic Entry) WVD 900 DH (Cyclonic Entry, Dump Hose) www.numatic.com...
- Page 2 607241 Kit BS8 For extra tools see our NUMATIC INTERNATIONAL CleanCare catalogue Discuss your specific kit requirements with Numatic Specialised Department. 01460 269401 Assembly Assemble wands. Check blanking cap is fitted to the middle Fit the hose to the side entry.
- Page 3 900 Handle Assembly...
- Page 4 Cleaning the machine (WET) WVD 570 WVD 900 WVD 900 DH (Dump Hose)
- Page 5 Cleaning the machine (DRY) WVD 570 WVD 900 NVM - 3BH NVM - 4BH...
-
Page 7: About The Machine
About the Machine Company Name & Address Model Voltage Frequency Rated Input Power Safety Critical Components Weight (ready to work) Protection Class Symbol WEEE Logo CE Mark Mains lead Machine yr/wk Serial number H05VVF 10m x 1.5 x 2core Personal protective equipment that may be required for certain operations. Ear Protection Safety Footwear Head Protection Safety Gloves... - Page 8 Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical helpline +44 (0)1460 269268. Daily Keep the machine clean, including hoses and tubes. Ensure the bag and filter are fitted.
- Page 9 • Replace any worn or damaged parts immediately. • Regularly examine the power cord, if damage is found, power cord must be replaced by a qualified person using the correct Numatic original part. • Empty dust container frequently. • Keep diffuser filter (where fitted) clean.
- Page 10 This machine can be used for wet and dry pick up. Dry Mode maintenance / fault finding If the vacuum cleaner stops working switch off and remove the plug from the wall before investigating where the fault lies. If the vacuum cleaner will not pick up any debris from the surface, switch off and remove the plug from the wall, inspect the floor tool, wands and hose for blockages, if no blockages are found, the dust bag may be full if the dust bag is not full the filter may be blocked.
-
Page 11: Warranty
Warranty... - Page 12 Name:Allyn Boyes Position: Technical Manager Signed: Date: 20/04/2016 Numatic International Limited, Chard , Somerset. TA20 2GB www.numatic.co.uk Numatic International Limited, Chard, Somerset, TA20 2GB Telephone: 01460 68600 Fax: 01460 68458 UNITED KINGDOM: www.numatic.co.uk GERMANY: www.numatic.de SWITZERLAND: www.numatic.ch FRANCE: www.numatic.fr...
