HUBBELL LIGHTING LCC6LED Series Instruction Sheet

IMPORTANT SAFETY INFORMATION. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. Follow label information
and instructions concerning Wet or Damp Locations, installation near combustible materials, insulation, building materials,
and proper lamping. Do not install in areas subject to combustible vapors or gases. Before wiring to power supply and
during servicing or relamping, turn off power at fuse or circuit breaker. All servicing or relamping must be performed by
qualified service personnel. Product must be grounded to avoid potential electric shock or other potential hazard.
Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in
compliance with the National Electrical Code and local codes. The use of accessory equipment not recommended by
the manufacturer or installed contrary to instructions may cause an unsafe condition. Do not block light emanating from
product in whole or part, as this may cause an unsafe condition. Do not allow items such as drapes, curtains, screens or
the like to come into contact with the product or to block light from the product, as this may cause an unsafe condition.
INSTALLATION INSTRUCTIONS
LCC6LED 10L-18L SERIES LED CYLINDER
CAUTION: DO NOT ATTEMPT TO MODIFY OR REWIRE FACTORY-INSTALLED WIRING ON THE FIXTURE.
SAFETY AND PROPER OPERATION OF THE FIXTURE DEPEND ON THE INTEGRITY OF THE WIRING.
PRIOR TO MOUNTING: LCC6LED Series Cylinders
are shipped with the reflector assembly pre-installed.
Always ensure that the reflector assembly is fully
secured with cylinder and has not loosened during
shipping.
TO UNLOCK:
1. Pull the reflector assembly downwards while
holding the cylinder firmly, when the spring (3) is
visible squeeze it to remove completely.
TO LOCK:
1. Squeeze two torsion spring (3) together and
insert ends into two brackets (2). Push the
reflector assembly up towards cylinder until
springs draw reflector firmly against the cylinder.
!! Caution should be taken when installing
reflector into cylinder as springs will snap into
place and fingers can be pinched !!
TO REPLACE/UPGRADE:
All reflector/light engine assemblies are supplied with
quick connects for easy access to all light engine
components and future upgrades. (For compatible
replacement part number, refer to label on reflector/light
engine assembly.)
701 Millennium Blvd • Greenville, SC 29607
With representatives offices in principal cities throughout North America.
Copyright 2018 06/26/18 , revision, All Rights Reserved - Printed in U.S.A.
Part No...........................................93058101

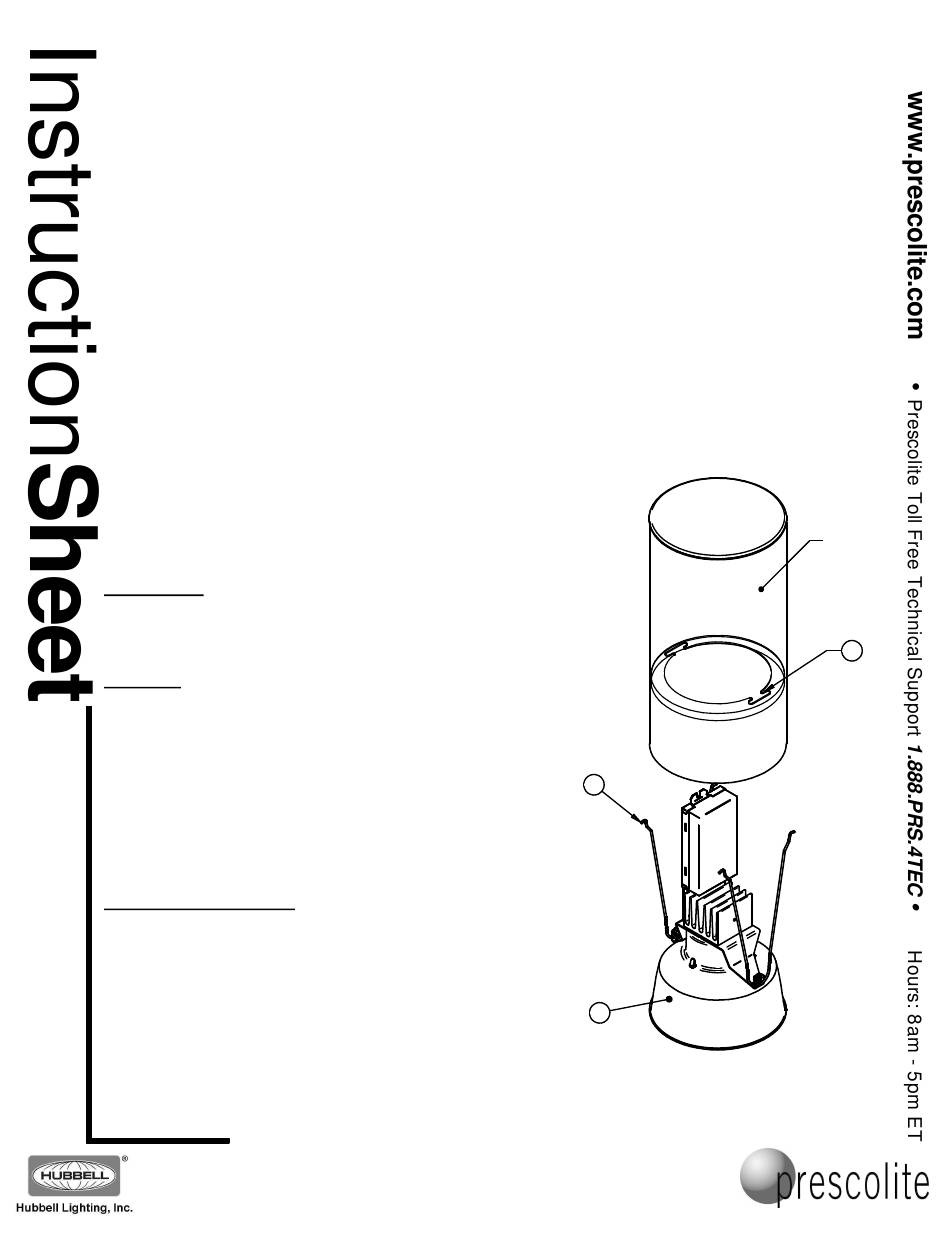

3
