Summary of Contents for LZ design FES Discharger 2

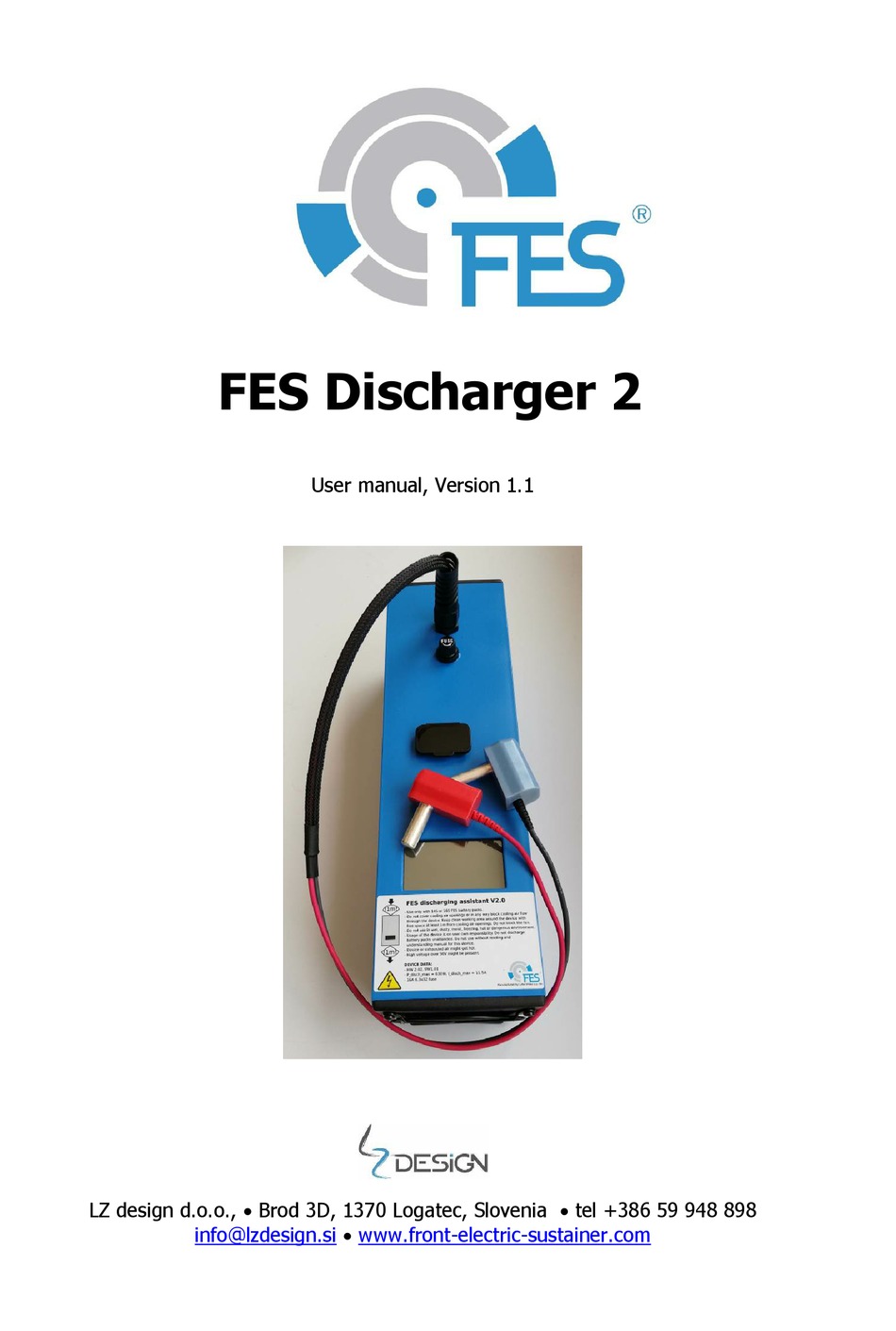

- Page 1 FES Discharger 2 User manual, Version 1.1 LZ design d.o.o., Brod 3D, 1370 Logatec, Slovenia tel +386 59 948 898 info@lzdesign.si www.front-electric-sustainer.com...
-
Page 2: Table Of Contents
FES Discharger 2, user manual v1.1 December 2019 Table of Content 1. Important notices ..................... 3 1.1 Limited Warranty ....................3 1.2 Invalid Warranty ....................3 2. Introduction ......................4 2.1 Technical characteristics ..................5 2.2 Touch LCD display ....................5 3. -
Page 3: Important Notices
This product is warranted to be free from defects in materials or workmanship for two years from the date of purchase. Within this period, LZ design will, at its sole option, repair or replace any components that fail in normal use. Such repair or replacement will be made at no charge to the customer for parts and labour, however the customer shall be responsible for any transportation and custom costs. -
Page 4: Introduction
Warning: discharging, “16S” indication must be visible on the LCD display (above SOC value). FES Discharger 2 is protected with 16 A 6.3x32 mm standard fuse in its own housing which is accessible without opening the discharger. Cooling fan 16A 6.3x32mm standard glass fuse... -
Page 5: Technical Characteristics
FES Discharger 2, user manual v1.1 December 2019 2.1 Technical characteristics FES Discharger 2 End of discharge (50% SOC) 52 V in 14S configuration / 59 V in 16S configuration Max. discharging power 425 W Max. discharging current Length of connecting cables... -
Page 6: Warnings And Safety Instructions
Note: serial) and 16S (16 cells wired in serial) FES Battery packs, due to different voltage level! FES Discharger 2 should be delivered already properly adjusted for usage with your specific FES battery packs – 14S or 16S. When connected to FES 14S Battery pack and before starting Warning: discharging, “14S”... - Page 7 FES Discharger 2, user manual v1.1 December 2019 1. Connect – connecting cable to the battery pack. FES Discharger turns ON and FES logo appears on touch LCD display. Welcome screen with FES logo 2. After a few seconds the menu with basic parameters shows up.
-
Page 8: Error Messages
“FAN ERROR” 3 s sound / 1 s pause The fan is broken or Disconnect the cables stuck. and remove the obstacle. In case of any other fault or damages, please contact LZ design directly. Page 8 of 9... -
Page 9: Revision History
FES Discharger 2, user manual v1.1 December 2019 7. Revision history August 2019 Initial release, user manual v1.0 December 2019 Updated and more detailed information, user manual v1.1 Page 9 of 9...
