Kopul CMX-2-V2 Quick Manual

CMX-2-V2
DSLR Solutions
XLR ADAPTER
2-Channel
Thank you for choosing Kopul.

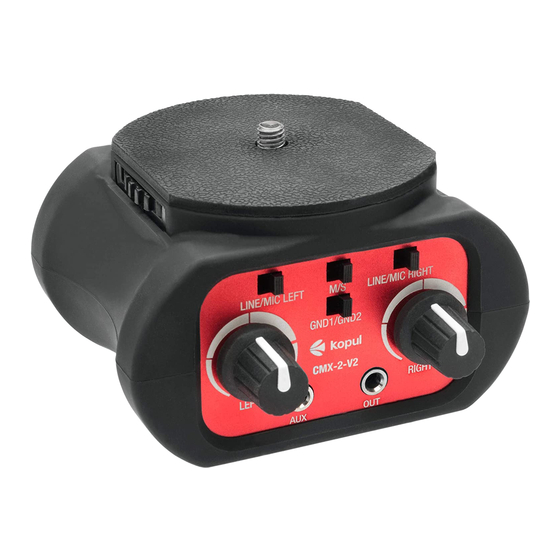

The CMX-2-V2 is a compact and lightweight
two-channel XLR audio adapter ideal for
recording professional-quality audio from two
sources and mixing them for output to any
camera with a stereo 3.5 mm mic input. It
attaches to the base of a camera or camcorder,
and a threaded socket on its base allows for
mounting on a tripod.
Two balanced XLR input jacks accept signals
from a wide variety of mic or line sources such as
balanced microphones, wireless microphones,
preampli ers, and external audio mixers. The
input levels of each channel are easily controlled
with the dual trim control knobs. An aux input is
ideal for connecting wireless devices with a 3.5 mm
output such as a smartphone or MP3 player. The
passive design doesn't require batteries or power
for operation and ensures superb sound quality.
A ground switch (GND) prevents unwanted hum
or noise from affecting the sound.
