Report No： 08AS066R-RF-US-P10V01
I600 WiMAX MODEM
(M/N: I600)

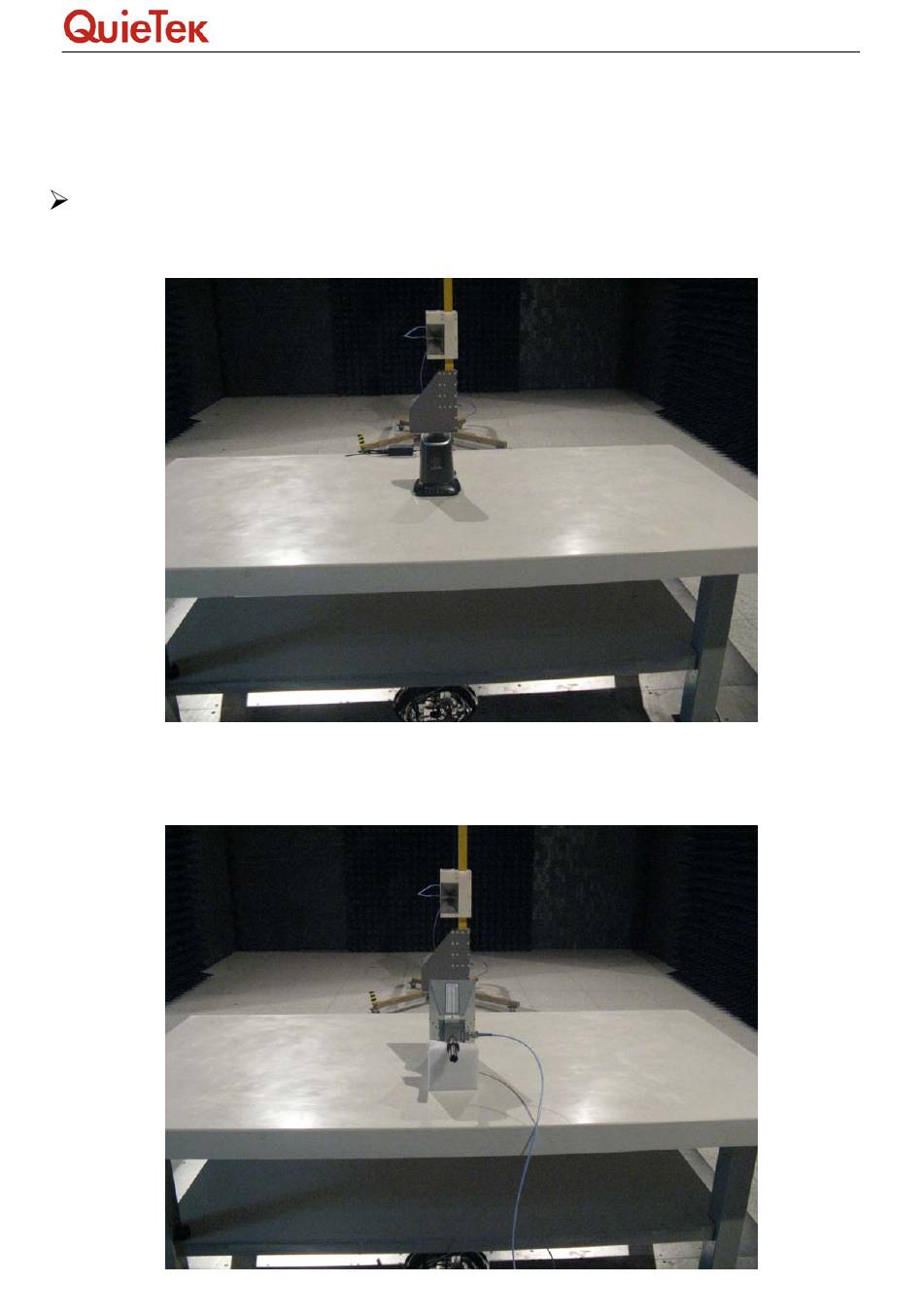

Test Setup Photographs for RF Power Output
Transmit
Test Mode:
(Radiated Measurement)
Description: Peak Output Power
Test Setup for EUT
Test Mode: Transmit
(Radiated Measurement)
Description: Peak Output Power
Test Setup for Substitution
Antenna
Page: 1 of 3
Advertisement
Summary of Contents for QuieTek I600 WiMAX
- Page 1 Report No： 08AS066R-RF-US-P10V01 I600 WiMAX MODEM (M/N: I600) Test Setup Photographs for RF Power Output Transmit Test Mode: (Radiated Measurement) Description: Peak Output Power Test Setup for EUT Test Mode: Transmit (Radiated Measurement) Description: Peak Output Power Test Setup for Substitution...
- Page 2 Report No： 08AS066R-RF-US-P10V01 Test Setup Photographs for Field Strength of Spurious Radiation Test Mode: Transmit Description: Field Strength of Spurious Radiation Test Setup for EUT (Below 1GHz) Test Mode: Transmit Description: Field Strength of Spurious Radiation Test Setup for Substitution Antenna (Below 1GHz) Page: 2 of 3...
- Page 3 Report No： 08AS066R-RF-US-P10V01 Test Mode: Transmit Description: Field Strength of Spurious Radiation Test Setup for EUT (Above 1GHz) Test Mode: Transmit Description: Field Strength of Spurious Radiation Test Setup for Substitution Antenna (Above 1GHz) Page: 3 of 3...
