VMS04201
HDMI 2.0 Matrix Switch 4×2
deutsch • english

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VMS04201 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FeinTech VMS04201

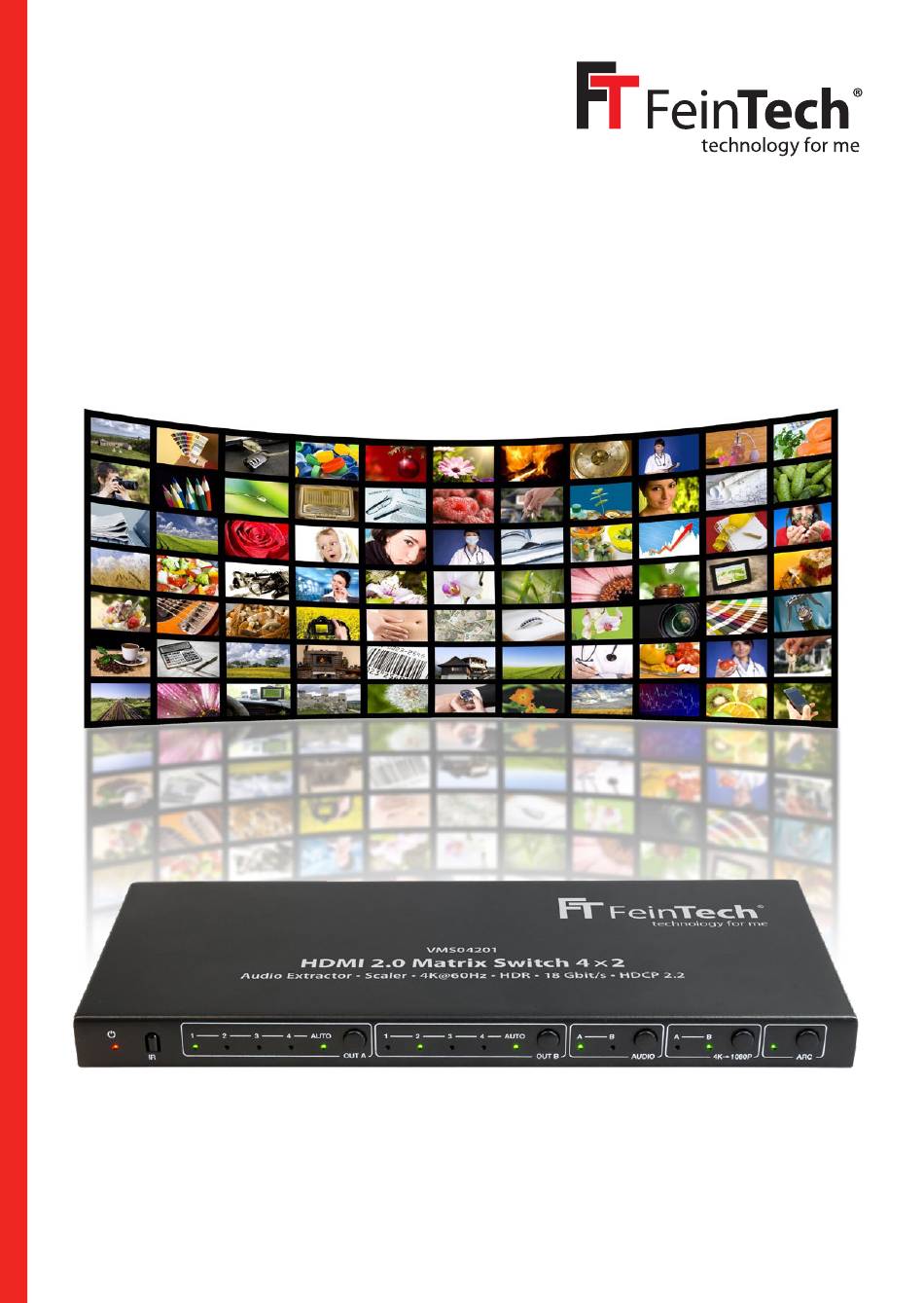

  • Page 1 VMS04201 HDMI 2.0 Matrix Switch 4×2 deutsch • english...
  • Page 2 VMS04201 HDMI 2.0 Matrix Switch 4×2 mit HDMI Audio Extractor und Scaler für Ultra-HD Bedienungsanleitung und technische Information Sehr geehrter Kunde, Wir bedanken uns für den Kauf dieses hochwertigen Produktes. Zum optimalen Einsatz und zur sicheren Verwendung lesen Sie bitte diese Anleitung vor Inbetriebnahme. Bewahren Sie bitte die Anleitung als Referenz für zukünftige Fragen auf.
  • Page 3 • COPY: Es werden nur die Fähigkeiten der HDMI-Senke an HDMI OUT A ausgewertet und sichergestellt, dass hier das bestmögliche Signal ankommt. Die HDMI-Senke an OUT B hat dann eventuell kein Bild oder Ton, wenn sie geringere Fähigkeiten hat. Schließen Sie Ihr bes- tes Gerät an HDMI OUT A an und nutzen Sie diese Einstellung, wenn Sie nicht gleichzeitig an beiden schauen möchten.
  • Page 4 b) am Audio-Klinkenanschluss Sie können hier einen Kopfhörer oder eine herkömmliche HiFi-Anlage anschließen. Eventuell benö- tigen Sie einen Adapter von 3,5 mm Klinke auf Cinchbuchsen. Die Ausgabe über die Klinkenbuchse ist nur möglich, wenn die HDMI-Quelle reinen Stereo-Ton liefert. Mehrkanal-Formate werden nicht unterstützt.
  • Page 5: Anschlüsse & Bedienelemente

    Anschlüsse & Bedienelemente 1. Power-LED, leuchtet rot bei angeschlossener Stromversorgung 2. Empfänger für das Infrarot-Signal der Fernbedienung 3. Taste und Anzeige zur Auswahl der HDMI Quelle 1–4 für Display A, zum Einschalten/ Ausschalten der AUTO-Funktion 3 Sekunden drücken (Bei aktiver AUTO-Funktion wird auto- matisch auf die zuletzt verbundene HDMI-Quelle geschaltet) 4.
  • Page 6 Fernbedienung Die mitgelieferte Infrarot-Fernbedienung steuert dieselben Funktio- nen wie die Tasten auf der Gerätefront: Output A • Mit der roten Taste schalten Sie den HDMI Matrix Switch ein oder aus. AUTO 4K/HD • Wählen Sie die HDMI-Quelle mit den Tasten 1–4 oder schalten Output B Sie zwischen den Eingängen mit den ...
  • Page 7: Installation Und Betrieb

    Ziehen Sie den Netzstecker und betreiben Sie das Gerät nicht weiter. Versuchen Sie nicht, das Ge- rät selbst zu reparieren oder zu öffnen. Wenden Sie sich an geschultes Fachpersonal oder kontak- tieren Sie den Verkäufer oder den FeinTech Service, z.B. per E-Mail an service@feintech.eu...
  • Page 8: Entsorgung Der Verpackung

    Dieses Produkt entspricht den Richtlinien der EU und darf nur zusammen mit ab- geschirmten Kabeln verwendet werden. Hiermit erklären wir, die Spreewald Kommuni- kationstechnik GmbH, dass dieses Gerät der Niederspannungs-Richtlinie 2014/35/EU, der EMV Richtline 2014/30/EU und der RoHS Richtlinie 2011/65/EU entspricht. Die formelle Konformitäts- erklärung erhalten Sie unter https://feintech.eu/ce oder auf Anforderung.
  • Page 9 Anwendungsbeispiel / Application example: Dolby Digital...
  • Page 10: Edid Switch

    VMS04201 HDMI 2.0 Matrix Switch 4×2 with HDMI Audio Extractor and Scaler for Ultra-HD media Instruction manual and technical information Dear customer, Thank you for purchasing this high quality product. Please read these instructions before installa- tion to ensure optimum use and safety. Please keep this manual for future reference.
  • Page 11: Optical Audio Output

    • Often an Ultra-HD TV and a video projector should be connected to the Matrix Switch. Then use HDMI OUT A for the television. This is because the television usually supports more pic- ture and sound formats than a projector, so it is the “better” device. • STD: The HDMI source is signaled that the HDMI sinks support 4K and stereo.
  • Page 12: Audio Formats

    The Matrix Switch always outputs the audio and video data synchronously, and without any delay. However, the processing time in two HDMI sinks may be different. Therefore, the audio may not play in sync with the video if it is processed separately. Most TV sound systems have a function to compensate this common issue (look for lip-sync or audio delay in the menu).

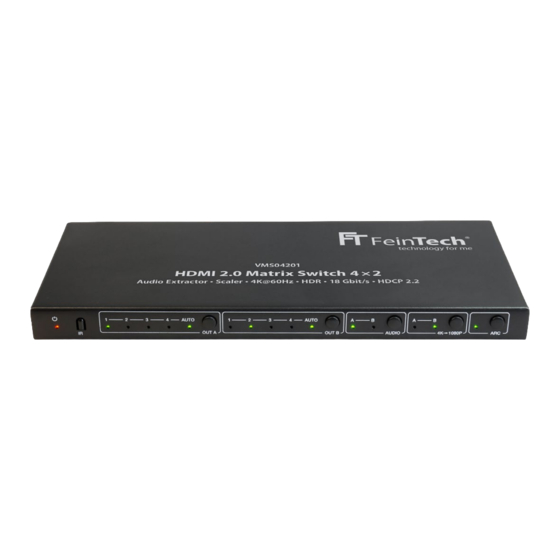

  • Page 13: Connections And Controls

    Connections & Controls 1. Power LED, lights red when power supply is connected 2. Remote control infrared signal receiver 3. Press button and display to select HDMI source 1-4 for display A, press for 3 seconds to switch on/off AUTO function (When AUTO function is active, the last connected HDMI source is switched automatically) 4.
  • Page 14: Remote Control

    Remote control The supplied infrared remote control controls the same func- tions as the buttons on the front panel: Output A • The red button turns the HDMI Matrix Switch on or off. • Select the HDMI source with the buttons 1-4 or switch be- AUTO 4K/HD tween the inputs with the buttons .
  • Page 15: Ce Declaration Of Conformity

    • The device has been dropped or the housing is damaged. Disconnect the mains plug and do not continue to operate the device. Do not attempt to repair or open the unit yourself. Contact a trained technician or contact the seller or FeinTech Service. CE Declaration of Conformity This product complies with EU directives and may only be used in conjunction with shielded cables.
  • Page 16: Specification

    Abmessungen (B×L×H) 242 x 105 x 19 mm Net weight Nettogewicht 770 g © FeinTech • registered trademark of Spreewald Kommunikationstechnik GmbH ® Radensdorfer Hauptstr. 45 a • 15907 Lübben (Spreewald) • Germany info@feintech.eu • WEEE-Reg.-Nr. DE15618234 www.feintech.eu • facebook.com/feintech...
