Axial CH3217 Installation Instructions

Installation Instructions for 2008-2014 Challenger Front LED Sidemarker Lights

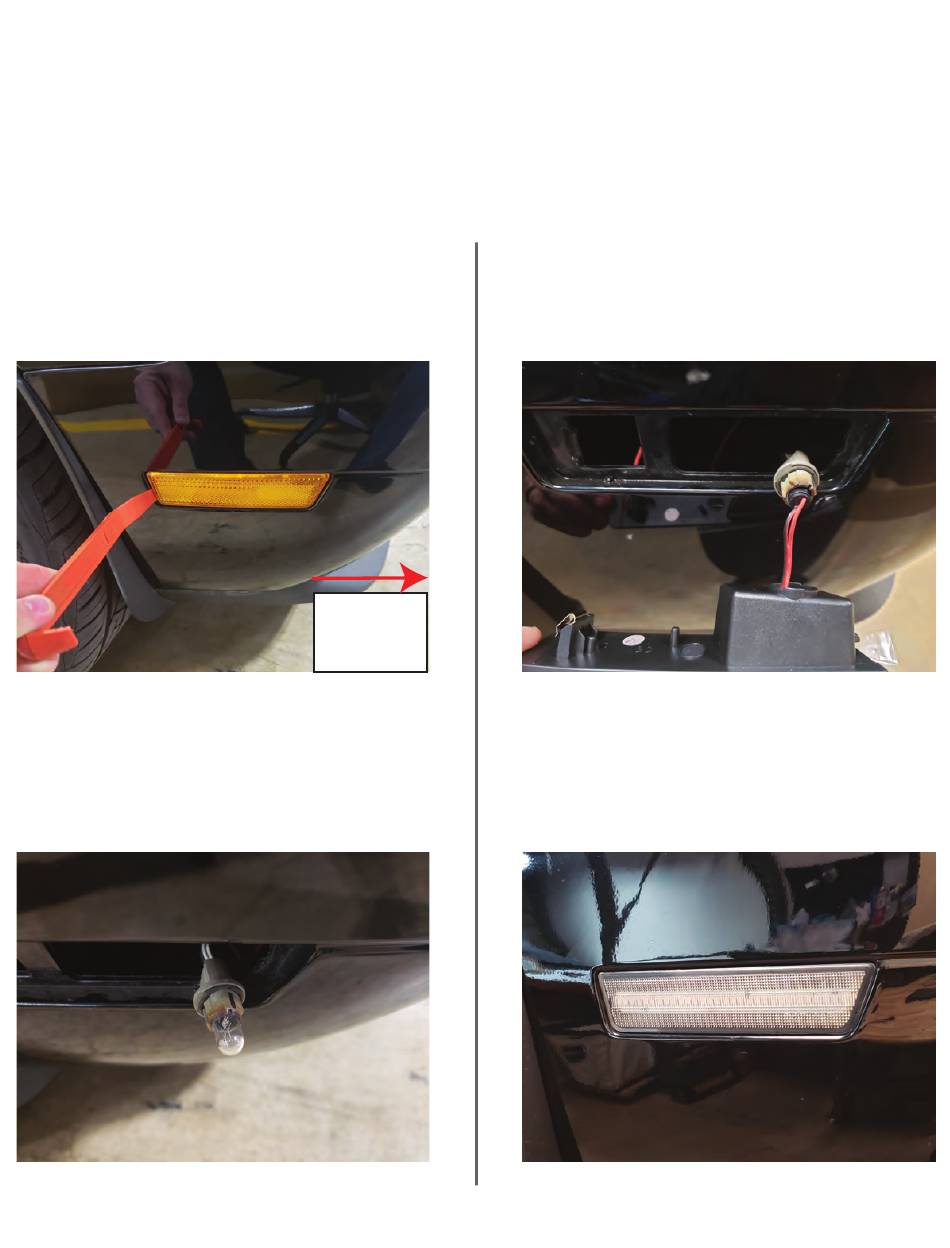

Step 1:
Using a trim panel removal tool, carefully pry between the
front sidemarker light and the bumper to release the clip.
Slide the sidemarker light out to remove from the bumper.
Step 2:
Twist the socket counter-clockwise to remove from the
factory light. Then remove the bulb from the socket.
Towards Front of
Vehicle
Step 3:
Plug in the light into the factory light socket. Twist the light
socket into the light clockwise. **Note: Test the light for
proper function. If it does not light up, rotate the socket
180 degrees.
Step 4:
Insert the locating tab into the bumper, then carefully press
the light until it clicks into place securing it to the bumper.
CH3217
CH3218
