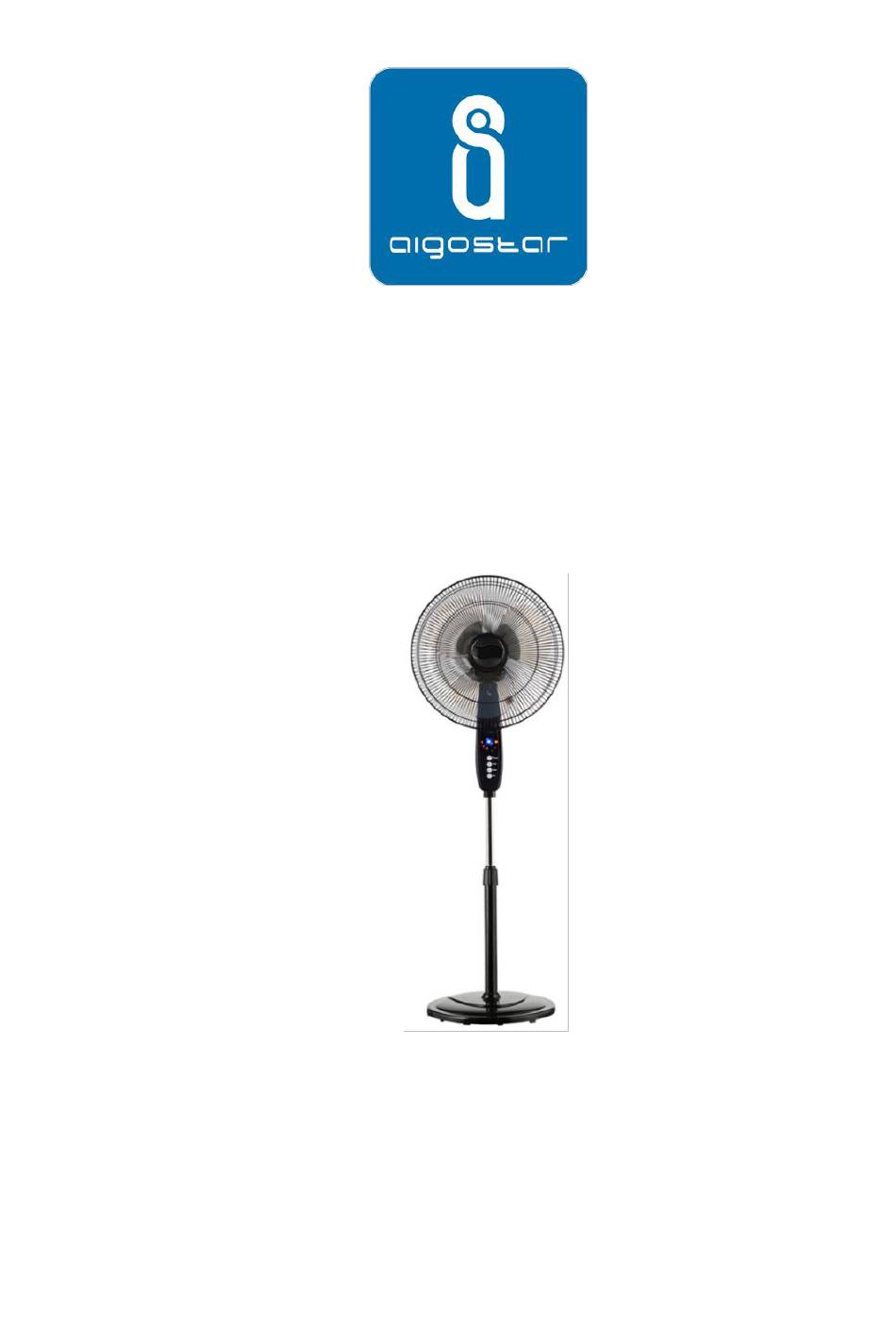

Page 1: Stand Fan
INSTRUCTION MANUAL STAND FAN MODEL: 718356204941 PLEASE READ THE MANUAL CAREFULLY BEFORE OPERATING YOUR PRODUCT AND RETAIN IT FOR FUTURE USE... -
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS 1. Use this fan only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. 2. Unplug power cord before installing, serving, or moving the 3. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning... -
Page 3: Specifications
11. This fan is equipped with an automatic reset limit control. If fan overheats for any reason, this limit control will open and stop the fan. SPECIFICATIONS Model No. 718356204941 Voltage 120V~ Frequency 60Hz Rated Power... - Page 4 PARTS FIGURE Part Description Front Grill Plastic Ring Spinner Small Blade Main Blade Plastic Nut Read Grill Motor Housing Axis Motor Housing Manual Control Panel Gasket L Screw Free neck Screw of Control Panel Adjustable Pole Adjustable Pole Tightening Knob Pillar Base Plug...
-
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS 1.Preparation Before beginning assembly process of the fan, make sure all parts are present. Compare every parts with package contents list and diagram above. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for replacement parts. Estimated Assembly Time: 30 minutes Tools Required for Assembly: Phillips Screwdriver (not included) Assembling the Base, Pillar, Adjustable Pole and Manual Control... -
Page 6: Operation
1.Remove the spinner and the plastic nut from the front side of the motor. Fix the rear grill and plastic nut to the motor shaft then tighten the plastic nut. Take the plastic ring out of packing carton, align the rear grill edge into the deep slot of the plastic ring. - Page 7 2. Key operation (Control Panel & Remote Controller) ON/OFF: Press this key will switch on/off the appliance SPEED: Press this key, it will be in wind speed state, the relative indicator light will be on. Press this key again, the following diagram shows the order of the wind flow.
-
Page 8: Maintenance
If you don’t use the remote control, please take the cell out and keep it well Please take good care of the remote control and avoid knocking and breaking it MAINTENANCE WARNING: ALWAYS UNPLUG THE UNIT BEFORE PERFORMING ANY SERVICE FUNCTION. Cleaning: Remove front grill first. - Page 9 WARNING: Risk of fire. Replace fuse only with 5 Amp, 125 Volt fuse. Do not replace attachment plug. Discard product if the attachment plug is damaged.
-
Page 10: Troubleshooting
TROUBLESHOOTING REPAIR WORK SHOULD BE DONE BY A FACTORY AUTHORIZED SERVICE CENTER. SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION 1. Plug cord into outlet. 1. Cord not plugged in. 2. Replace fuse or reset breaker. 2. Fuse blown or circuit 3. Ensure that there is proper voltage at breaker open. - Page 11 WARRANTY: 2 YEARS...
