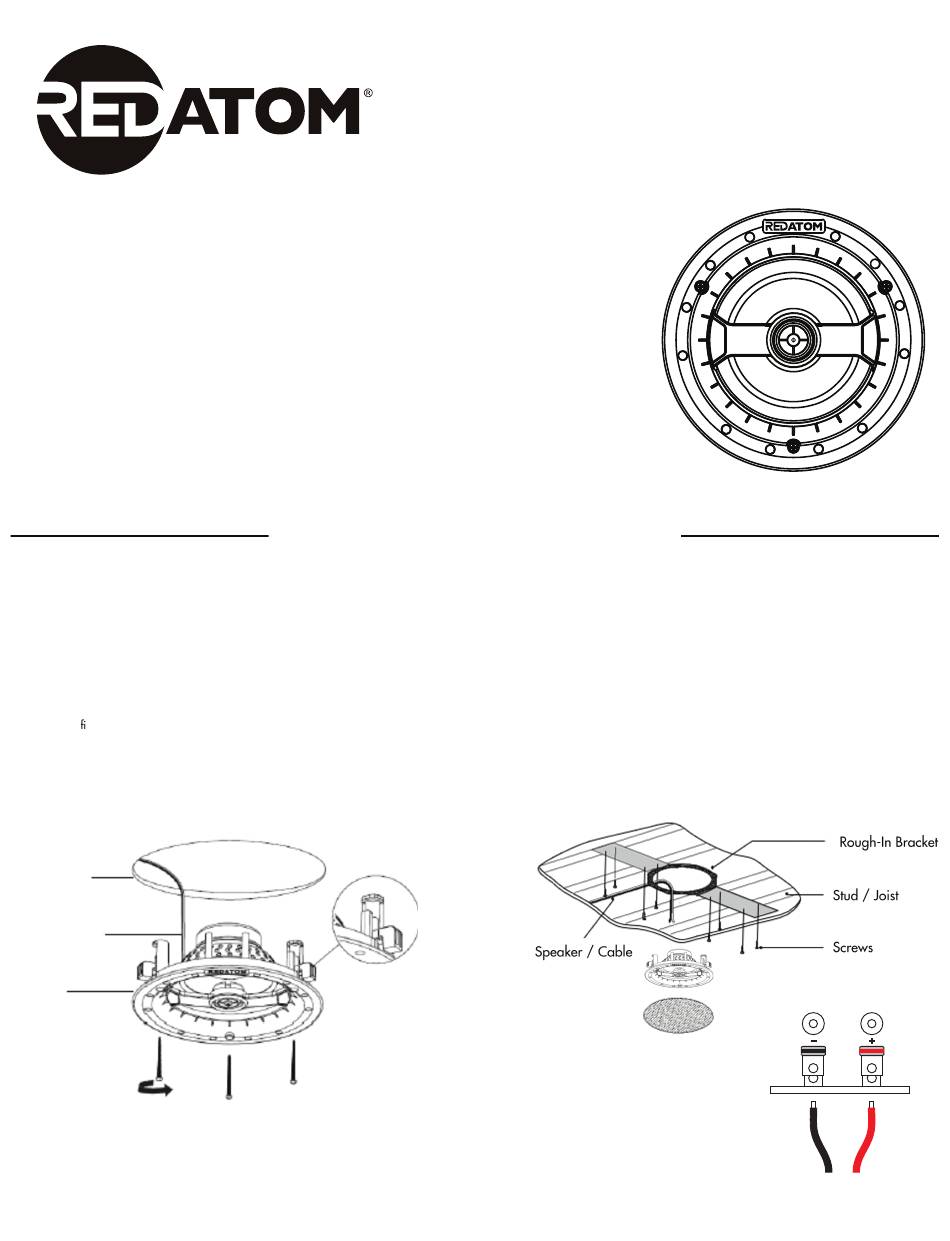

REDATOM REDIC6 Instruction Manual

RED ATOM REDIC6
6.5" Round 2-Way In-Ceiling Speaker
Instruction Manual
Retrofit Installation
Precaution: Locate existing pipes, duct work, and AC wiring prior to cutting any holes.
1. Center the cardboard template between adjacent joists. While avoiding all
wiring, pipes, and duct work, lightly mark the outline with a pencil.
2. Use a keyhole/drywall saw or motorized spiral-cut tool to make a small
opening to check for wiring, pipes, and duct work.
3. Score the outline of the template with a utility knife to prevent chipping. If dealing
with lath and plaster or thick paneling, drill 1" (2.5 cm) holes in several places
around the pencil outline.
4. Use a ne-toothed keyhole saw or hacksaw blade with slow strokes to saw
through and remove the inner surface.
Safety Precaution:
Start by drilling shallow to avoid damage to wiring, pipes and ductwork.
Cut-out
Speaker Cable
Speaker
Center the speaker in the cutout. Rotate the frame as needed before tightening
the screws. Tighten the screws equally until the clamps secure the frame.
Do not overtighten.

INSTALLATION INSTRUCTIONS

As the screws are
tightened the fastener
will rotate out and
become snug against
the drywall.

Pre-wire or Pre-construction with mounting bracket

Precaution: Locate existing pipes, duct work, and AC wiring.
1. Route the speaker wire to the speaker location avoiding all obstacles.
2. REDATOM offers Speaker Rough-In Brackets (RED6KIT & RED8KIT) that can be
fastened to the adjacent studs. Once the dry wall is installed, the opening is
cut-out. There are holes molded into the bracket for speaker wire tie-off to keep
the wire from being lost during construction.
3. Make sure the speaker cut-out (hole) doesn't extend further than ¼" (0.6 cm)
from the inside of the mounting bracket.

In-Ceiling Bracket Installation

Attach the speaker wires to the red (+) and
black (-) speaker terminals. Connect the
Positive (+) conductor to the red terminal and
the Negative (-) conductor to the Black
terminal. Make sure that there are no stray
strands of wire touching the other conductor
or terminal.
INPUT
