Summary of Contents for Rack Solutions 1UKYB-126-USB

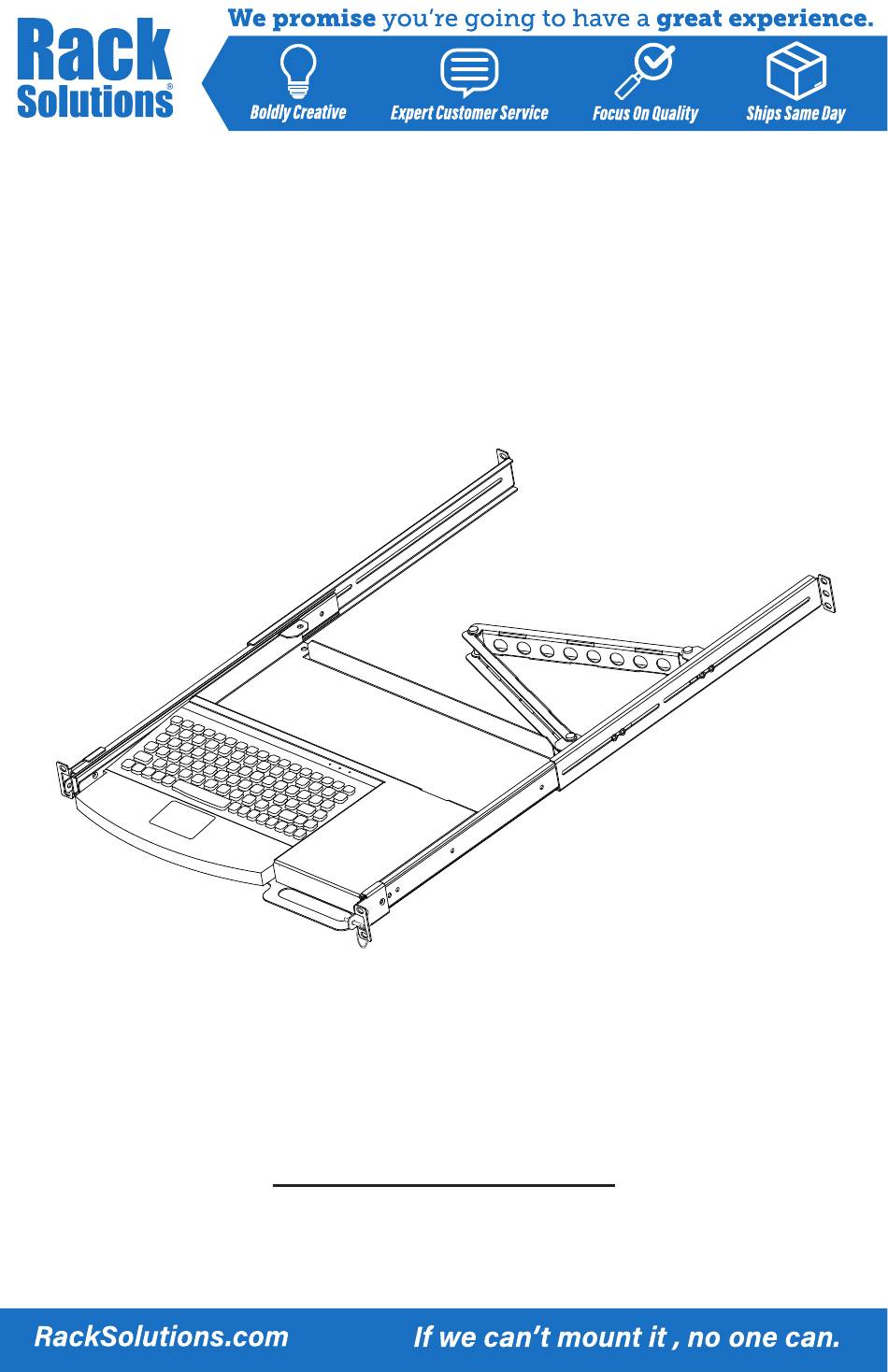

- Page 1 Patent(s) Pending Rack Mount Keyboard Tray Installation Instructions Kit P/N: 1UKYB-126-USB Kit P/N: 1UKYB-126-PS2...
- Page 2 Kit Contents (1) Partially Assembled Shelf Rack Mount Hardware Kit: (1) Mini Black Keyboard (USB or PS2) 12-24 x 1/2” Pan Head Screws Zinc 10-32 x 1/2” Pan Head Screws (2) Rear Brackets 12-24 Cage Nuts (1) Cable Management Bracket 12-24 Square Nuts (2) Cable Management Arms Assembly Hardware Kit:...
- Page 3 Installation Instructions (4Post) Step 2. Adjust Depth: Adjust the rear brackets to fit your rack mounting depth and attach to slide rails using (4) 8-32 screws and (4) 8-32 nuts. Note: You must extend the slide rails to install the nuts. Rear Brackets Step 3.
-
Page 4: Final Assembly
Installation Instructions (2 Post Flush) Step 1. Set Up for 2Post Flush: Rotate rear brackets 90° and mount and attach cable management as shown below (see Cable Management step 3) to mount in 2post flush configuration. Proceed to Final Assembly below. Rear Brackets Final Assembly Hitch Pin...
