EGAN VersaBoard Mounting Kit Instructions

VersaBoard Top Kit
Note: Prior to this step, corner mounts and bumpers
should already be installed on the VersaBoard.
Thumbscrew
Panel Bracket Slot
Panel Bracket
Top Mount
Assembly
Top Mount
Bracket
Top Mount Bolt

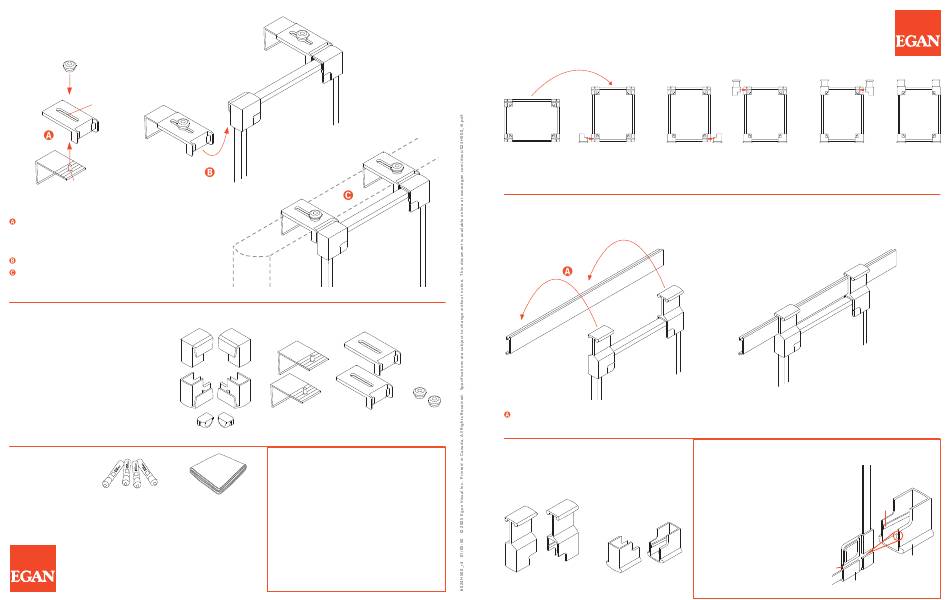

To create the top mount assembly, place panel brackets
on top mount brackets, so that the top mount bolt fits
into the panel bracket slot. Screw the thumbscrew onto
the bolt loosely.
Slide a top mount assembly onto each top corner mount.
Carefully lift the assembly over the top of the cubicle
or panel. Adjust the brackets to a comfortable fit, and
gently tighten screws.
Each VersaBoard Top Kit includes:
2 Left Corner Mounts, 2 Right Corner Mounts
2 Rubber Standoffs, 2 Panel Brackets
2 Thumbscrews
2 Top Mount Brackets*
*Top Mount Brackets are available in 3 different sizes
to accommodate from 2" up to 5-5/8" systems.
To order more markers,
EganCloths, kits, or
other accessories:
EganMarkers
1-800-263-2387
Red, green, black, brown Fabulous 16" x 12" washable cloth
www.egan.com
By the dozen: all one color, or 3 of each
Egan Visual Inc.
1-800-263-2387
International email: support@egan.com
+1-905-851-2826 www.egan.com
Top Corner
Mount
Corner Mounts
(rear view, left & right)
Top Mount Brackets Panel Brackets
Rubber Standoffs
5-YEAR LIMITED WARRANTY
Egan warrants the construction and components of its VersaBoard
products for normal and reasonable use for a period of five years from
the date of invoice. The Egan VersaBoard is backed by quality
construction, including a honeycomb core lamination and a low-glare
(EVS™) writing surface. The EVS writing surface has a 5-year limited
warranty, provided that proper care and maintenance have been
EganCloth™
maintained. The use of harsh cleaners, permanent markers, paint, low
quality dry-erase markers, and other abuse, may damage the surface and
great for any whiteboard
may void any warranty. The EganCloth ® is recommended as the best
product to use to clean the EVS surface.
This warranty does not apply to defects resulting from negligence,
damage from sharp objects, lack of proper care and maintenance. All
decisions of workmanship, failure, misuse, and abuse remain with the
manufacturer. Items may only be returned with prepaid shipping, and
with Egan Visual Inc.'s prior written consent.
VersaBoard Brackets: Brackets supplied are intended for use to support
the two specified sizes of VersaBoards in a typical office application. They
are not intended or guaranteed for use with any other Egan Visual
products.
No warranties other than those contained herein shall be applied.
V E R S A B O A R D M O U N T I N G K I T I N S T R U C T I O N S
Corner Mount Assembly for Track Kits. Attach the track corner mounts and track corner bumpers, as shown above, before mounting.
Any way you look at it, easy-to-use mounting kits are the secret to Egan VersaBoard versatility.
VersaBoard Track Kit
Track
Mount
With the corner track mounts and track bumpers
Thumbscrews
installed, place the VersaBoard onto the track.
Each VersaBoard Track Kit includes:
2 Track Mounts, 2 Track Bumpers
(Track not included)
Track Mounts
(left & right)
Top
Bottom
Note: Prior to this step, track mounts and track bumpers
should already be installed on the VersaBoard.
Track
Track not included.
For track installation, refer to your Track Assembly Instructions.
HOW TO INSTALL CORNER MOUNTS
There are two types of VersaBoard corner mounts:
(A) corner mounts & bumpers for Track installation,
and (B) corners for Edge/Top/Wall mounting. They
are always installed onto the board horizontally.
Each corner mount has a channel guide. When
the guide lines up with the channel on the
permanent corner block, the corner mount
slides on easily. They are designed to fit snugly,
so push until you feel the mount lock, to
ensure it's firmly attached.
To remove, grip corner mount firmly
and pull it away from the VersaBoard,
horizontally. Wiggling the mount up
and down as you pull will assist in
Track Bumpers
removing the snug-fitting mounts.
(left & right)
Channel
Guides
Track
Corner
Channel
Bumper
Permanent
Corner Block
