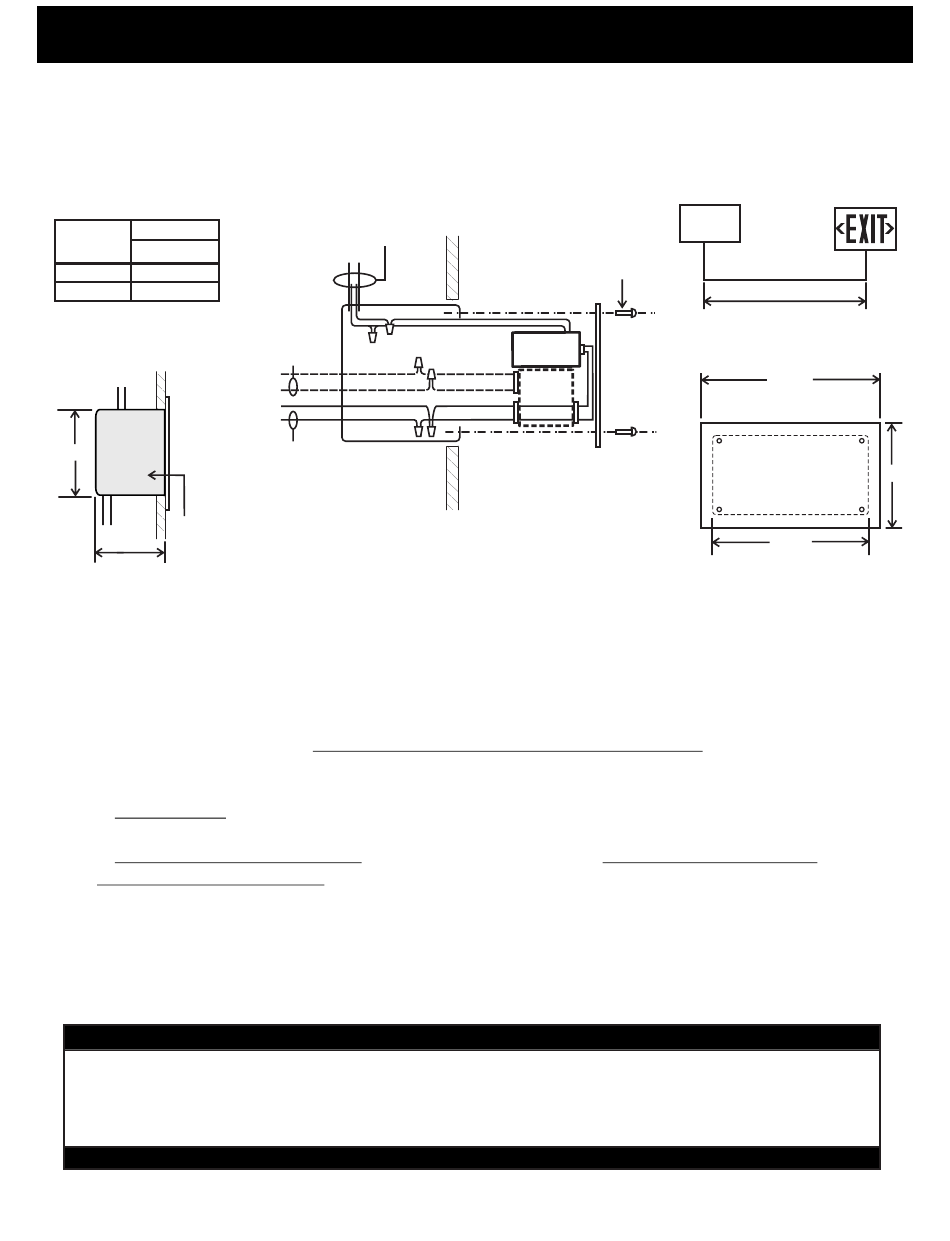

Signtex CRSAC-MM Series Installation Instructions And Owner's Manual

Remote Power Supply
For CRS AC Mullion Mount Signs
INSTALLATION INSTRUCTIONS AND OWNER'S MANUAL
TABLE 1

MAXIMUM WIRING LENGTH

FROM RPS TO EXIT FIXTURE
MAX (4) EXIT SIGNS
LENGTH (FT)
WIRING
SIZE AWG
CRR,CRS,RPR
#20 300
#18 400
EMERGENCY INPUT
0UTPUT 5 VDC
3 3/4"
INPUT
120/ 277
VAC STANDARD MASONRY BOX
3 1/2"
3 3/4" X 3 1/2" X 7 3/8"
TYPICAL STOCK MODELS:
CROUSE HINDS #TP693
RACO # 698

Remote Power Supply (RPS)

1. Use framing or brackets to install Masonry Box housing as shown, in a location convenient for access
to battery and power supply. Align top edge flange flush with finished panel surface. See Table 1 to
estimate wire size required based on maximum wiring length for low voltage output wiring from RPS to
the fixture.
2. INPUT WIRING: Connect 120/277 AC input wiring to building supply with wire nuts, and connect
GROUND to Housing with Screw mount.
3. OUTPUT LOW VOLTAGE WIRING: Connect output wiring to fixture. See Table 1 for minimum wire
sizebased on distance to fixture.
4. Turn AC power ON after fixture is connected and check lamp operation.
5. (DAC OPTION): Turn Primary Supply OFF and activate Emergency Supply to check operation.
IMPORTANT SAFEGUARDS READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. Disconnect AC power before servicing.
2. Refer to wiring diagram for proper connections.
3. All servicing should be performed by qualified personnel.
4. Consult your local building code for approved wiring and installation.
5. Do not use this equipment for other than intended use.
6. Do not let power cords touch hot surfaces.
OUTPUT LOW VOLTAGE
TO FIXTURE
2 CONDUCTORS*
(SEE TABLE 1 FOR WIRE SIZE)
(DAC OPTION)
120/ 277 VAC
WHITE
N
BLACK/ ORANGE
L
WHITE
N
BLACK/ ORANGE
L
PRIMARY INPUT
UTILITY 120/ 277 VAC
SAVE THESE INSTRUCTIONS
(4) #6-32 X 1/2
RED
BLACK
LED DRIVER
120/277 VAC
DAC
(OPTION)
BLUE
BROWN
7. Mount and secure the fixture at a location and height to avoid ready access
and tampering by unauthorized persons.
8. The use of accessory equipment is not recommended by the manufacturer
and may cause an unsafe condition.
9. Suitable for wet locations. See product label for temperature limitations.
Series CRSAC-MM
INPUT
120/277 VAC
RPS
SCREWS
OUTPUT 5 VDC
SEE TABLE 1 FOR
MAX WIRING LENGTH
8 1/2"
BACK BOX
10.15.00
5"
7 3/8"
