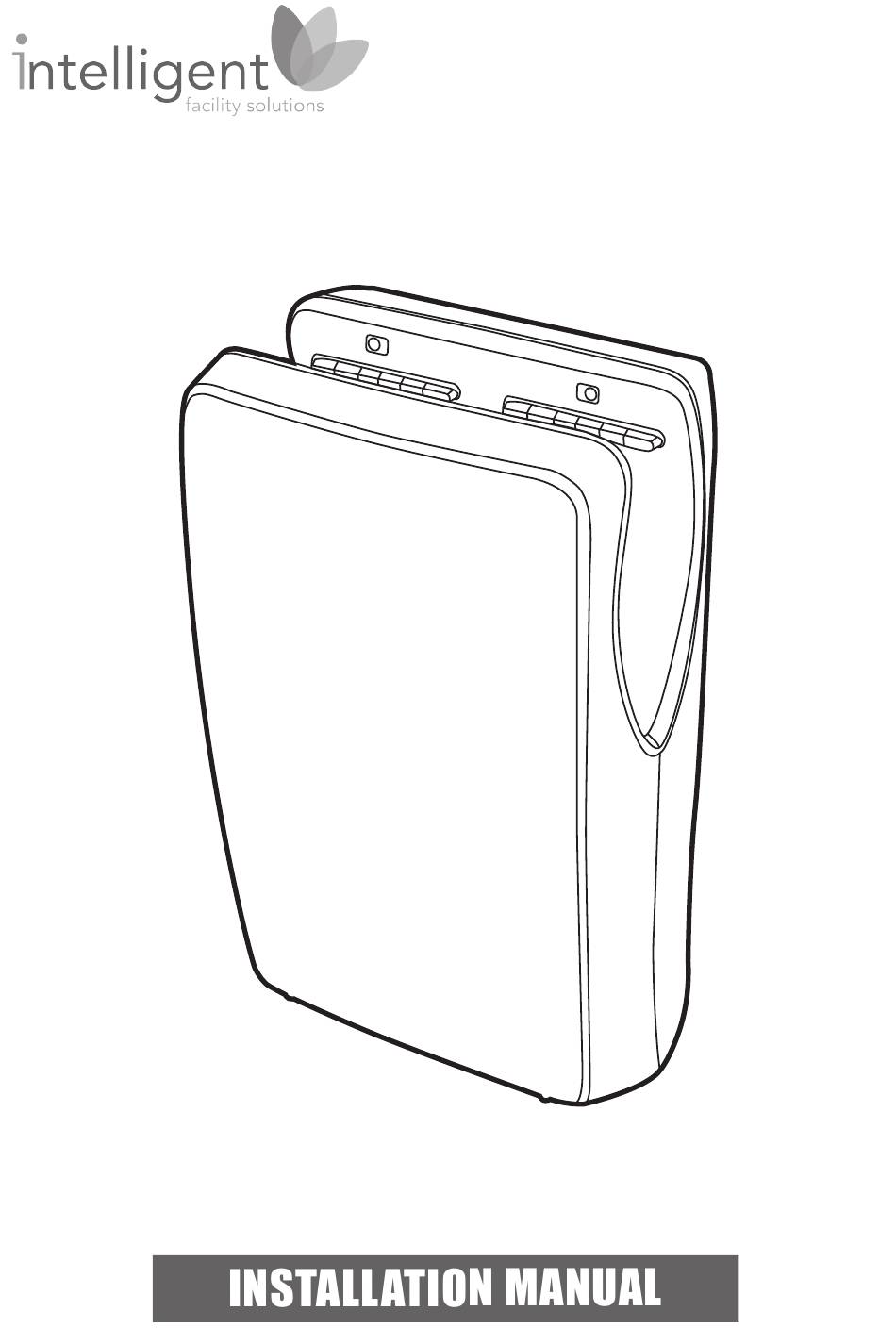

- Page 1 Dryflow® Vapordri Hand Dryer...
-
Page 2: Table Of Contents
Dryflow® Vapordri Hand Dryer INDEX 1. SAFETY INSTRUCTIONS ........................2 2. INTRODUCTION ..........................4 3. INSTALLATION ..........................5 4. OPERATION ............................. 8 4.1 Drying............................8 4.2 Heating element ........................9 4.3 Water tank ..........................9 5. MAINTENANCE ..........................10 6. CLEANING OF WATER TANK ......................12 7. - Page 3 Dryflow® Vapordri Hand Dryer - Local rules and specifications for installation must also be taken into account, as in some cases a safety distance greater than 0.6 m could be required. - It is necessary to anticipate procedures to cut the electric circuit, with at least 3mm contact distance in all poles.
-
Page 4: Introduction
Dryflow® Vapordri Hand Dryer 2. INTRODUCTION The main features of the Dryflow® Vapordri hand dryer are the following: • Automatic functioning. The hand dryer will automatically turn on when hands are detected by IR sensors. Sensibility of these sensors can be regulated through the potentiometers placed inside the device. -
Page 5: Installation
Dryflow® Vapordri Hand Dryer 3. INSTALLATION For correct installation, please follow the next steps: 1- Remove back cover. Break die-cut opening, which is designed to pass power cord through and screw it to connection strip. Screw duct provided as a protection to prevent cord to be pulled accidentally. - Page 6 Dryflow® Vapordri Hand Dryer 2- Fix to wall by means of screws provided. It is essential the device is properly aligned; it is therefore advisable to use the bubble level included on the support fixed to wall. Installation height must be as follows: RECOMMENDED MOUNTING HEIGHT 1 meter...
- Page 7 Dryflow® Vapordri Hand Dryer In order to recalibrate sensors you will need to manipulate potentiometers. Do it carefully as they are highly sensitive electronical components. Turn potentiometers with a flat head screwdriver clockwise or counterclockwise, whichever applies. Right Sensor Sensor Electronical plate with poten ometers to calibrate hand...
-
Page 8: Operation
Dryflow® Vapordri Hand Dryer 4. OPERATION 4.1 Drying To switch the hand dryer on it must be connected to the power supply and the internal illuminated switch must be ON. NOTICE: When the device is delivered the internal switch is ON, so it is not necessary to remove the front cover to activate it. -
Page 9: Heating Element
Dryflow® Vapordri Hand Dryer 4.2 Heating element Heating element activates when room temperature is lower than 25ºC. When the device is in use, LED diffuser light will be red if heating element is active and blue if heating element is off. LED diffuser light: RED: Heating element on BLUE:... -
Page 10: Maintenance
• Intelligent Facility Solutions logo (blinking). It means that 30 seconds programmed drying cycle is finished. If sensors detect a static object for longer than 30 seconds, the device will automatically stop. - Page 11 Dryflow® Vapordri Hand Dryer Note: The button situated on the cover of the electronic is used to reset the motor operating hours counter, and therefore, it shows when the brushes have been changed. To reset counter, press the button and at the same time, turn on the device by means of the illuminated pushbutton.
-
Page 12: Cleaning Of Water Tank
Dryflow® Vapordri Hand Dryer 6. CLEANING OF WATER TANK When triangle symbol shines, water tank is almost full. Please empty water tank following below instructions. The tank is located at the bottom of the hand dryer. Release tank Pull out water tank. Remove cover. -
Page 13: Conexion Diagram
Dryflow® Vapordri Hand Dryer 7. CONEXION DIAGRAM Circuits: PW. Power circuit CN. Control circuit LED. Leds air nozzles IR. IR sensors circuits DS. Display PT. Pressure temperature sensor Pushbuttom. Boton reset for motor counter Main switch. AC Input. Terminal block Blower Motor. -
Page 14: Technical Features
Dryflow® Vapordri Hand Dryer 8. TECHNICAL FEATURES Voltage 230V~50Hz Motor type Universal Total power 1550 W Insulation class Clase II Motor power 1050 W Protection class IP21 Power heating resistance 500 W Dimensions 320 x 540 x 180 cm Weight 6,830 kg Technical features sheet: IP 21... -
Page 15: Package Content
Dryflow® Vapordri Hand Dryer 9. PACKAGE CONTENT • Dryflow® Vapordri Hand Dryer. • Wall support with bubble level. • Screws to fix support and device to wall. • Warranty document. • Installation manual. 10. ENVIRONMENTAL PROTECTION In compliance with RoHS directive “Directive 2002/95/EC” about electrical and electronic equipment, this electrical hand dryer does not contain any lead, nor mercury, cadmium, hexavalent chromium, prolybrominated biphenyl (PBB) or Polybrominated diphenyl ethers (PBDE) or Phthalates. - Page 16 INTELLIGENT FACILITY SOLUTIONS LTD. Electric House, 51 Wisewood Road Sheffield, S6 4TB, United Kingdom Phone UK: +44 (0) 114 354 0047 Phone Eire: +353 190 36387 sales@ihdryers.co.uk https://www.intelligenthanddryers.com/...
