Orangemonkie Foldio360 Manual

Thank you for purchasing the Foldio360 smart turntable.
About Foldio360

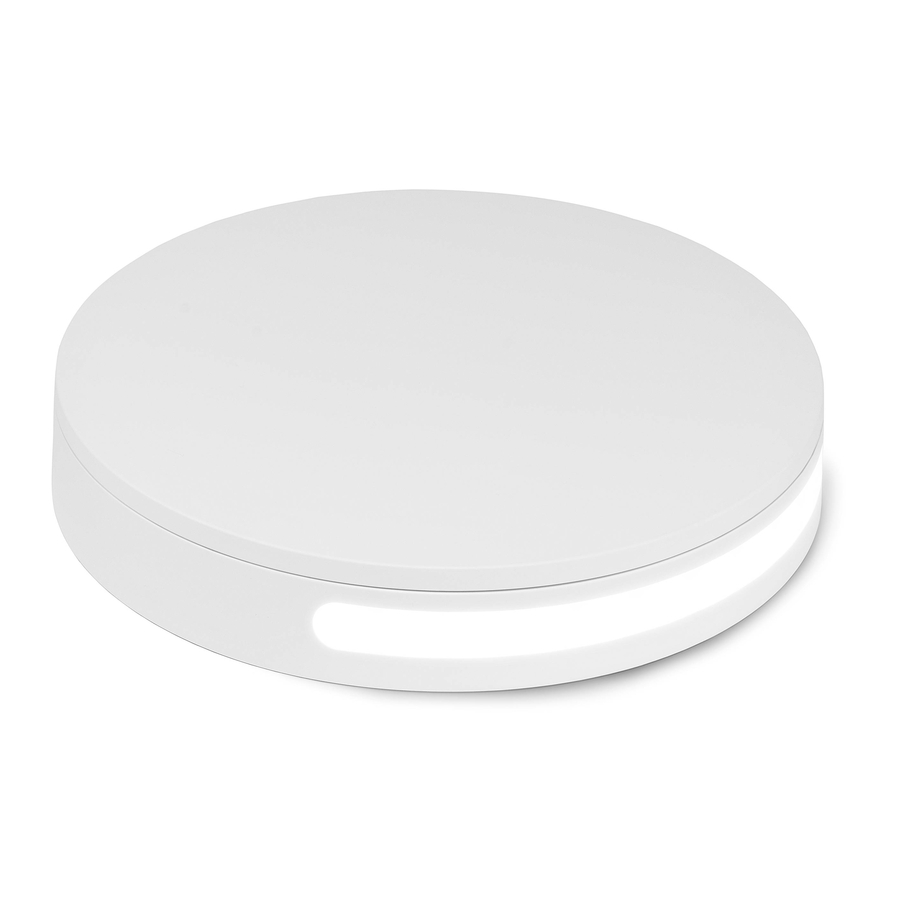

Foldio360 is a convenient smart turntable that allows you to create 360° images anywhere.
You can create 360° images with your smartphone or digital camera. Experience a whole new world of online contents with the Foldio360.
Product Overview
1
5
4
1
LED Indicator & IR transmitter
2 Rotary plate
3 HALO EDGE™ light
4 DC IN / DC power connector
5 MODE switch / Display mode switch
Display Mode
DC IN MODE
On Display Mode the turntable will continue to rotate counterclockwise.
During Display Mode, HALO EDGE™ Light and Bluetooth connection
will be inactive.
How to enable, disable Display Mode
On : Press and hold the MODE button for about 2 seconds until the LED indicator blinks.
Off : Press and hold the MODE button for about 2 seconds until the LED indicator blinks.
To enable HALO EDGE™ Light, turn off 'Display Mode' and connect the turntable
with your smartphone via Bluetooth and execute 'Control Mode' . For details of
'Control Mode' please refer to app instructions on http:/ /www.orangemonkie.com
S/W
- Anyone can use the turntable by downloading the 'Foldio360' app available in
iOS / Android.
- You can easily embed or share your 360° images created with the Foldio360
through the platform developed by Orangemonkie.
For details, check http:/ /orangemonkie.com
How to use
1
2
3
Connect the turntable with the DC adapter.
The power connector is located at the bottom of the device.
2
Use the 'Foldio360' application to connect your smartphone
with the turntable via Bluetooth. You can download the 'Foldio360' application
from Apple App Store or Google Play Store.
3
DC IN MODE
Place object on the center of the turntable and start creating your
360° image with your smartphone or DSLR camera.
When creating 360 images with the Foldio360, use a tripot to immobilize
your smartphone or camera to enhance the quality of your image.
Technology
- Automatic Shooting system : The system automatically creates 360° images
with Bluetooth or IR remote.
- HALO EDGE™ : The Halo Edge light technology created by Orangemonkie,
eliminates the outline of the turntable when creating 360° images.
- BLE : By Bluetooth 4.0 technology, the turntable connects with supported
smartphones.
- IR : By IR remote transmitter built in the turntable, the device can be connected
with cameras supporting IR remote function.
Specification
Material White Plastic
Size 250mm x 250mm x 45mm ( 10" x 10" x 1.7" )
Halo Lighting 15chips / 45cells / Daylight 5700k / White
Max. load Up to 5kg ( 11lbs )
Supported Bluetooth 4.0 (BLE) for Smartphone
Communication
IR remote control for DSLR
Input Power DC 12V / 1.2A
Application Foldio360 app ( iOS / Android )
Operating temperature 0°C ~ + 40°C (Typ 25°C)
System requirements
· Smartphone with bluetooth 4.0(BLE) support
· iOS 7.1
· Android 4.3
Precaution
On BLUETOOTH communications
· BLUETOOTH wireless technology operates within a range of about 10 m (30 feet).
Maximum communication range may vary depending on obstacles (human body, metal, wall, etc.)
or electromagnetic environment.
· BLUETOOTH communications may be disabled,
– There is a human body between the unit and the BLUETOOTH device. This situation may be
improved by placing the BLUETOOTH device facing the antenna of the unit.
– There is an obstacle, such as metal or wall, between the unit and the BLUETOOTH device.
– A device using 2.4 GHz frequency, such as a Wi-Fi device, cordless telephone,
or microwave oven, is in use near this unit.
· Because BLUETOOTH devices and Wi-Fi (IEEE802.11b/g/n) use the same frequency (2.4 GHz),
microwave interference may occur resulting in noise or audio dropout or communications
being disabled if this unit is used near a Wi-Fi device. In such a case, perform the following.
– Use this unit at least 10 m (30 feet) away from the Wi-Fi device.
– If this unit is used within 10 m (30 feet) of a Wi-Fi device, turn off the Wi-Fi device.
– Install this unit and the BLUETOOTH device as near to each other as possible.
· Microwaves emitting from a BLUETOOTH device may affect the operation of electronic
medical devices. Turn off this unit and other BLUETOOTH devices in the following locations,
as it may cause an accident: – where inflammable gas is present, in a hospital, or a petrol
station – near automatic doors or a fire alarm.
· Using the BLUETOOTH device may not function on mobile phones, depending on radio wave
conditions and location where the equipment is being used.
· Do not use the unit on an airplane. Radio waves may affect instruments, causing an accident
due to malfunction.
· This unit supports security capabilities that comply with the BLUETOOTH standard to provide
a secure connection when the BLUETOOTH wireless technology is used, but security may not
be enough depending on the setting. Be careful when communicating using BLUETOOTH
wireless technology.
· We do not take any responsibility for the leakage of information during BLUETOOTH
communications.
· Connection with all BLUETOOTH devices cannot be guaranteed.
– A device featuring BLUETOOTH function is required to conform to the BLUETOOTH standard
specified by Bluetooth SIG, Inc. and be authenticated.
– Even if the connected device conforms to the above mentioned BLUETOOTH standard,
some devices may not be connected or work correctly, depending on the features or
specifications of the device.
· Depending on the device to be connected, it may require some time to start communications.
