MENVIER

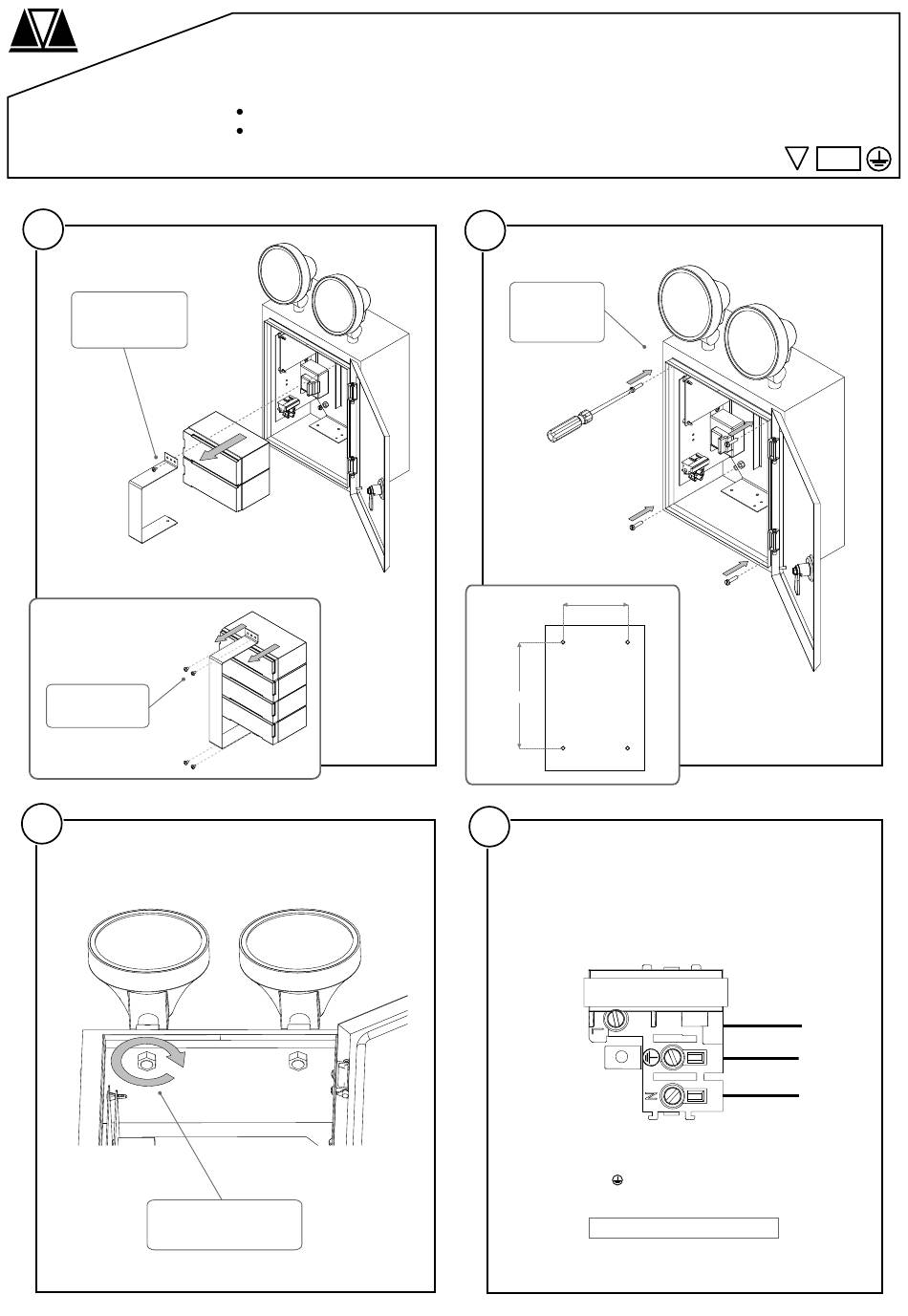

1
Removing batteries
Open door, unscrew
battery clamp, then
remove clamp and
batteries
Loosen 4 x screws
to remove clamp
and batteries
3
Important Note:
Check that nylon/steel nuts
are securely tightened
on underside of lamp heads
Installation Instructions for:
Beamlite
Product luminaires comply with BS 60598-2-22 Class 1.
This luminaire has an ambient temperature range of 5 C to 25 C
o
2
Mounting
Mount fitting to
surface using
4 x fixing screws
(not supplied)
Mounting Holes
215.0mm
270.0mm
4
Wiring
Ensure mains supply is turned OFF
Wire mains cable into terminal block as shown below:
L
- Brown (Live)
- Green/Yellow (Earth)
N
- Blue (Neutral)
FITTING MUST BE EARTHED
o
F
IP55
