CB901EX

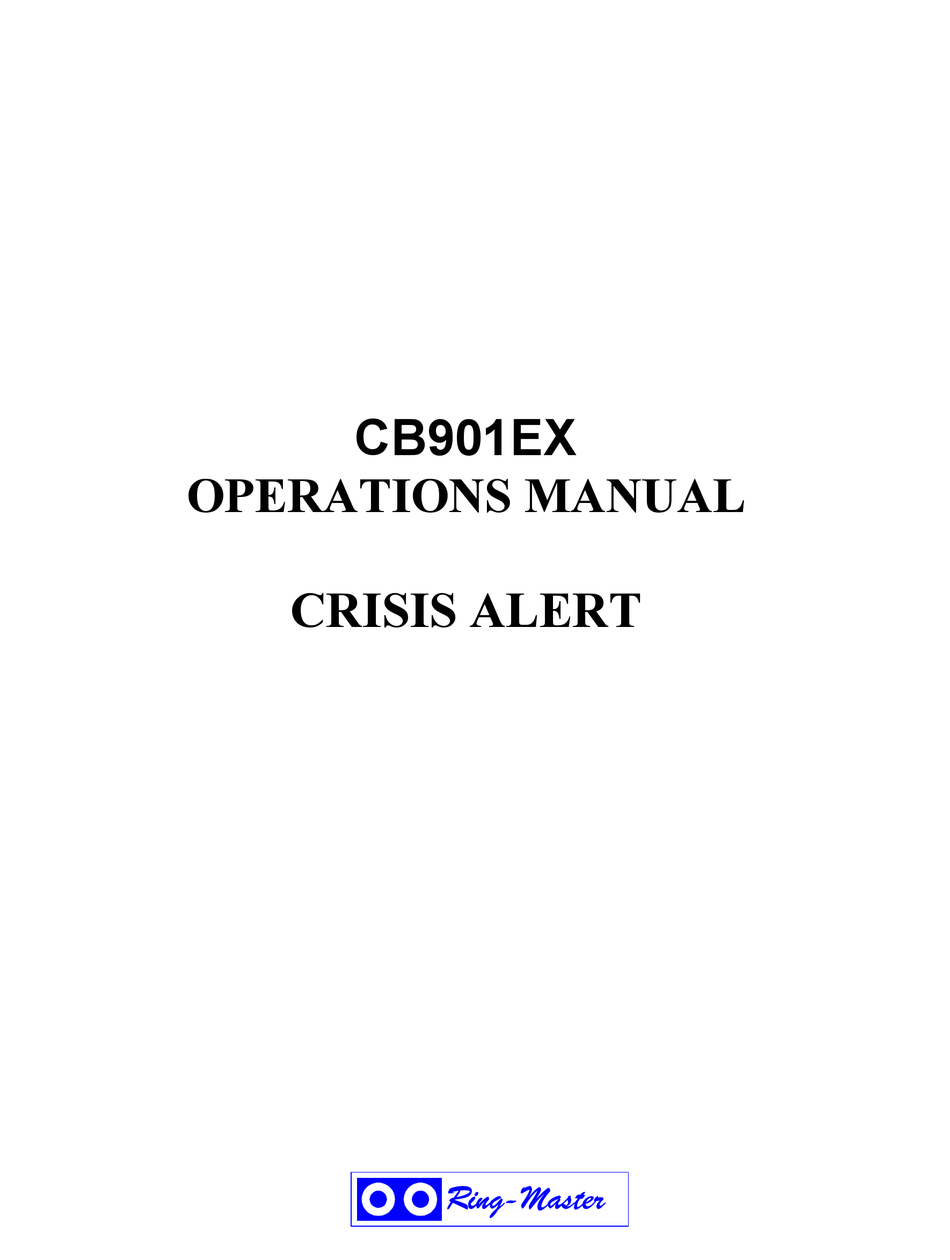

OPERATIONS MANUAL
CRISIS ALERT
Ring-Master

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CB901EX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RinG-MASTER CB901EX

  • Page 1 CB901EX OPERATIONS MANUAL CRISIS ALERT Ring-Master...

  • Page 3: Table Of Contents

    CB900EX Operations Manual Table of Contents INTRODUCTION.........................5 FEATURES..........................7 STANDARD FEATURES......................7 SYSTEM FEATURES......................7 INDIVIDUAL FEATURES.......................7 NUMBER PLAN........................8 FEATURE DESCRIPTION......................9 HANDSET / LOUDSPEAKING....................9 CONFIDENTIAL /SOFTSPEAKING..................9 SIMPLEX..........................9 MICROPHONE CUTOFF.......................9 DIRECT DIALING........................9 DIRECT ACCESS........................9 ALARM..........................10 LINE SUPERVISION......................10 TWO BUTTON DC SHIFT SUB-STATION................10 REMOTE CONTROL......................10 CAMP ON BUSY EXTENSION....................10 PRIVACY..........................10 PRIORITY..........................11...
  • Page 4 SERVICE INFORMATION..................28 CONVERSION TABLE STATION POSITION/CALL NUMBER........29 TECHNICAL SPECIFICATIONS..................37 CONFIGURATION......................58 SYNTAX........................58 HELP...........................59 LINE EQUIPMENT......................61 CALL NUMBER......................61 CALLER ID......................62 DEVICE TYPE......................63 PRIVELEGE TYPE....................64 DIRECT DIAL......................66 SUBSCRIBER TIMERS..................67 TRANSFER......................68 ANNUNCIATOR DISPLAY..................69 EVENT LOG PRINTER...................70 CAMERA SWITCHER.....................70 BATTERY CHARGE MONITOR.................71 ALL CALL........................72 GROUP CALL......................73 GROUP CONFERENCE.....................74 SECTORING.......................75 INSTALLATION.......................79...

  • Page 5: Introduction

    CB901EX INTRODUCTION Ring-Master system CB 901EX is an all-to-all direct speech system, controlled by a fully electronic central exchange. All its functions are microprocessor controlled. This enables the customer to select from a wide range of programmable features designed to achieve flexibility and optimal efficiency in internal communication.
  • Page 6 CB901EX Operations Manual July 2018 PROCESSOR CARD This card contains the microprocessor, its program and memory. The 256K bytes program, which controls all computer operations is located in FLASH Memory). It contains the main oscillator (10.7 MHz) and provides all timing signals in the central unit. In this way the system is synchronized all the way through, which minimizes noise generation on the audio links.

  • Page 7: Features

    July 2018 Operations Manual CB901EX FEATURES STANDARD FEATURES 15 Links Hands free Loudspeaking Confidential Softspeaking T-Button for manual control of speech direction Microphone mute Data transmission for remote control Privacy Camp on busy extension Crisis Alert Network Interface SYSTEM FEATURES...

  • Page 8: Number Plan

    CB901EX Operations Manual July 2018 NUMBER PLAN IDLE: 10-69 Subscriber number 2 digit dial 100-699 Subscriber number 3 digit dial 1000-6999 Subscriber number 4 digit dial All Call 71-79 Group Calls Respond to meet-me Program distribution PRIVACY: Accept call CONVERSATION (INITIATOR):...

  • Page 9: Feature Description

    July 2018 Operations Manual CB901EX FEATURE DESCRIPTION HANDSET / LOUDSPEAKING When two intercom stations are connected, either party may speak to the other hands free without touching any buttons. CONFIDENTIAL /SOFTSPEAKING At any time during the call, either one or both parties may pick up their station ( AA918) and use it as a handset for a confidential conversation.

  • Page 10: Alarm

    CB901EX Operations Manual July 2018 ALARM Long DC shift (1sec<) will send ALARM to the call number programmed for direct access. LINE SUPERVISION Line Supervision is activated with privilege #10. Zero Volt on the audio line will send FAULT to the call number programmed for Direct Access.

  • Page 11: Priority

    July 2018 Operations Manual CB901EX PRIORITY When a station is programmed with the privelege “Priority” it may connect to a busy or privacy station by dialing “0” . This is only possible if the busy station does not have Priority privelege.

  • Page 12: Paging

    CB901EX Operations Manual July 2018 PAGING Allows for one way paging from one station to other stations in the exchange and will override calls in progress (they will reconnect when the Page is completed).There are 15 paging groups in thesystem. Each group contains the call numbers that are included in the page (group call) or excluded from the page (all call).
  • Page 13 July 2018 Operations Manual CB901EX Example 2: Include stations 12-26 in Group Call #3 (73). >SGCM Call Number <10-99/*> : 12-26 Group Number <0..7> : 3 <+/-/=> : + > Example 3: Exclude stations 15 from Group Call #3 (73).

  • Page 14: Program Distribution

    TWO WAY RADIO The CB901EX system may be connected to a radio base station for communication on a closed two-way radio network. An interface unit (IF935) is required and is given an ordinary subscriber number.

  • Page 15: Telephone Network

    CB901EX TELEPHONE NETWORK An interface (IF934P) can be supplied to operate between a telephone network and the CB901EX. The interface is used to make calls from any intercom station to the telephone network and to make a call from an outside telephone to any intercom station.

  • Page 16: Installation

    7. Customer introduction and training. CENTRAL LOCATION A summary of the environmental factors affecting the Ring-Master CB901 system is presented in the listing below. These factors must be considered when developing a detailed system plan. Site preparation is dependent upon the customer’s facilities. In many cases, there may be only one location where the central and power supply (or transformer) can be mounted.

  • Page 17: Cable Requirements

    July 2018 Operations Manual CB901EX C. Location of existing telephone ducts or conduit. D. The AC line should be dedicated exclusively to the system. If the line is equipped with a circuit breaker at the service entrance panel, the circuit breaker switch should be labeled «DO NOT TURN OFF».

  • Page 18: Installation Of Central Exchange

    CB901EX Operations Manual July 2018 The wire dimensions for stations located further from the central must be increased accordingly. However, independent local DC power supplies can be used for distant stations. No reference wiring between local and central power supplies is required.

  • Page 19: Cable Termination In Station Socket

    July 2018 Operations Manual CB901EX CABLE TERMINATION IN STATION SOCKET Station type: Master Stations AA918, AA917 w/display - modular 8 pin RJ45 socket. Leads No. 1 and No. 2 - Audio Signaling Leads Lead No. 1 to be connected to pin No. 5 in the RJ45 station socket.

  • Page 20: Installation Of Cardrack

    Using 27 V also permits longer cabling from stations to central with a 3 V tolerance to 24 V control voltage drop on longer cable runs. Ring-Master supplies a standard DC power unit PSDC24V12A which is factory-adjusted to 27 V and can supply 12 Amp. It is adjustable .
  • Page 21 July 2018 Operations Manual CB901EX POWER REQUIREMENTS. Power for stations: Power needs for stations are based upon the basic figure of 250 mA per station. Station power is connected to screw terminals on the power distribution board PCB935 (in DP979 and DP980) marked + and - 24VDC.

  • Page 22: Plugging In Printed Circuits Cards

    12 or 13. In CB901EX systems the card positions 12 and 13 are used for Interlink B Card NFE1545. If not used then the Subscriber Card NFE1625 can be installed in these positions, giving a total of 88 subscribers in the Basic Cardrack.
  • Page 23 2. To deactivate an alarm channel the 24V DC «enable signal» must be disconnected (back to open circuit on «alarm enable» input). Battery Operation Function - cable no. 2. When CB901EX Systems are installed as no-break system (connected to emergency power - battery bank) it is important to cut out the Program Distribution Feature when there is a mains power failure.
  • Page 24 Operations Manual July 2018 STATION POWER SUPPLY. In a fully equipped Ring-Master System CB901EX all stations can simultaneously be connected to program channels - 240 stations. The total power consumption will then be approx. 36 Amp. (240 x 0.150 A).

  • Page 25: Power On System Check

    July 2018 Operations Manual CB901EX POWER ON SYSTEM CHECK NOTE: Always turn OFF the central power (NFE1528) before plugging the cards in or out of the cardracks. Pull all NFE1625 cards out of the plugs (approx. one inch) except the card in position No. 2. Test one card position at a time.

  • Page 26: Adjustments

    CB901EX Operations Manual July 2018 Plug in the rest of the NFE1625/PCB978 cards, one by one and connect the corresponding flat cable to the back of the motherboard in the cardrack. Make a call between the stations in positions 00 and 01.

  • Page 27: Final Check Out Of The System

    July 2018 Operations Manual CB901EX FINAL CHECK OUT OF THE SYSTEM INTRODUCTION When the system has been installed and programmed, perform the following checks to verify the operation of the system and related equipment. If the system is found to be faulty, use the following guidelines to locate the faulty station or printed circuit board(s) and replace the part.

  • Page 28: Service Information

    CB901EX Operations Manual July 2018 SERVICE INFORMATION CAUTION: Always turn power OFF before changing subscriber boards in the central exchange The CB 901EX system is a microprocessor controlled system and for servicing/maintenance a certain level of such knowledge is needed together with some understanding of the software.

  • Page 29: Conversion Table Station Position/Call Number

    July 2018 Operations Manual CB901EX CONVERSION TABLE STATION POSITION/CALL NUMBER BASIC CARDRACK STATION CARD POS. POS. 1000 1256 1512 1768 2024 2280 2536 2792 1001 1257 1513 1769 2025 2281 2537 2793 1002 1258 1514 1770 2026 2282 2538 2794...
  • Page 30 CB901EX Operations Manual July 2018 CONVERSION TABLE - STATION POSITION NO./CALL NO. BASIC CARDRACK STATION CARD POS. POS. 1032 1288 1544 1800 2056 2312 2568 2824 1033 1289 1545 1801 2057 2313 2569 2825 1034 1290 1546 1802 2958 2414 2570 2826...
  • Page 31 July 2018 Operations Manual CB901EX CONVERSION TABLE - STATION POSITION NO./CALL NO. BASIC CARDRACK STATION CARD POS. POS. 1064 1320 1576 1832 2088 2344 2600 2856 1065 1321 1577 1833 2089 2345 2601 2857 1066 1322 1578 1834 2090 2346 2602 2858...
  • Page 32 CB901EX Operations Manual July 2018 CONVERSION TABLE - STATION POSITION NO./CALL NO. SUBSCRIBER CARDRACK STATION CARD POS. POS. 1096 1352 1608 1864 2120 2376 2632 2888 1097 1353 1609 1865 2121 2377 2633 2889 1098 1354 1610 1866 2122 2378 2634 2890...
  • Page 33 July 2018 Operations Manual CB901EX CONVERSION TABLE - STATION POSITION NO./CALL NO. SUBSCRIBER CARDRACK STATION CARD POS. POS. 1128 1384 1640 1896 2152 2408 2664 2920 1129 1385 1641 1897 2153 2409 2665 2921 1130 1386 1642 1898 2154 2410 2666 2922...
  • Page 34 CB901EX Operations Manual July 2018 CONVERSION TABLE - STATION POSITION NO./CALL NO. SUBSCRIBER CARDRACK STATION CARD POS. POS. 1160 1416 1672 1928 2184 2440 2696 2952 1161 1417 1673 1929 2185 2441 2697 2953 1162 1418 1674 1930 2186 2442 2698 2954...
  • Page 35 July 2018 Operations Manual CB901EX CONVERSION TABLE - STATION POSITION NO./CALL NO. SUBSCRIBER CARDRACK STATION CARD POS. POS. 1192 1448 1704 1960 2216 2472 2728 2984 1193 1449 1705 1961 2217 2473 2729 2985 1194 1450 1706 1962 2218 2474 2730 2986...
  • Page 36 CB901EX Operations Manual July 2018 CONVERSION TABLE - STATION POSITION NO./CALL NO. SUBSCRIBER CARDRACK STATION CARD POS. POS. 1224 1480 1736 1992 2248 2504 2760 3016 1225 1481 1737 1993 2249 2505 2761 3017 1226 1482 1738 1994 2250 2506 2762 3018...

  • Page 37: Technical Specifications

    July 2018 Operations Manual CB901EX TECHNICAL SPECIFICATIONS Power requirements: 27V DC regulated Internal operating voltages: CMOS integrated circuits: +/- 5V reg. TTL integrated circuits: +/- 5V reg. Power consumption, Basic Cardset DP 952EX 1 amp. Power consumption, subscriber card: 100 mA per card Max.
  • Page 38 CB901EX Operations Manual July 2018 Page 38 of 83 Ring-Master...
  • Page 39 July 2018 Operations Manual CB901EX Page 39 of 83 Ring-Master...
  • Page 40 CB901EX Operations Manual July 2018 Page 40 of 83 Ring-Master...
  • Page 41 July 2018 Operations Manual CB901EX CAS901 POWER DISTRIBUTION BLACK BLACK BLACK PCB979 BLACK DP979 BLACK DP980 110/220 VAC FUSE PANEL PSDC24-12 PCB979 DP979 DP980 ON/OFF SWITCH Page 41 of 83 Ring-Master...
  • Page 42 CB901EX Operations Manual July 2018 PINS 32 A/B MUST NOT BE CONNECTED PINS 32 A/B PLUG CONNECTION PINS 12 A/B - 31 A/B PINS 1 A/B BASIC CARDRACK DP 979 PINS 12 A/B - 31 A/B PLUG ROW P2 XA21...
  • Page 43 July 2018 Operations Manual CB901EX BASIC CARDRACK DP 979 19 18 17 16 15 14 13 12 11 10 SUBSCRIBER CARDRACK DP 980 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23...
  • Page 44 CB901EX Operations Manual July 2018 DP979 PCB1626 NFE1545 NFE1545 PROGRAM INTERLINK INTERLINK ALARM 24 VDC BF901 BF901 BF901 BF901 BF902 BF902 BF902 BF902 DP980 24 VDC BF901 BF901 BF901 BF901 BF901 BF901 BF901 Page 44 of 83 Ring-Master...
  • Page 45 July 2018 Operations Manual CB901EX ALARM 10 A/B CHANNELS NORMALLY THE PROGRAMME DISTRIBUTION CARD NFE 1626 IS INSTALLED IN CARD POS. 10 (XA11). PROGRAMME CHANNELS PLUG ROW CABLE NO. 1. BF 925 XA11 1 A/B MOTHERBOARD NFE 1523A XA11 XA10 XA9 XA8...
  • Page 46 CB901EX Operations Manual July 2018 MDF Cable A1 DP979 MDF Cable A2 CARD CALL COLOR CARD CALL -------------------------------------------------------------------- White-Blue Blue-White White-Orange Orange-White White-Green Green-White White-Brown Brown-White White-Slate Slate-White Red-Blue Blue-Red Red-Orange Orange-Red Red-Green Green-Red Red-Brown Brown-Red Red-Slate Slate-Red Black-Blue Blue-Black...
  • Page 47 July 2018 Operations Manual CB901EX MDF Cable A3 DP979 MDF Cable A4 CARD CALL COLOR CARD CALL -------------------------------------------------------------------- White-Blue Blue-White White-Orange Orange-White White-Green Green-White White-Brown Brown-White White-Slate Slate-White Red-Blue Blue-Red Red-Orange Orange-Red Red-Green Green-Red Red-Brown Brown-Red Red-Slate Slate-Red Black-Blue Blue-Black...
  • Page 48 CB901EX Operations Manual July 2018 MDF Cable A5 DP979 MDF Cable A6 CARD HEX CALL COLOR CARD CALL -------------------------------------------------------------------- White-Blue Blue-White White-Orange Orange-White White-Green Green-White White-Brown Brown-White White-Slate Slate-White Red-Blue Blue-Red Red-Orange Orange-Red Red-Green Green-Red Red-Brown Brown-Red Red-Slate Slate-Red Black-Blue...
  • Page 49 July 2018 Operations Manual CB901EX MDF Cable A7 DP979 MDF Cable A8 CARD CALL COLOR CARD CALL -------------------------------------------------------------------- 11 48 White-Blue Blue-White White-Orange Orange-White 11 49 White-Green Green-White White-Brown Brown-White 11 4A White-Slate Slate-White Red-Blue Blue-Red 11 4B Red-Orange Orange-Red...
  • Page 50 CB901EX Operations Manual July 2018 PROGRAM/ALARM DP979 MDF Cable A9 FUNCTION COLOR ------------------------------------------------------ White-Blue Blue-White White-Orange Orange-White White-Green Green-White White-Brown Brown-White White-Slate Slate-White Red-Blue Blue-Red Red-Orange Orange-Red Battery Operation + Red-Green Battery Operation - Green-Red Alarm 2 Enable Red-Brown Alarm 2 Enable...
  • Page 51 July 2018 Operations Manual CB901EX MDF Cable A11 DP979 MDF Cable A12 NFE1545 Interlink FUNCTION COLOR FUNCTION -------------------------------------------------------------------- LINK 8 RX 26 White-Blue LINK 16 LINK 8 Blue-White LINK 16 LINK 8 TX 27 White-Orange LINK 16 LINK 8 Orange-White...
  • Page 52 CB901EX Operations Manual July 2018 EXTERNAL DEVICES DP979 MDF Cable A13 FUNCTION COLOR -------------------------------------------------------------------- Battery Ground 26 White-Blue Battery Ground 1 Blue-White White-Orange Orange-White White-Green Green-White White-Brown Brown-White White-Slate Slate-White Red-Blue Blue-Red Red-Orange Orange-Red RS485 DATA Red-Green RS485 DATA Green-Red...
  • Page 53 July 2018 Operations Manual CB901EX MDF Cable B1 DP980 MDF Cable B2 CARD CALL PIN COLOR CARD CALL -------------------------------------------------------------------- 21 50 White-Blue Blue-White White-Orange Orange-White 21 51 White-Green Green-White White-Brown Brown-White 21 52 White-Slate Slate-White Red-Blue Blue-Red 21 53 Red-Orange...
  • Page 54 CB901EX Operations Manual July 2018 MDF Cable B3 DP980 MDF Cable B4 CARD CALL PIN COLOR CARD CALL -------------------------------------------------------------------- 24 68 White-Blue Blue-White White-Orange Orange-White 24 69 White-Green Green-White White-Brown Brown-White 24 6A White-Slate Slate-White Red-Blue Blue-Red 24 6B Red-Orange...
  • Page 55 July 2018 Operations Manual CB901EX MDF Cable B5 DP980 MDF Cable B6 CARD CALL PIN COLOR CARD CALL -------------------------------------------------------------------- 27 80 White-Blue Blue-White White-Orange Orange-White 27 81 White-Green Green-White White-Brown Brown-White 27 82 White-Slate Slate-White Red-Blue Blue-Red 27 83 Red-Orange...
  • Page 56 CB901EX Operations Manual July 2018 MDF Cable B7 DP980 MDF Cable B8 CARD CALL PIN COLOR CARD CALL -------------------------------------------------------------------- 30 98 252 26 White-Blue 1 Blue-White 27 White-Orange 2 Orange-White 30 99 253 28 White-Green 3 Green-White 29 White-Brown 4 Brown-White...
  • Page 57 July 2018 Operations Manual CB901EX MDF Cable B9 DP980 MDF Cable B10 CARD CALL PIN COLOR CARD CALL -------------------------------------------------------------------- 33 B0 276 26 White-Blue 1 Blue-White 27 White-Orange 2 Orange-White 33 B1 277 28 White-Green 3 Green-White 29 White-Brown 4 Brown-White...
  • Page 58 CB901EX Operations Manual July 2018 MDF Cable B11 DP980 MDF Cable B12 CARD CALL PIN COLOR CARD CALL -------------------------------------------------------------------- 36 C8 300 26 White-Blue 1 Blue-White 27 White-Orange 2 Orange-White 36 C9 301 28 White-Green 3 Green-White 29 White-Brown 4 Brown-White...
  • Page 59 July 2018 Operations Manual CB901EX MDF Cable B13 DP980 MDF Cable B14 CARD CALL PIN COLOR CARD CALL -------------------------------------------------------------------- 39 E0 324 26 White-Blue 1 Blue-White 27 White-Orange 2 Orange-White 39 E1 325 28 White-Green 3 Green-White 29 White-Brown 4 Brown-White...

  • Page 60: Configuration

    July 2018 CONFIGURATION One DNA100 is used as a programming interface to the CB901EX. The DNA100 has one RS232 port for connection to dumb terminal or a PC running PROCOM+ emulating WYSE50 or VT100. Select main menu “6-COMMUNICATION LINK” on the DNA100 to sets up a link between the PC and the CB901EX (consult the DNA100 manual on the procedure to set up the communication link).

  • Page 61: Help

    July 2018 Operations Manual CB901EX Misspelled command input will give the following error message: Unknown Command Parameter errors will print ERROR: and then prompt for the parameter again. HELP HELP COMMANDS Help lists all help commands in the Configuration program. Type HELP, H or ?.
  • Page 62 CB901EX Operations Manual July 2018 SET COMMANDS >HS EX901 Set Commands: ====== ======================= Set Alarm Priority Set Call Number SCNU Set Call Number Undefined Set Call Priority SCID Set Caller ID Set Direct Access Set Direct Dial Set Device Type...

  • Page 63: Line Equipment

    July 2018 Operations Manual CB901EX LINE EQUIPMENT The Line Equipment Number is the location of the intercom station in the central exchange. The number is hexadecimal in the range $00-$3D (62 subscribers). All individual station programming is done to this line equipment number. The programmed information may be listed by Line Equipment Number or by Call Number.

  • Page 64: Caller Id

    CB901EX Operations Manual July 2018 >SCN Call Number <100-999/*> : 200-255 Line Equipment Number (R=range, S=single) <R/S> : R Line Equipment Number <$00..$4F> : 00 >LLE Line Equipment Number <$00-$3D/*> : 00-03 Line Call Priority Network Address Remote Equ. Number...

  • Page 65: Device Type

    July 2018 Operations Manual CB901EX Each subscriber in the system has 12 alphanumeric characters for identification. This ID is available for display on the called station (DAD104) and for Event Logging (DNA100). Default is all spaces. PROGRAMMING The following commands are used for this feature:...

  • Page 66: Privelege Type

    CB901EX Operations Manual July 2018 >LCN Call Number <10-99/*> : 11-14 Line Call Priority Network Address Remote Equ. Number Caller ID Type QUE Alarm Call Display Printer Video NET LEQ ==== ========= ========== ==== ==== ===== ==== ======= ======= =====...
  • Page 67 July 2018 Operations Manual CB901EX >SPT Call Number <10-99/*> : 11 Privilege ID <1..9> : 4 <+/-/=> : + > Display the result. >LPT Call Number <10-99/*> : 11 Privelege ID <1-9/*> : 4 Call Number ID Privelege =========== ======================= All Call Access >...

  • Page 68: Direct Dial

    CB901EX Operations Manual July 2018 PROGRAMMING The following commands are used for this feature. Set Direct Access List Direct Access Example 1: Set direct access for subscriber 12 to dial subscriber 18. >SDA Call Number <10-99/*> : 12 Call Number to be dialed <10..99/U> : 18 >LDD...

  • Page 69: Subscriber Timers

    July 2018 Operations Manual CB901EX SUBSCRIBER TIMERS There are 8 timers that can be set individually for each subscriber. A timer value of 0 means no time limit. PROGRAMMING The following commands are used for this feature. Set Subscriber Timer List Subscriber Timers Example: Set warning tone length (timer 2) to 1 sec.

  • Page 70: Transfer

    CB901EX Operations Manual July 2018 Each intercom station has a Personal Queue. This queue is activated with Privelege ID number 7. All received calls are put in personal que and the intercom station will ring (2 sec on, 3 sec off) until the call is answered by pressing the 0 key.

  • Page 71: Annunciator Display

    2018 Operations Manual CB901EX is activated and transfer 3 will not activate until transfer 2 is activated and so on. With each transfer there is a delay before the call is transferred. The delay is in increments of 6 seconds :...

  • Page 72: Event Log Printer

    CB901EX Operations Manual July 2018 PROGRAMMING The following commands are used for this feature. Set Network Address List Call Number Example: Subscriber 10 is assigned to the DAD104 with network address 0A (hex). The network address is set with DIP-switch in the DAD104.

  • Page 73: Battery Charge Monitor

    BATTERY CHARGE MONITOR The CB901EX battery voltage is monitored. If the input voltage is higher then 25 Volt then the battery is being charged and D6 is ON. If AC power is lost or the battery charger fails then the battery voltage will fall below the 25 Volt and D6 will turn OFF.

  • Page 74: All Call

    CB901EX Operations Manual July 2018 sent to the DAD104 (if programmed) and the system is running on battery power. This alarm can only be cleared by restoring the battery voltage to 25 Volt or higer. PROGRAMMING The following commands are used for this feature.

  • Page 75: Group Call

    2018 Operations Manual CB901EX call back is active until one station dials 90 or a new call back is activated from another All Call or Group Call. It is possible to exclude receivers from the All Call. This is done by entering call numbers in the All Call exclusion group (group #0).

  • Page 76: Group Conference

    CB901EX Operations Manual July 2018 > Example 4: Include stations 18 only in Group Call #6 (76) . >SGCM Call Number <10-99/*> : 18 Group Number <0..7> : 6 <+/-/=> : = > Example 5: Group Conference for stations 10-16 in Group Call #1 (71) .

  • Page 77: Sectoring

    July 2018 Operations Manual CB901EX Group Conference may be used for Emergency Communication/Paging. Example: AA918 Master station with Annunciator for display of Faults DAD104 ($09). 11-16 GS921DAM Handset Stations with Push ToTalk button. 17-20 IF935 Paging Interface. Programming: Master station 10.
  • Page 78 CB901EX Operations Manual July 2018 The following commands are used for this feature. Set Sector Members List Sector Members SSCT Set Sector Can Call Table LSCT List Sector Can Call Table Example: Security 21-24 Nurses Stations. 31-38 Operating rooms. 41-52 Elevators.
  • Page 79 July 2018 Operations Manual CB901EX >LSCT From Can Call Sector Sectors ====== ============================================= 4 ...... 3 ......3 ......
  • Page 80 CB901EX Operations Manual July 2018 P29P31234567 will delay 2 seconds (waiting for dial tone), dial 9, delay 3 seconds, then dial 1234567. PROGRAMMING The following commands are used for this feature. Set Device Type List Call Number Set Speed Dial Number...

  • Page 81: Installation

    July 2018 Operations Manual CB901EX PROGRAMMING The following command is used for this feature. Backup Example: >BAK Call Number <100-999/*> : 100-101 BACKUP START: 2017/06/30 ! EX901 VERSION: 2017/06/27 SCN 100 00 SCID 100 SECURITY SDT 100 2 SQP 100 2...

  • Page 82: Switch Programming

    CB901EX Operations Manual July 2018 DNA300 Computer Control Interface DNA400 Pocket Page Interface DAD104 Annunicator Display DS16 Direct select Annunciator, 16 line The DNA100 can be connected directly to J1 for programming. The PCB1019 has 3 LEDs for displaying network communication: Master LED.
  • Page 83 July 2018 Operations Manual CB901EX Push and release the Reset Switch on PCB1019 (SW4). LED M (PCB1019) will blink 2 times during RAM Test (apx. 2 sec.). The RAM will initialize (1 sec.). LED M will flash rapidly to indicate that the initialization is complete.
