Srandard 63334 Installation Instructions

LED FLOOD FIXTURES

INSTALLATION INSTRUCTIONS

Order Description
code
63334 LED/FL/120W/40K/TM/120-277V/BRZ/STD
63335 LED/FL/160W/40K/TM/120-277V/BRZ/STD
63336 LED/FL/200W/40K/TM/120-277V/BRZ/STD
63337 LED/FL/120W/40K/SF/120-277V/BRZ/STD
63338 LED/FL/160W/40K/SF/120-277V/BRZ/STD
63339 LED/FL/200W/40K/SF/120-277V/BRZ/STD
IMPORTANT: READ ALL INSTRUCTIONS BEFORE THE INSTALLATION.
CAUTION: There are two installation methods depending on application. An internal power-factor-corrected switch-mode supply allows it to be used
from any nominal 100-277 V or 277-480 V, 60 Hz AC supply without any variation in light output.
NOTE: SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
WARNING: Risk of fire or electric shock. The installation should be performed only by a qualified electrician in accordance with the National Electrical
Code and relevant local codes. This product must be installed in full accordance with applicable electrical and building codes.
WARNING - TO AVOID ELECTRIC SHOCK:
• Be certain electrical power is OFF before and during installation and maintenance.
• Luminaire must be connected to a wiring system with an equipment-grounding conductor.
WARNING - TO AVOID EXPLOSION:
• Make sure the supply voltage is the same as the rated luminaire voltage.
• Do not install where marked operating temperatures exceed the ignition temperature of the hazardous atmosphere.
• Do not operate in ambient temperatures above those indicated on the luminaire.
• Keep lens tightly closed when in operation.
• For supply connections use wire rated for at least 100°C.
INSTALLATION INSTRUCTIONS:

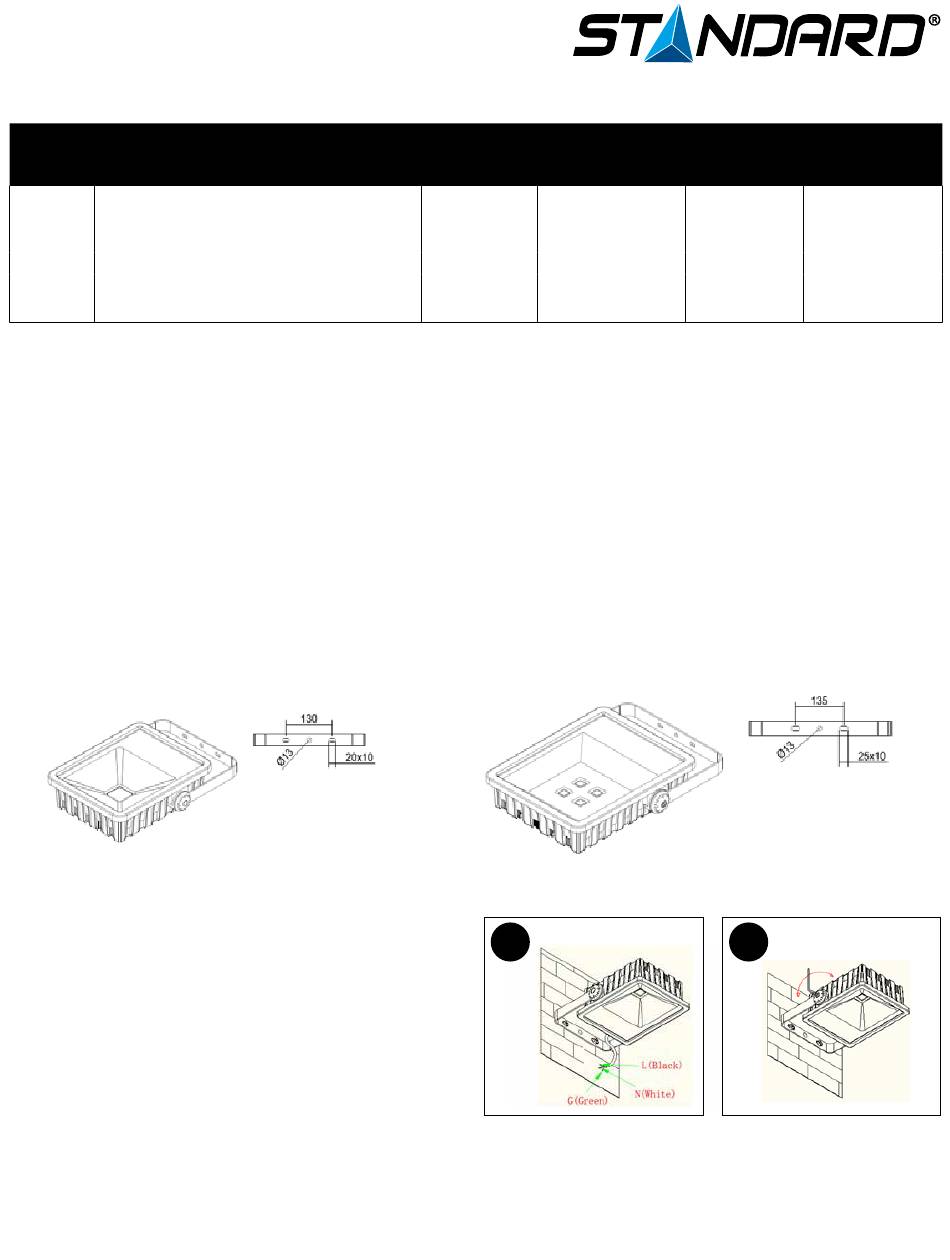

DIRECTLY FIX TO MOUNTING SURFACE

• Use expansion bolts to secure the fixture on mounting surface.
• Ensure wires are long enough to allow for adjusting to desired
position (FIG. 1).
• Connect wires into wiring terminal; white wire to "neutral"
terminal, black wire to "live" terminal, green wire to "ground"
terminal; and fix them with screws.
• Adjust the fixture to desired orientation, tighten the screws.
Use cULus listed water-proof junction box cover (FIG. 2)
Input Power
voltage factor
(VAC)
120-277 ≥ 0.90
120-277 ≥ 0.90
120-277 ≥ 0.90
120-277 ≥ 0.90
120-277 ≥ 0.90
120-277 ≥ 0.90
1
Watts Colour
temp.
(W) (K)
120 4 000
160 4 000
200 4 000
120 4 000
160 4 000
200 4 000
2
