Summary of Contents for Entity YU004

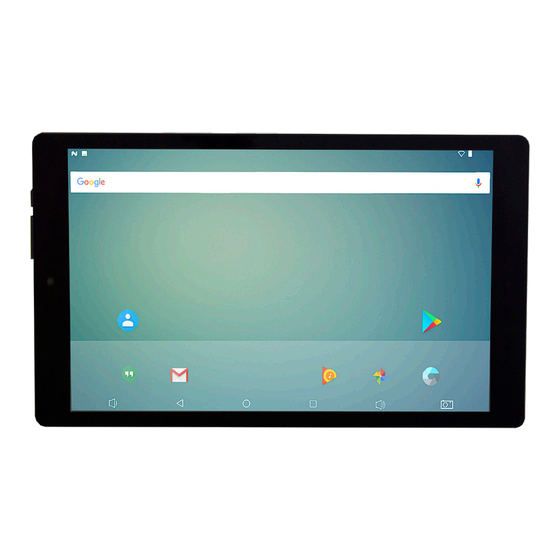

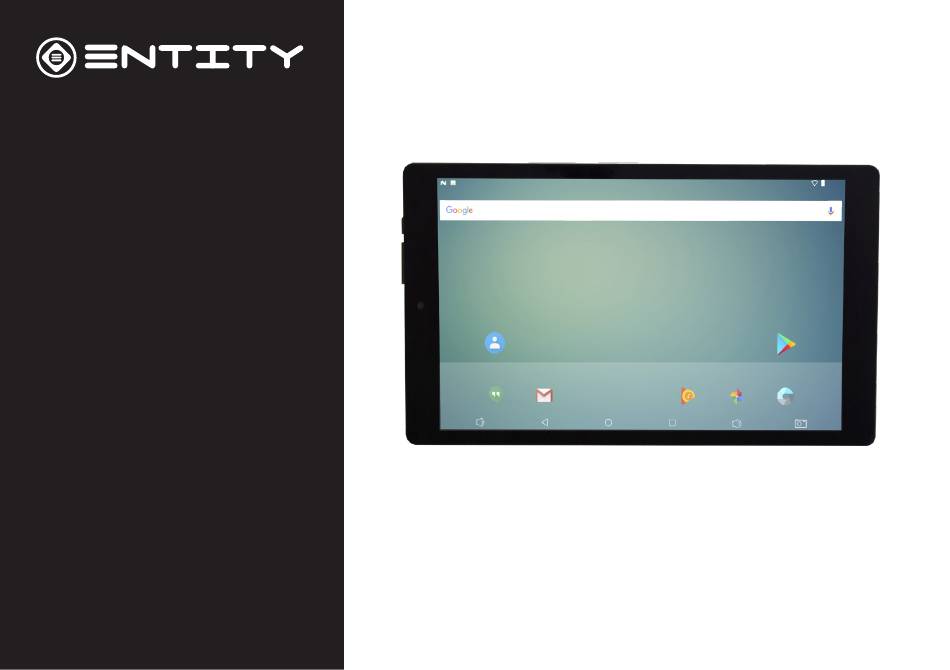

- Page 1 10.1” Tablet Instruction Manual YU004, YU005...
-
Page 2: Table Of Contents
Contents Getting Started Applications Moving a home screen icon Box Contents Removing a home screen icon Uninstalling an application Product Overview Creating Application Folders Changing your wallpaper and widgets Features To download new apps Device Description External Storage Home Screen Layout Inserting a Memory Card Quick Settings Menu Formatting a microSD card... -
Page 3: Getting Started
Getting Started Congratulations on choosing to buy an Entity product. All products brought to you by Entity are manufactured to the highest standards of performance and safety. Before use, please read this manual carefully. It gives important instructions about safety, use and maintenance of your Tablet. -
Page 4: Features
Features Browse the Web Enjoy your media library anywhere Visit your favourite websites. Portable powerhouse plays your chosen music, videos and photos. Check your e-mail microSD memory card reader Keep in touch with friends and family. Browse the world’s most popular video-sharing community. Watch Youtube™... -
Page 5: Product Overview
Product Overview Device Description... - Page 6 Name Description Power Press to turn the unit on, or to turn the screen on or off. Press and hold to access the Power Off menu. Volume +/- Control device output volume. Use internal MIC to record sound. Micro USB Connect to a USB device.
-
Page 7: Home Screen Layout
Home Screen Layout Status Google Search Google View All Pre-Installed Apps Android Back Recent Apps Home Volume Volume Down... -
Page 8: Quick Settings Menu
Quick Settings Menu To access the quick settings, touch the top of the screen and pull down to open the menu. 1. Brightness: To adjust the screen brightness. 2. WiFi - Tap on the icon to turn on/off your WiFi. 3. -
Page 9: About The Screen
About The Screen This tablet is equipped with an easy to use touch screen. The multi-touchscreen tablet only requires gentle fingertip pressure on the screen to activate the necessary feature. Note: To avoid damage to the device touch screen, avoid using excessive force. Also this device does not support the use of other control objects, e.g. -
Page 10: Using The Tablet
Using The Tablet Before First Use • Before first use, please make sure the tablet is fully charged. If not, connect the power adaptor or connect to a computer by USB cable, so your tablet can charge fully. • Charging time is at least 6 hours the first time, 4 hours thereafter. Note: This tablet contains a Built-in type rechargeable Liion battery, the charger must be a standard adaptor (Input: AC100~240V 50/60Hz), this Tablet includes DC charging. -
Page 11: Tablet Power
Tablet Power Turning The Tablet On or Off: - To turn the tablet on: Press and hold the Power ket until the LCD screen turns on. Wait until the Home screen appears; the tablet is now ready for use. - To turn the tablet off: Press and hold the Power key until the Device Options menu appears. -
Page 12: Touchscreen Actions
It is strongly recommended that you sign into/register for a Google account (needed for the installation of new apps). When prompted it is also recommended that you agree to backing up your tablet to the Google account. This creates copies of all of your files should you ever need to restore the tablet. Touchscreen Actions You can control the functions of tablet using your finger with the following actions: Touch... -
Page 13: Connections
Touchscreen Actions WiFi The Notification bar displays icons that indicate your tablet’s Wi-Fi status. Notification that an open Wi-Fi network is in range. Connected to a Wi-Fi network (waves indicate connection strength). [No Icon] There are no Wi-Fi networks in range, or the Wi-Fi is turned off. Turn on the Wi-Fi if it is not already on. To turn on the Wi-Fi: Go to the Home screen by pressing the home key (O). -
Page 14: Bluetooth
Touch the Wireless password box to show the on-screen keyboard and then use it to enter the password. Touch Connect to confirm. When you have successfully connected to a Wi-Fi network, the Notification bar in the upper right of the screen will show a Wi-Fi signal indicator. -
Page 15: Charging The Tablet
Charging The Tablet When the Tablet has finished charging, the battery icon will become green and stop scrolling on the screen. In order to prolong the service life of the Tablet, we recommend using the full battery power until flat before recharging it. •... -
Page 16: Applications
Applications Moving a home screen icon Touch and hold your finger onto the icon until a small menu appears. You can then slide it to the desired location, and release your finger. Removing a home screen icon Touch and hold the icon until the small menu appears and then slide it over towards the remove icon. -
Page 17: Creating Application Folders
Creating Application Folders To organise your apps, drop one app icon over another on the home screen and the two icons will create a folder. You can add many more apps into it. To removve one app from a folder, touch, hold, and drag it to ‘Remove’ (appearing on the top of the screen). -
Page 18: External Storage
External Storage Inserting a Memory Card This tablet accepts microSD memory cards. This allows you to increase the memor capacity of your tablet and also to play media files that are stored on the memory card (e.g. music, photos or video files). To insert a memory card: •... - Page 19 • Touch ‘ ’drop down menu to choose ‘Storage Settings’. • Touch ‘Format as Internal’ and then follow up with ‘Erase & Format’ process to complete.
-
Page 20: File Management & Security
File Management & Security Transfer Files To Your Tablet From a computer, use the USB lead provided in the package box. From a USB device with a standard male USB connection, you will need to purchase a female USB to micro USB lead in order to connect it (e.g. USB card reader, USB connection from a camera etc.). -
Page 21: Syncing Media Automatically
Syncing media automatically on your Android devices For this process to work you must be connected to a WiFi Network. • Open ‘Google Photos’ and select your google account. • Turn on ‘Auto-Backup’, if it is not turned on already. •... - Page 22 Encryption In order to protect your personal data on this tablet, in the event of the device being stolen, you can encrypt your tablet. Go to ‘Settings ’- ‘Security & location’ - ‘Encryption & credentials’ - ‘Encrypt tablet’,Make sure to follow correctly the onscreen instructions.
-
Page 23: Product Support
Product Support Troubleshooting If your device is frozen Press the ON/OFF button for at least 10 seconds or use the hardware reset. To use the Hardware reset, press the “pinhole reset” button by using a sharp object such as a toothpick. If your device doesn’t turn on Charge your device then switch on normally. - Page 24 If you want to restore your product (erase all your settings? forgotten password?) If your device is turned on • Go to ‘Settings’ - ‘System‘ - ‘Reset options‘. • Choose ‘Erase all data(Factory reset)‘, then ‘Reset tablet’: this will erase all your files, settings, applications, so make sure you have backed-up your data in your Google account or a hard drive.
-
Page 25: Specification
Specification Processor RK3126C (Quad core 1.2GHz) Memory RAM: 1GB Storage Built-in flash memory 16GB - extendable up to 32GB Network/Wi-Fi 802.11b/g/n 1 x Micro USB Other Ports Headphone Port, 1*BS plug charger, Micro SD slot Cameras Front 0.3Mp Rear 2Mp Audio 3.5mm headphone jack;... -
Page 26: Safety Information
Clean with a dry cloth only. Make sure the Tablet is turned off before cleaning. Do not use liquid or abrasive cleansers. • Only use this Tablet for its intended domestic use. Entity will not accept any liability if the Tablet is subject to improper use, or failure to comply with these instructions. - Page 27 • Keep the power supply cord away from any parts of the Tablet that may become hot during use. • Use of an extension cord with the Tablet is not recommended. • This Tablet should not be operated by means of an external timer or separate remote control system. •...
-
Page 28: After Sales Support
After Sales Support If you need help using your product, please contact Giani Ltd:- • Telephone: 0161 480 6204. • Email: info@gianiuk.co.uk. • Website: www.gianiuk.co.uk. (Replacement instruction manuals are available to download from the website). PRODUCT GUARANTEE (UK ONLY) If your product ceases to function within 1 year from the date of purchase, the retailer will replace it free of charge, provided: •... - Page 29 2011/65/EU...
