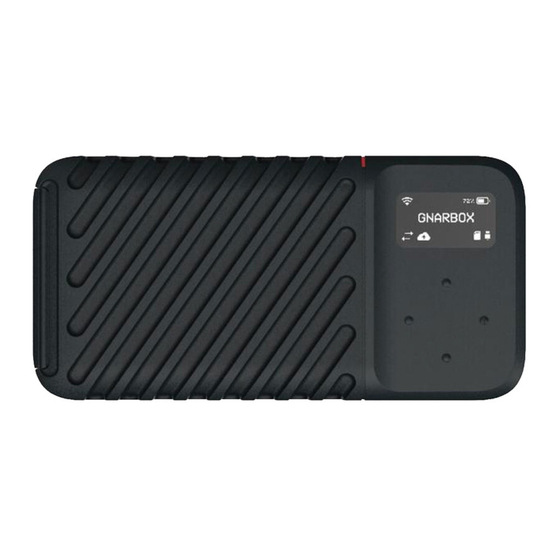

GNARBOX 2.0 SSD OVERVIEW
1. LED
2. OLED Screen
3. Micro HDMI
3
4. SD
5. On-board buttons
4
6. USB-C
7. Carrying Lanyard
6
8. USB-C
9. Battery latch
10. Battery
OLED GUIDE
1. WiFi indicator
2. Connected to Cloud
1
3. Transfer in progress
GNARBOX
4. Connected device
5. Battery life
3
2
2 / Head to www.gnarbox.com/userguide for the complete user manual
1
2
5
LED GUIDE
1. RED = GNARBOX connected to power
72%
5
<
>
2. OFF = GNARBOX not connected to power
<
>
3. AMBER = System Error, please contact Customer Support
4
<
>
8
9
10
7
BUTTON GUIDE
1. Up button
press for Tasks List
2. Left button
press to step back toward Home
3. Right button
press to navigate right
1sec hold to Power On
3sec hold to Power O
4. Down button
press for additional options
1
2
3
4
Advertisement
Table of Contents
Summary of Contents for GNARBOX 2.0 SSD
- Page 1 3. AMBER = System Error, please contact Customer Support press to navigate right < > 1sec hold to Power On 3sec hold to Power O 4. Down button press for additional options 2 / Head to www.gnarbox.com/userguide for the complete user manual...
-
Page 2: Mobile Applications
* May require additional updates for compatibility with GNARBOX 2.0 SSD. Please contact support if you are having any issues at support@gnarbox.com or live chat with a representative on our website at gnarbox.com. - Page 3 Jane’s WiFi 7. Avoid frequently overcharging your batteries 8. When ports are not in use, close doors to protect GNARBOX electronics from dust and moisture 9. Only allow GNARBOX authorized service providers to perform repairs on your GNARBOX 10. Do not connect non-GNARBOX international adapters to the Power Adapter Visit www.gnarbox.com for walkthroughs and tutorials.
-
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS Component Specifications Power Specifications Battery Specifications 128GB, 256GB, 512GB, or 1TB NVMe PCIe SSD 3-6 hours of continuous use Voltage: 7.6V 2-hour recharge with supplied cable and power adapter Intel Quad Core, 2.40GHZ CPU Capacity: 3000mAh 1-hour recharge to 80% with supplied cable and power adapter 4 Core Intel HD Graphics GPU Watt-hours: 22.8Wh Working temperature range: 0°C to 40°C... - Page 5 SUPPORT & COMMUNITY Who we are GNARBOX was founded in 2015 with the goal of making the creative process easier for anyone with a camera. We are a small, hardworking team in Los Angeles, backed by an active community of photographers and videographers from around the world. We welcome you to the community!
- Page 6 EU Compliance Statement: MyGnar, Inc. hereby declares that this wireless device is in compliance GNARBOX Power Adapter, or USB-C to C cable could result in electrical shock. If the GNARBOX 2.0 with the essential requirements and other relevant provisions of the R&TTE Directive.
