Summary of Contents for Pacbrake Powerhalt PH3

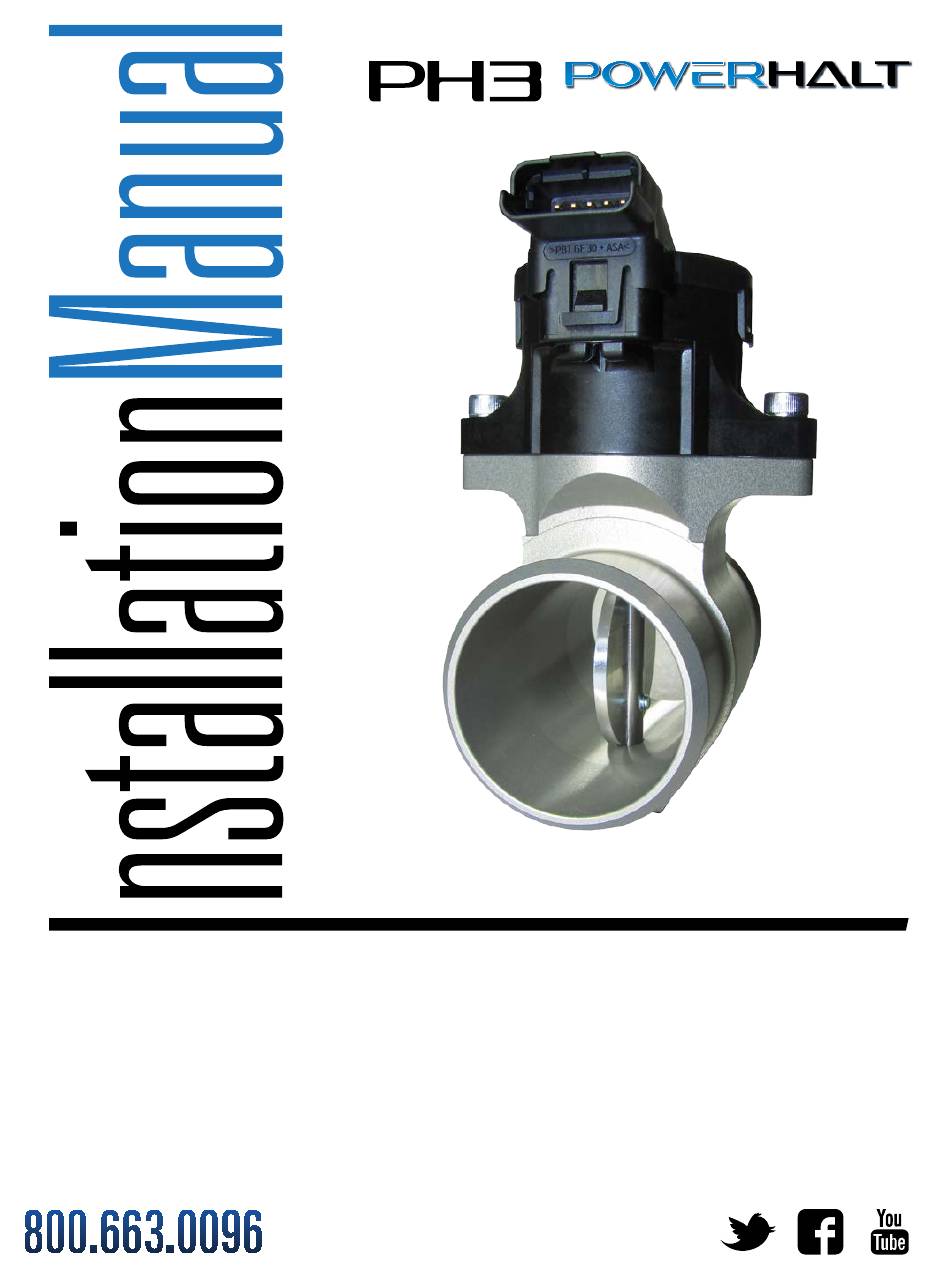

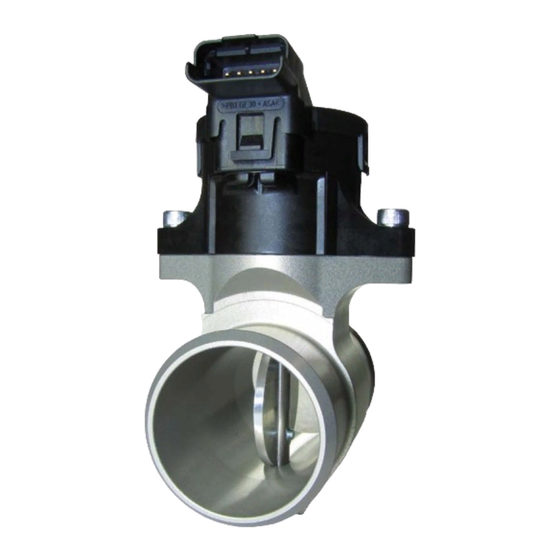

- Page 1 AIR INTAKE EMERGENCY SHUT-OFF V AL VE AIR INTAKE EMERGENCY SHUT-OFF V AL VE PH3 AIR INTAKE EMERGENCY SHUT-OFF VALVE WITH POWERGUARD SMART OVERSPEED LIMITER AUTO ELECTRIC WITH AUTO RESET For LTW20 / 20KW / BV-4LEZ Engines www.powerhalt.com...
- Page 2 • Maximum ambient air temperature at the valve should not exceed 120°C. • All hoses, adapters, and fittings must be suitable for the vibration of the engine application, and of reinforced type. *If unsure of your vibration requirement, contact Pacbrake. • Flexible hose gaps should be kept to a minimum and the overall pipe quality and integrity from the shut-off valve to the intake manifold should be confirmed.
-
Page 3: Kit Contents
Wiring Harness (1) (a 14″ extension is ideal) PowerGuard Controller (1) • Utility Knife Membrane Switch (1) • " Metal Unibit ⁄ 2" Silicone Hose (2) • " Hex Allen Key ⁄ PowerHalt is a registered trademark of Pacbrake Co. - Page 4 L6319 PH3 ELECTRIC + AUTOMATIC ACTUATION Thank you for your purchase of a PowerHalt Air Intake Emergency Shut-Off Valve by Pacbrake. Please read the entire manual before you begin to ensure that you can complete the installation once started. Should you have any issues during the installation, please call technical support at 800.663.0096.
-
Page 5: Drill Templa Te
NOTE: When printing out the drill template for use make sure your printer is not scaling the image or stretching it. Open your print dialogue box and select print at 100% scale. PowerHalt is a registered trademark of Pacbrake Co. -
Page 6: Switch Features
STATE 3 – System Error: If there is a system error detected during the initial power-up of the PowerGuard controller, the s will flash an error code as per the below sequence; 1. Rapid alternating illumination of the red and green lights indicates a system error 2. A one second pause is followed by a flash code where the number of flashes is the error code as per Flash Error Codes, as shown on page 7. 3. This cycle repeats until the error is fixed and the power to the controller is cycled. PowerHalt is a registered trademark of Pacbrake Co. - Page 7 • Ensure the shut-off valve connector is fully installed and latched, then cycle power 3. Valve closes too slowly or not all the way • Inspect the shut-off valve for obstructions, and attempt to manually press the flap closed and open (feeling for any binding). If the valve does not operate smoothly, contact Pacbrake support at 800.663.0096. 4. Valve opens too slowly or not all the way • Inspect the shut-off valve for obstructions, and attempt to manually press the flap closed and open...
- Page 8 4. Once the engine stops wait 30 seconds until the valve automatically re-opens and the red turns off 5. Utilize the test mode as per PowerGuard Test Procedure to ensure that the automatic overspeed is functioning properly PowerHalt is a registered trademark of Pacbrake Co.
- Page 9 • Inspect all hoses and pipes for signs of wear or vibration related issues. • Inspect all wiring connections and routing to ensure correct strapping. • Inspect the PowerGuard controller with unit running to ensure the green light is flashing every 5 seconds. PowerHalt is a registered trademark of Pacbrake Co.
-
Page 10: Wiring Schematic
19594 96TH AVENUE SURREY, BRITISH COLUMBIA PowerHalt is a registered trademark of Pacbrake Co. Printed in Canada L6325 RE7 16.09.2016 Patents pending. Pacbrake is a registered trademark of Pacbrake Company. Other trademarks used herein are property of their respective holders.
