Summary of Contents for AVES Air

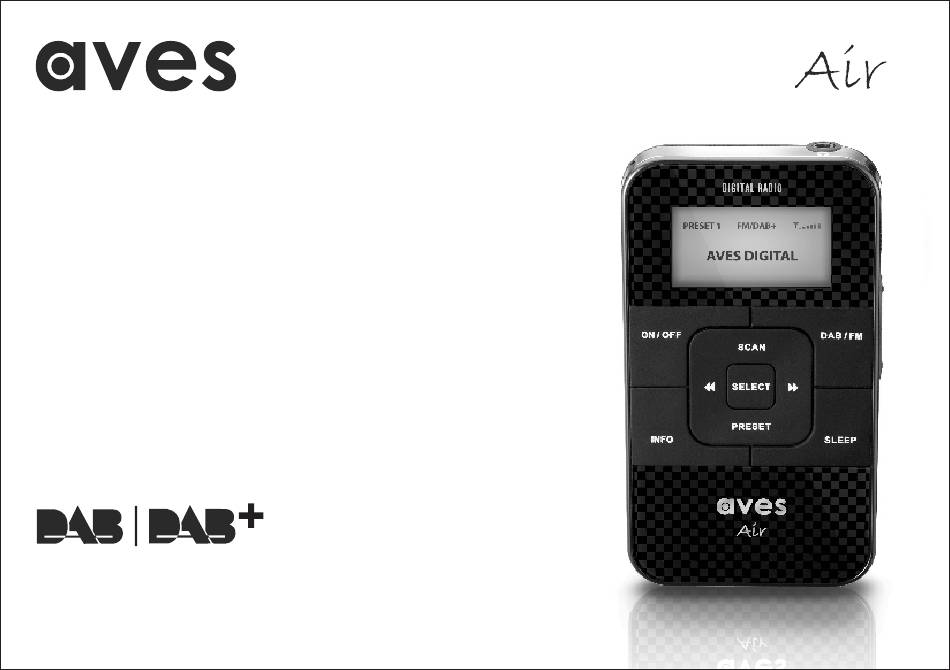

- Page 1 Digital Handheld Radio Instruction Book...
-
Page 2: Table Of Contents
Contents Welcome Controls What’s in the Box? You may also need Getting Started Using the FM Radio Using the DAB Radio Manual DAB Tuning Storing your Favourite Stations Recalling a Stored Station Setting the Time Changing the Display Using the Earphones Setting the Sleep Time Locking Keys Sound... -
Page 3: Welcome
Welcome Congratulations on purchasing this aves DAB/FM Radio. You can now listen to both DAB and FM frequencies, giving you access to a wide range of stations which, using DAB, will automatically tune. Please read the warning section (on page15) carefully before using your radio. -
Page 4: Controls

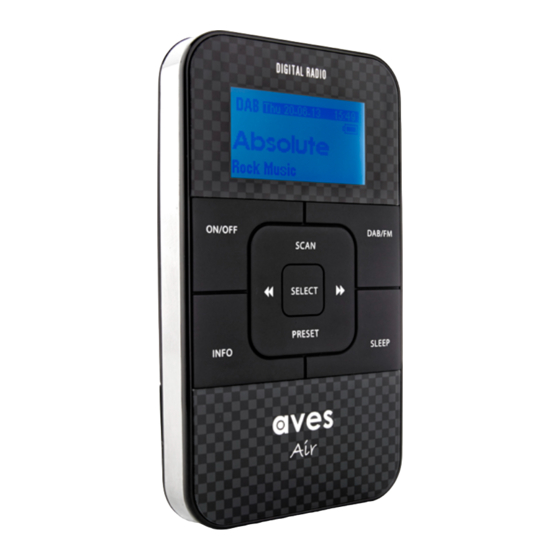

Controls Earphone/wire antenna LCD Display DAB/FM button On/Off button Volume up button Scan button Volume down Backward button Forward button button Preset button Select button Sleep button Info button Battery cover Instruction Book... -
Page 5: What's In The Box
What’s in the Box? Digital Hand Held Radio Earphones Micro Fiber bag You may also need Two AAA size (UM-4,R03) batteries (not included) Instruction Book... -
Page 6: Getting Started
Getting Started Place two AAA size (UM-4,R03) batteries into the battery compartment at the back of your Signal DAB/DAB+/FM radio. Make sure the “+” and “-” on the To view the signal strength, press the INFO button batteries correspond to those on the inside of repeatedly until the display shows the signal bar the battery compartment. -
Page 7: Using The Fm Radio
Using the FM Radio Turn on your radio by pressing the ON/OFF button. Switch to FM by pressing the DAB/FM button. You can select the desired frequency manually by pressing the button to move up or down. Fine tuning can be done by pressing once and repeatedly until the desired frequency is found. -
Page 8: Manual Dab Tuning
Manual DAB Tuning To select the manual tuning function, press and hold the INFO button until the display shows “Manual Tune”, then press the SELECT button to confirm. Press the button to move through the DAB channels. The display will show “5A to 13F” and their associated frequency. -
Page 9: Storing Your Favourite Stations
Storing your Favourite Stations You can store your favourite stations to the memory. This will enable you to access your favourite stations quickly and easily at a later date. Press and hold the PRESET button, the letter “P” followed by a number from “1 to 10" and the word “empty”... -
Page 10: Setting The Time
Setting the Time When you first turn on your radio it will automatically synchronise to the local time by searching the DAB signal, it will continue to search the time information until it is synchronised. If the radio cannot find a DAB frequency to set the clock, you can use the FM mode (some FM stations also transmit time information). -
Page 11: Changing The Display
Changing the Display When using the radio in either the DAB or FM mode you can view what appears on the display by pressing the INFO button. Press the INFO button repeatedly to scroll through the options. DAB Mode FM Mode DLS (Scrolling Text) Radio Text Program Type... -
Page 12: Using The Earphones
Using Earphones You can listen to your radio using earphones with a 3.5mm jack. Plug the earphones into the socket on top of your radio. Setting the Sleep Time The “sleep function” allows you to program the radio to switch itself "off ”... -
Page 13: Locking Keys
Locking Keys Pressing the ON/OFF and INFO buttons together in the “power on” mode will activate the “keylock” function. When “keylock” is active, the display will show: Press the ON/OFF and INFO buttons together again to unlock. Sound Sound Type Volume When using the FM radio you can choose You can select the desired volume using... -
Page 14: Resetting Your Radio
Resetting your Radio You can “reset” your radio by the following steps: Press and hold the INFO button to enter into “reset menu”. Use the button to scroll through the options. Press the SELECT button to confirm selection. Please Note: All presets stations in DAB and FM will be erased. -
Page 15: Troubleshooting
Troubleshooting Problem Suggested Action Check batteries are correctly inserted into the radio. No Power Check battery life icon. Check that the volume control is NOT at the minimum setting. No Sound Adjust the earphone location and position to obtain the best signal reception. Radio Channel Reception is Poor Tune to the correct radio channel frequency. -
Page 16: General Specifications
General Specifications Power Consumption 0.4w Power Consumption(Standby) 0.15mW DAB Band lll and FM PLL radio Frequency Coverage Band lll 174.928 MHz to 239.200MHz (DAB) FM87.5-108 MHZ (FM) AAA size (UM-4,R03) batteries x 2 pieces Batteries Battery Life (Using Alkaline More than 8 hours Cells/normal volume) 3.5mm stereo earphones jack Earphone Socket... -
Page 17: Warnings
Warnings This product was designed and manufactured to meet strict quality and safety standards. There are, however, some operational precautions that you should be aware of: Read all warnings. Follow all instructions. Place the product on a firm and level surface. Avoid placing the product in places subject to constant vibration. -
Page 18: Maintenance
Warnings The product should not be exposed to “dripping” or “splashing” and that objects filled with liquids, such as vases, shall not be placed on or near the product. No batteries on this product should be exposed to excessive heat such as sunshine, fire etc. When replacing battery, only use the same type specified or equivalent. -
Page 19: Copyright
Aves Digital Limited reserves the right to revise this publication and to make changes in it from time to time without any obligation on Aves Digital Limited to notify any person or organisation of such revisions or changes. -
Page 20: Warranty Information
Warranty Information Aves Digital Limited warrants to the end user that this product will be free from defects in materials and workmanship in the course of normal use for a period of one year from the date of purchase. This guarantee covers breakdowns due to manufacturing or design faults; it does not apply in cases such as accidental damage, however caused, wear and tear, negligence, modification or repair not authorized by us. - Page 21 This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
- Page 24 Aves Digital UK Limited Unit 1, The io Centre, Fingle Drive, Stonebridge, Milton Keynes, Buckinghamshire, MK13 0AT, United Kingdom. Tel: +44 019 0831 9718 www.avesdigital.co.uk...
