Part 1 Product Overview

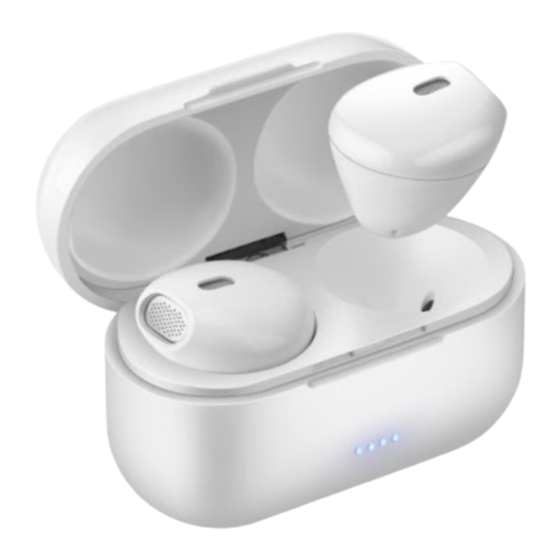

IP8-X is a pair of Bluetooth-connected Earbuds with its own charging case, giving you the freedom to
take your music anywhere in an elegant design.
Part 2 Parameter Configuration
Bluetooth Version
Frequency Band
Transmission Distance
Battery Capacity
Talk Time / Music Playtime
Maximum Playtime with Charging Case
Dimensions
Weight
User Manual
Model : IP8-X
Bluetooth V5.0 Ultra-Low Power Consumption
2.4GHz
Positive distance≤20m, Back distance ≤15m
30mAh (Earbuds) , 220mAh (Charging Case)
Up to 7 hours
Additional 63 hours
15.4 x 14.5 x 15.0 mm (Earbud)
4.2 grams (Earbud), 65 grams (Charging Case)
Advertisement
Related Manuals for Fantime IP8-X
Summary of Contents for Fantime IP8-X
-
Page 1: User Manual
User Manual Model : IP8-X Part 1 Product Overview IP8-X is a pair of Bluetooth-connected Earbuds with its own charging case, giving you the freedom to take your music anywhere in an elegant design. Part 2 Parameter Configuration Bluetooth Version Bluetooth V5.0 Ultra-Low Power Consumption... - Page 2 Multi-function Button is also called “MFB” Button. Part 3 User Guide 1. Choose Earmuffs 2. Wearing Earbuds 3. Charging 4. Power On/Off and Paring 5. Connect your device 6. Play Music 7. Calling 8. Change Language 9. Other Description 1. Choose Earmuffs According to the needs of wearing, choose the right and left earmuffs from the large, medium and small earmuffs.
- Page 3 “Power on” and “Connected”. Next, the LEDs of the Master Earbud will flash blue and red, this means "IP8-X" is attempting to establish a connection with your phone. The LED on the Second Earbud will turn off.
- Page 4 1) Make sure the Earbud is swithched off, then press and hold the earbud multifunction button for 2-5 seconds until the LED flash red and blue to turn on the earbud. 2) Turn on the Bluetooth function of the first phone, search for the Bluetooth name “IP8-X” and connect.
- Page 5 Q & A Q1: No connection between IP8-X and your Bluetooth device. A1: 1. Make sure IP8-X is fully charged and switched ON. 2. Check that your device is available and supports the A2DP Bluetooth Profile. 3. Move IP8-X closer to your device.
- Page 6 4. Please clean the connection point with a clean cotton cloth. If the above answer still does not solve your problem, please feel free to contact us and we will solve all the problems as soon as possible. Contact information: Facebook: fantime@szfantime.com Skype: km_fantime E-mail: Support@szfantime.com Website: www.szfantime.com Product Warranty Policy: 1.
- Page 7 Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
