Summary of Contents for CIVIQ Elkay LZS8WSS2K

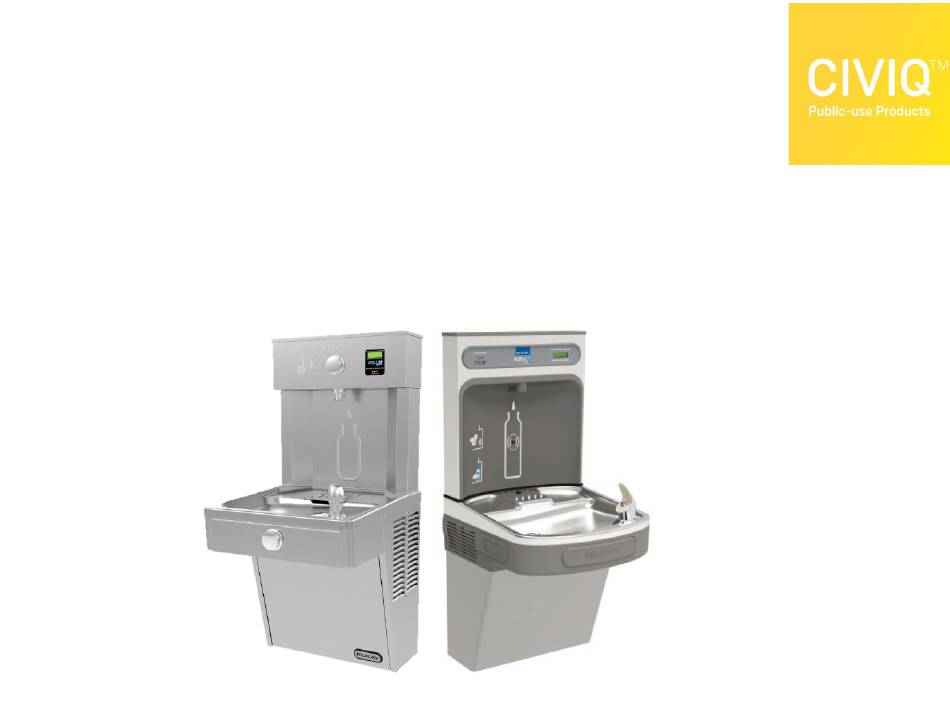

- Page 1 Trouble Shooting Manual & Preventative Maintenance Guide for Elkay LZS8WSS2K & LVRC8WS2K 14/05/2019...
- Page 2 Maintenance Guidelines Ø Clean the condenser once a year in low or normal traffic areas such as offices & quarterly in higher traffic areas, areas such a gyms, airports and schools. Ø Use warm soapy water to clean drinking solution products Ø...
- Page 3 Prior Service • Disconnect electrical supply to the unit before any service work Shut off water supply serving the unit before any service work • Make sure to dispense all water in the system. • Confirm condenser fan turns freely and there are no obstructions from other •...
- Page 4 Cleaning of Condenser • The condenser looks like a radiator and is located on the left side of a refrigerated product. • Remove 4 screws on bottom cover panel. Vacuum the condenser coils on. Replace lower panel. • You should be able to shine a flashlight on the outside of the coils and see the beam inside, when the coils are clean.
- Page 5 Cleaning of Bubbler • Bubblers : Mineral deposits on the orifice can cause water flow to spurt or not regulate. Mineral deposits may be removed from the orifice with a small round file not over 1/8” (3 mm) diameter or small diameter wire. CAUTION: DO NOT file or cut orifice material.
-
Page 6: Adjusting Water Temperature
Adjusting Water Temperature • Factory preset for 10ºC ± 5º To adjust turn screw clockwise for colder, counter clockwise for warmer. • Remove 4 screws on bottom cover panel. Cold control is mounted to the center of the bracket just under the upper shroud. - Page 7 Adjusting Water Stream Height • Factory preset at 35 psig (0.24 MPa) to adjust rotate screw clockwise raise stream and counter clockwise lower stream. • Remove 4 screws on bottom cover panel. The regulator is part of the solenoid, mounted to the left of the bracket just under the upper shroud.
-
Page 8: Filter Replacement
Filter Replacement Step 1: Determine when your filter needs to be changed Green – 100% filter life Yellow – Water is safe to drink but has 10% life left Red – Filter life is at 0% replacement required 14/05/2019... - Page 9 Filter Replacement Step 2: Remove Cooler Base Panel (Shroud) • Remove the panel at the base of the fountain, otherwise known as the shroud. This can be done with a manual screwdriver to remove the four flat head screws under the filler that secure the shroud to the base.
- Page 10 Filter Replacement Step 3: Shut off flow from water source With the shroud removed, you should have full access to the inside of the cooler. The filler’s anatomy should include some type of piping or valve that connects to the wall behind the filler.
- Page 11 Filter Replacement Step 4: Locate and replace filter This filter can be found at the far left side of the fountain. In order to remove the original Elkay EZH20 filter, grab the top of the filter, closest to the filler, and give it a firm twist counterclockwise.
- Page 12 Filter Replacement In order to remove the original Elkay EZH20 filter, grab the • top of the filter, closest to the filler, and give it a firm twist counterclockwise. This should loosen the filter from the filler and allow you to fully remove it. Remove the filter carefully, as it will likely contain slimy residue.
- Page 13 Filter Replacement Step 5: Test the waters When the filter is in place, turn the filler’s water source back on. Then, before re-affixing the shroud to the base, run about two gallons of water through the filler’s tap to activate the new filter. Sometimes, water pressure may cause an irregular flow.
- Page 14 Reset Filter Light If you have an older Elkay model, such as • the Elkay LZS8WSLK, you will likely have to follow up the Elkay EZH20 filter replacement process by manually resetting both the bottle counter and filter indicator light. This requires that you remove the head panel of •...
- Page 15 Reset Filter Light • By pushing the button for two seconds, you’ll notice that the front display will change. • When the display reaches “RST FLTR”, push the button again. • When you see “FLTR =”, press the button one more time so the display reads “FLTR=0”.
- Page 16 How to stop a continuously counting Bottle Filler • Remove the top cover panel at the bottle filler. • Lift the bottle filler forward and disconnect the purple (and yellow wire only used on bi level units) that connect to the drinking fountain and cap or tape those ends.
- Page 17 Intermittent or Erratic Water Flow • Filter capacity has been reached – replace water filter, Elkay filter 51300C. • Cooler menu is set to coldest setting – Adjust one button menu setting from “Water T” to Cold or colder setting. 14/05/2019...
- Page 18 • Wire disconnected from solenoid/push bar switch – identify correct wires and place onto solenoid or connect the push bar switches. • Solenoid or regulator valve defect – contact CIVIQ to supply a replacement part. 14/05/2019...
- Page 19 • Fan is not running, compressor is hot – Ensure the fan blade is free from obstruction. Replace fan motor if defective. Ensure fan is plugged into the fan wires. • Compressor is making a loud knocking/grinding noise. Contact CIVIQ as compressor may need replacement. 14/05/2019...
- Page 20 No water flow out of bottle filler • Water is coming out of fountain but not from bottle filler – Ensure the evaporator is pressurized. Ensure IR sensor board is plugged in. Check connection and press together firmly. Ensure Solenoid wires are connected. 14/05/2019...
-
Page 21: Refrigeration System
Refrigeration System Evaporator (Tube on Condenser Tube on Tank) (Fan Cooled) Drier Heat Exchanger (Suction and Cap line Bonded) Condenser Out in Cap Line Suction Back to Compressor Discharge to Condenser Compressor (R134a) 14/05/2019... -
Page 22: Plumbing System
Plumbing System Bubbler Evaporator Regulator 3/8” Water In Strainer / Solenoid Valve 14/05/2019... - Page 23 If you have any other queries, please contact CIVIQ on 1300 600 300 or email sales@civiq.com.au 14/05/2019...
