Summary of Contents for Arcticpro AP025miniR3

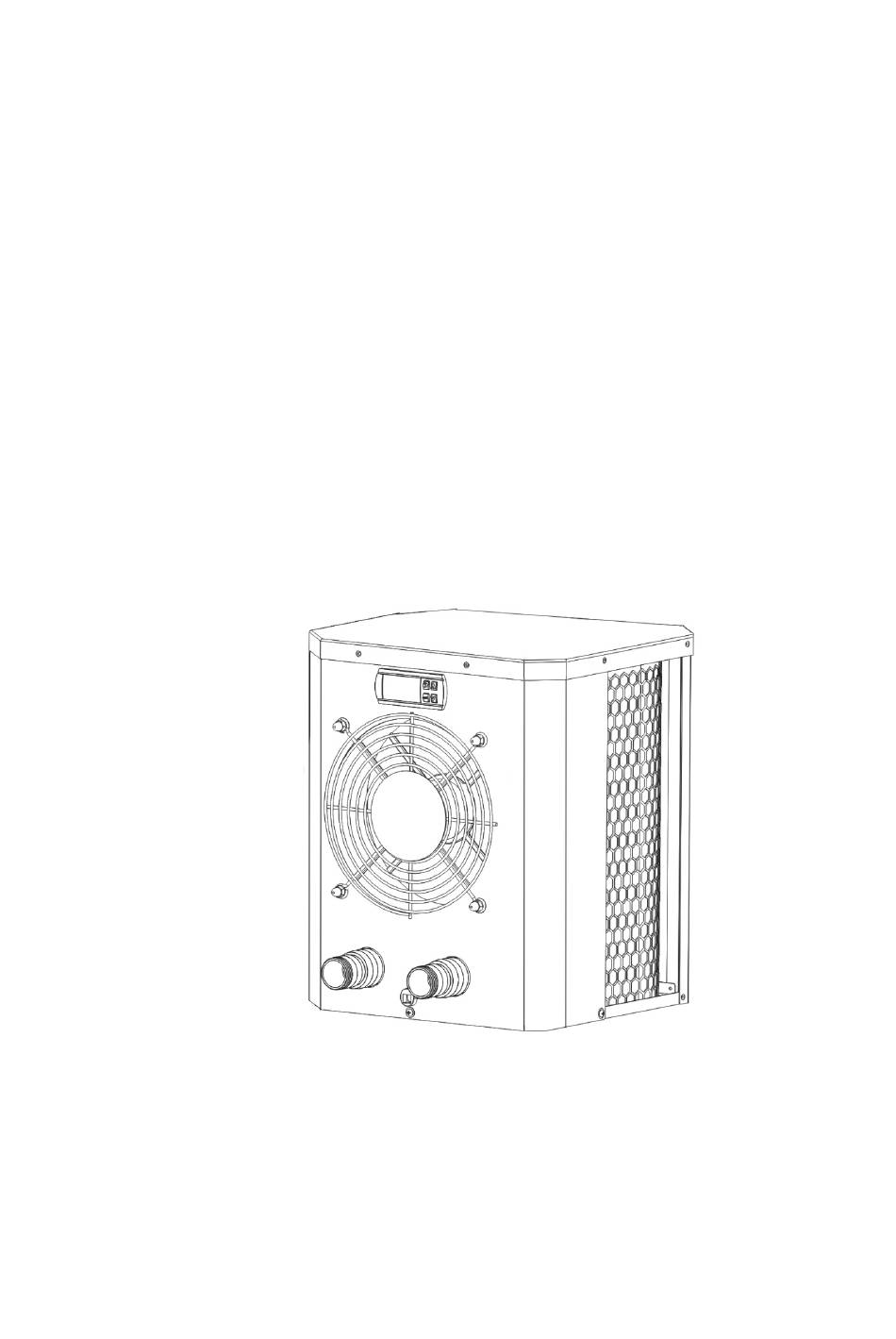

- Page 1 Mini Heater User and Service manual...
- Page 2 Regulation (EU) n° 517/2014 of 16/04/14 on fluorinated greenhouse gases and repealing Regulation (EC) n° 842/2006 Leak checks 1. Operators of equipment that contains fluorinated greenhouses gases in quantities of 5 tons of CO , equivalent or more and not contained in foams shall ensure that the equipment is checked for leaks. 2. For equipment that contains fluorinated greenhouse gases in quantities of 5 tons of CO2 equivalent or more, but of less than 50 tons of CO equivalent: at least every 12 months. Picture of the equivalence CO Load in kg and Tons amounting CO Load and Tons amounting CO Frequency of test From 2 at 30 kg load = from 5 at 50 Tons Each year Concerning the Gaz R32, 7.41kg amounting at 5 tons of CO , commitment to check each year. Do no release R32 coolant liquid into the atmosphere. This is a fluoride greenhouse effect gas covered by the Kyoto agreement with a global warming potencial (GWP) = 675-(see the European Community regulations on fluoride greenhouse effect gases Regulation (EU) No 517/2014). Training and certification 1. The operator of the relevant application shall ensure that the relevant personnel have obtained the necessary certification, which implies appropriate knowledge of the applicable regulations and standards as well as the necessary competence in emission prevention and recovery of fluorinated greenhouse gases and handling safety the relevant type and size of equipment.
-
Page 3: Table Of Contents
User and Service manual INDEX 1. Specifications 2. Dimension 3. Installation and connection 4. Electrical wiring 5. Display controller operation 6. Trouble shooting 7. Exploded diagram 8. Maintenance Thank you for using Mini Heater for your pool heating, it will heat your pool water and keep the constant temperature when the air ambient temperature is above 12 ℃ ATTENTION: This manual includes all the necessary information with the use and the installation of your heat pump. -
Page 4: Specifications
- Don’t weld the pipe if there is refrigerant inside machine. Please keep the machine out of the confined space when make gas filling. - Please always empty the water in heat pump during winter time or when the ambient temperature drops below 0 ℃ , or else the Titanium exchanger will be damaged because of being frozen, in such case, your warranty will be lost. - Please always cut the power supply if you want to open the cabinet to reach inside the heat pump, because there is high voltage electricity inside. - Please well keep the display controller in a dry area to protect the display controller from being damaged by humidity. - Action of filling gas must be conducted by professional with R32 operating license. 1. Specifications 1.1 Technical data pool heat pumps CE Standard, gas R32. -
Page 5: Dimension
Model AP025miniR3 AP045miniR3 AP060miniR3 *Heating Capacity at Air 28 ℃ , Water 28 ℃ ,Humidity 80% Heat Output (kW) 2.5 4.2 5.5 Power Consumption 0.59 1.00 1.31 (kW) COP 4.2 4.2 4.2 *Heating Capacity at Air 15 ℃ , Water 26 ℃ ,Humidity 70% Heat Output (kW) 1.9 3.2 4.2 Power Consumption 0.56 0.91 1.2 (kW) COP 3.4 3.5 3.5... -
Page 6: Installation And Connection
Item / (mm) AP025miniR3 90.4 130 375 310 300 363.5 AP045miniR3/ 116.5 200 460 434 365 432.5 AP060miniR3 Installation and connection Attention:... - Page 7 Please observe the following rules when installing the heat pump: 1. Any addition of chemicals must take place in the piping located downstream from the heat pump. 2. Always hold the heat pump upright. If the unit has been held at an angle, wait at least 24 hours before starting the heat pump. 3.1 Heat pump location The unit will work properly in any desired location as long as the following three items are present: 1. Fresh air – 2. Electricity – 3. Swimming pool filters The unit may be installed in virtually any outdoor location as long as the specified minimum distances to other objects are maintained (see drawing below). Please consult your installer for installation with an indoor pool. Installation in a windy location does not present any problem at all, unlike the situation with a gas heater (including pilot flame problems).
- Page 8 Note: The factory supplies only the heat pump. All other components, including two hoses & clamp will be provided by the user or the installer. 3.4 Electrical connection Before connecting the unit, verify that the supply voltage matches the operating voltage of the heat pump. The RCD plug has been included with power cable, which can offer electrical protection. Attention:...
-
Page 9: Electrical Wiring
Ensure the power plug is secure Never pull out the power plug during Never use damaged electric wires operation or unspecified electric wires. If the plug is not secure, it may cause an electric shock, over-heating or Otherwise, it may cause an electric Otherwise it may cause an electric fire shock or a fire due to over-heating. shock or a fire. After all connections have been made and checked, carry out the following procedure: 1. Switch on the filter pump. Check for leaks and verify that water is flowing from and to the swimming pool. 2. Connect power to the heat pump and press the On/Off button on the electronic control panel. The unit will start up after the time delay expires (see below). 3. After a few minutes, check whether the air blowing out of the unit is cooler. 4. When turn off the filter pump, the unit should also turn off automatically. Depending on the initial temperature of the water in the swimming pool and the air temperature, it may take several days to heat the water to the desired temperature. A good swimming pool cover can dramatically reduce the required length of time. Time delay - The heat pump has a built-in 3-minute start-up delay to protect the circuitry and avoid excessive contact wear. The unit will restart automatically after this time delay expires. If first power on or additional power interruptions, the heat pump starts 10s later after pressing ‘ON/OFF’ button. 3.5 Condensation The air drawn into the heat pump is strongly cooled by the operation of the heat pump for heating the pool water, which may cause condensation on the fins of the evaporator. The amount of condensation may be as much as several litters per hour at high relative humidity. This is sometimes mistakenly regarded as a water leak. 4.Electrical wiring... - Page 10 4.1 Swimming pool heat pump wiring diagram AP025miniR3 4.2 Swimming pool heat pump wiring diagram AP045miniR3/ AP060miniR3...
-
Page 11: Display Controller Operation
NOTE: (1) Above electrical wiring diagram only for your reference, please subject machine posted the wiring diagram. (2) The swimming pool heat pump must be connected ground wire well, although the unit heat exchanger is electrically isolated from the rest of the unit. Grounding the unit is still required to protect you against short circuits inside the unit. Bonding is also required. Disconnect: A disconnect means (circuit breaker, fused or un-fused switch) should be located within sight of and readily accessible from the unit. This is common practice on commercial and residential heat pumps. It prevents remotely-energizing unattended equipment and permits turning off power at the unit while the unit is being serviced. 5. Display controller operation 5.1 The buttons of LED wire controller... -
Page 12: Trouble Shooting
When the heat pump is running, the LED display shows the water inlet temperature. LED 1 is on when compressor is running. LED 2 is on when failure occurs. 5.2 Turn on/off the heat pump Press to turn on the heat pump, the LED display shows the water setting temperature for 5s, then show water inlet temperature. press again to turn off the heat pump. 5.3 Set the water temperature Press or directly to adjust water temperature (range:.10—42℃ ) Press to save the setting then exit. NOTE: the heat pump can run only if the water circle/filtration system is running. 5.4 Parameter checking Press or to choose the code d0/d1，press ，it will enter the parameter checking, Press again, it will show the measured value. Lastly press to exit. Code Parameter d0 Ambient temperature d1 Water in temperature Notice: It can’t set the Parameter data by end-users. 6. Trouble shooting 6.1 Error code on the LED controller... - Page 13 Malfunction Code Reason Solution 1. Ambient temperature is out 1. Wait the ambient temperature Too low or too high of operating range: rising to 13℃ or cooling down to ambient temperature 40℃ to res-start. 12℃ - 42℃ . protection 2. Replace the new controller. 2. Controller failure. Water temperature sensor Water temperature sensor Replace the new water failure open circuit or short circuit. temperature sensor. Ambient temperature Ambient temperature sensor Replace the new ambient sensor failure open circuit or short circuit. temperature sensor. 1. Low pressure switch It must be repaired by the disconnected or failure. Low pressure protection professional technicians.
-
Page 14: Exploded Diagram
1. Verify water temperature LED wire controller reaching to setting value, HP setting. displays the actual under constant temperature 2. Startup heat pump after a few water temperature. status. minutes. 2. Heat pump just starts to run. 1. Check the cable connections between the motor and fan, if necessary, it should be replaced. LED displays actual 1. Fan NO running. 2. Check the location of heat Short running water temperature, no 2. Air ventilation is not enough. pump unit and eliminate all error code displays. 3. Refrigerant is not enough. obstacles to make good air ventilation. 3. Replace or repair the heat pump unit. 1. No action. Water stains on heat 1. Concreting. 2. Check the titanium heat Water stains pump unit. 2. Water leakage. exchanger carefully if it is any defect. 7. Exploded diagram AP025miniR3... - Page 15 No. Spare parts No. Spare parts Top cover Power cord buckle Pillar Fan and fan motor assembly Ambient temp. sensor Front panel Transition tube Base Gas collecting pipe Titanium heat exchanger Capillary Coupling tube Electric box Water in temp. sensor Cilp Gas collecting pipe Compressor capacitance Gas return piping Fan motor top plate Low pressure switch Controller Compressor Front grill Evaporator AP045miniR3/ AP060miniR3...
- Page 16 No. Spare parts No. Spare parts Pillar Fan blade Top cover Front grill Fan blade Exhaust pipe Power cord buckle Ambient temp. sensor Base Electric box Titanium heat exchanger Fan capacitor Water in temp. sensor Capillary Gas collecting pipe Controller Low pressure switch Copper pipe Compressor Low pressure switch Compressor capacitance clip Gas return piping Compressor capacitance Copper pipe Front panel assemble Evaporator Fan motor Fan blade...
-
Page 17: Maintenance
8. Maintenance (1) You should check the water supply system regularly to avoid the air entering the system and occurrence of low water flow, because it would reduce the performance and reliability of HP unit. (2) Clean your pools and filtration system regularly to avoid the damage of the unit as a result of the dirty of clogged filter. (3) You should discharge the water from heat pump if it will stop running for a long time (especially during the winter season). (4) In another way, you should check the unit is water fully before the unit start to run again. (5)When the unit is running, there is all the time a little water discharge under the unit. - Page 18 A0162MHS01...
