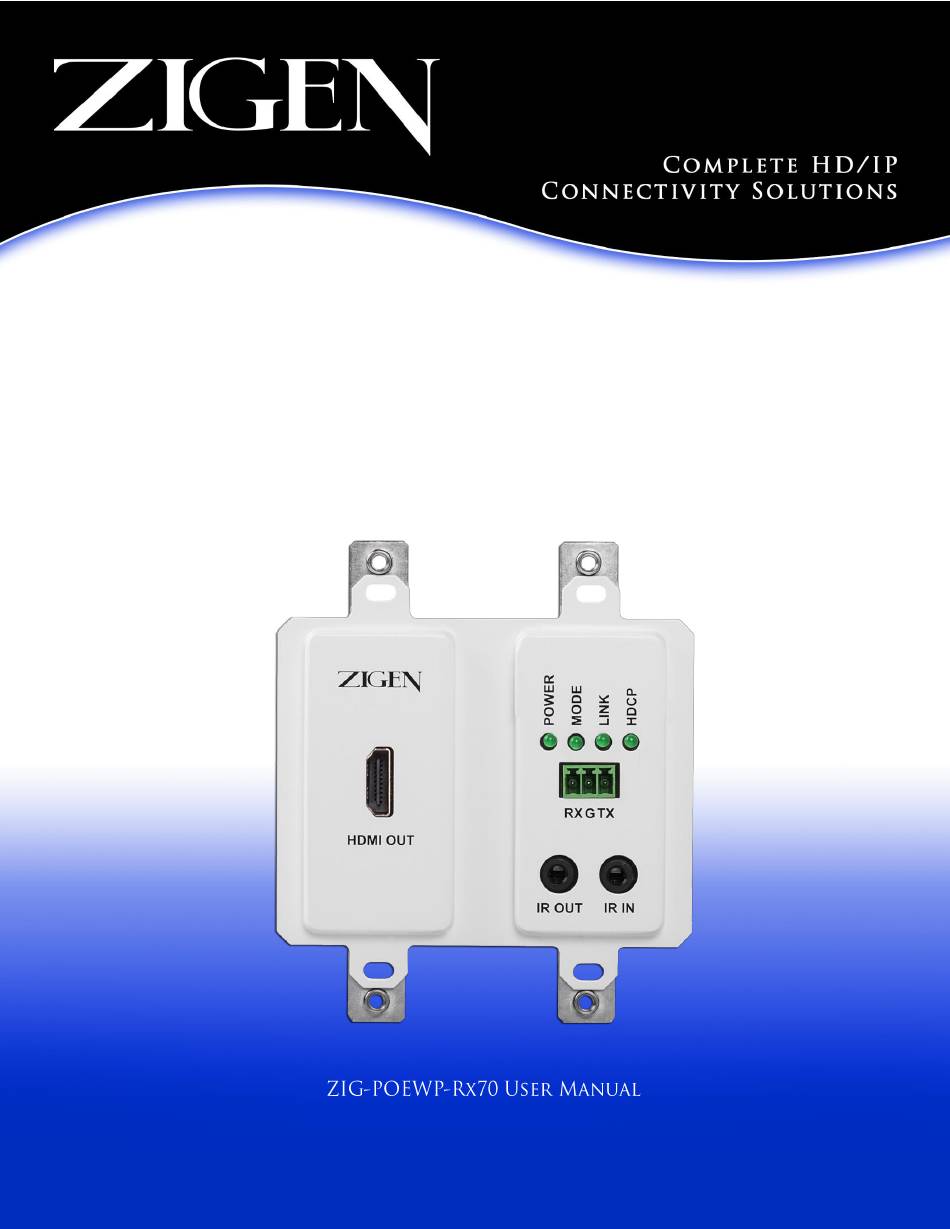

- Page 1 ZIG-POEWP-Rx70 HDMI Wall Plate Receiver HDBase-T Receiver Over Single CAT5e/6/7 70m, IEEE POE Powered, 4K, IR, RS232...
- Page 2 Important Safety Instructions 1. Do not use this product near water. 2. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 3. Do not install or place this product near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Page 3 Return Policy If you would like to return a Zigen product, it can be done within 30 days of purchase for a full refund, less shipping and handling. Zigen will not be responsible for shipping and handling of product returns. Returns will only be accepted of products with proof of purchase, products in the original packaging with zero to minimal use and a Return Merchandise Authorization RMA number provided by Zigen.
- Page 4 Contacting Zigen Technical Support Tel: (818) 654-5252 Fax: (818) 654-5355 8:00AM - 5:00PM (PST) Email info@zigencorp.com www.zigencorp.com Mailing Address Zigen Corp. c/o Customer Service 16135 Wyandotte Street Lake Balboa CA 91406...
- Page 5 Features HDMI Wall Plate Receiver • IEEE POE – remote or source – can connect to IEEE POE device for power or can connect directly to a 5VDC source via 2-pin phoenix style connector on the back. • Supports digital video formats up to Ultra HD 4K/2K, 60Hz, 4:2:0 pixel format •...
- Page 6 Specifications Inputs HDBase-T Receiver Over Single CAT5e/6/7 Power – On back – 5VDC direct or IEEE POE from RX or switch Outputs HDMI, IR. RS-232 Distance between TX and RX Full HDBaseT - 230’ or 70M @ 4K/60 4:2:0 8-bit Copy Protection Compliance HDCP –...
- Page 7 Zigen or your reseller. © 2015 Zigen, Corp. All Rights Reserved. All trademarks are the property of their respective owners. Zigen, Corp. reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice.
- Page 8 Table of Contents Introduction Front Panel ....................... 9 Back Panel ......................10 Connection Example ………………………………………………………….….……... 11...
- Page 9 Front Panel HDMI Output – Connect HDMI cable to display, up to 4K UHD. Connect RS-232 connect to phoenix connector Connect IR Emitter Connect provided IR Receiver...
- Page 10 Back Panel HDBaseT Receiver – Connect RJ45 up to 70 meters (230 feet) CAT5e, 6, 6a. This is the connection to an HDBaseT Transmitter such as the ZIG-POE-70Tx or ZIG-PS-82. 5 VDC Power connection – if NOT using POE power, you can connect a 5VDC supply via phoenix style connectors.
- Page 11 Connection Example Example is showing our HDBaseT Transmitter ZIG-POE-70 connected to the ZIG-POEWP-Rx70 HDBaseT receiver wall Plate with IR and RS232 control. Connect sources to ZIG-POE-70Tx – HDMI Connect ZIG-POEWP-Rx70 to Display via HDMI Connect your Source. Turn on the Source and TV...
