3.4 Installation of the power supply

A. Remove the back panels (behind the canisters) of the Machine
B. Remove the right hand side metal box
C. Remove the side plate of the power supply unit (Item 4) and use it as a marker
D. Mount the power supply unit as it is in the picture
E. Power the power supply unit
F. Properly hide and fix the cables
G. Assembly the machine

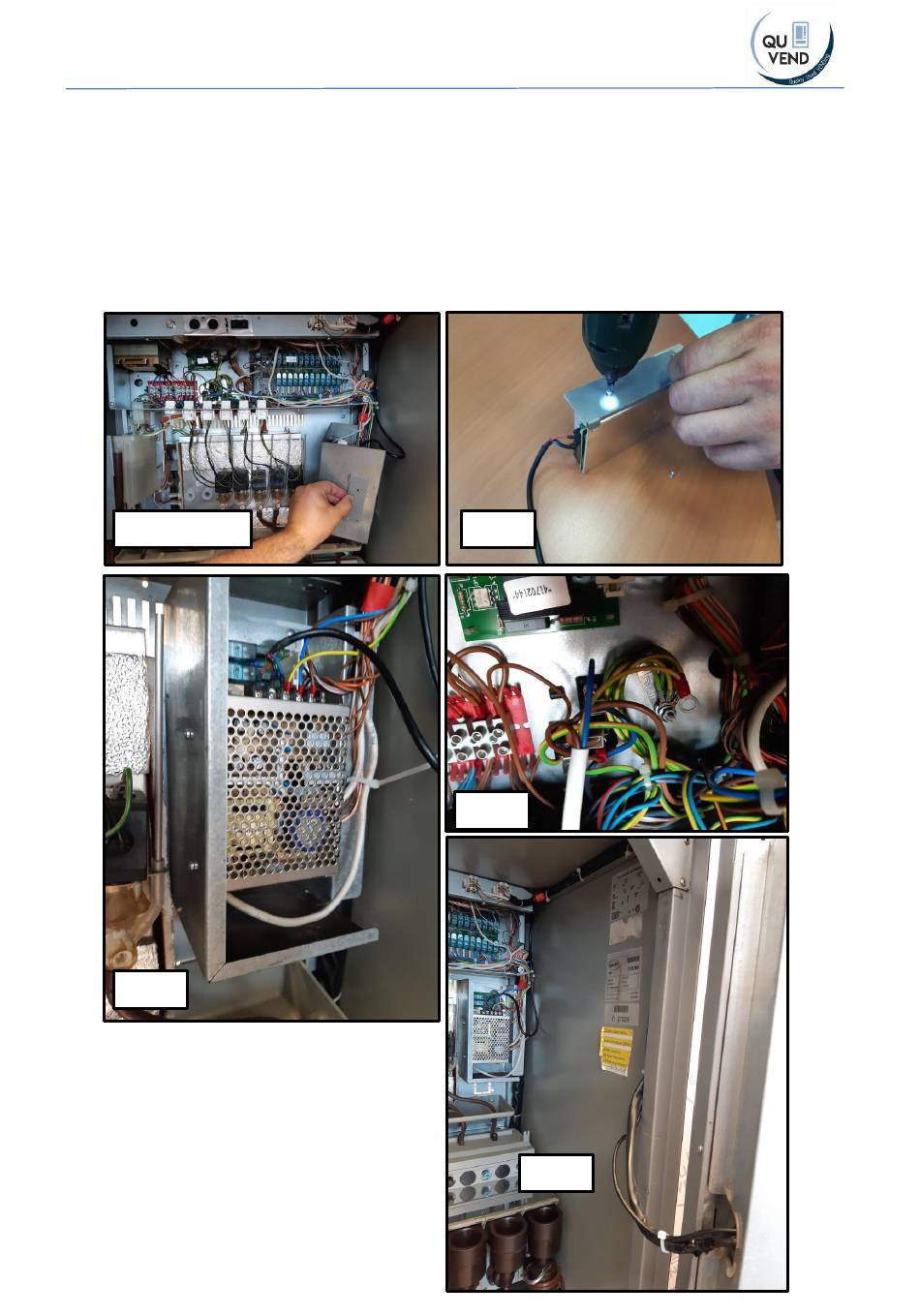

Step A, B, C
Step D
Step C
Step E
Step F
