LPA LumiTray Installation And Operating Instructions

LumiTray™ - LED Insert
Installation and Operating instructions

Standard Installation

Ensure mains is disconnected from the luminaire before installation or
servicing.
Remove fasteners from the diffuser frame and remove the diffuser from
•
the fitting
Unscrew the knurled nuts located on the gear tray, lower the gear tray
•
so the cables behind can be accessed
Unplug the gear tray from the housing by unplugging the connector
•
located on the rear of the gear tray.
Remove existing connector cables from the cage clamp located
•
internally on the back of the housing
Wire supply cable 'A' into the cage clamp on the housing
•
If Dali Dimming is required, wire the 2 core dimming input cable from
•
the Dali controller into the connection block labelled 'Dimming'
This connection terminal is non polarised
•
Offer LumiTray up to the housing, plug connector 'A' into fused terminal
•
block 'B'
A
Mount the LumiTray onto fixings and tighten knurled nuts by hand until
•
the tray is secure. Take care not to strain or bend the boards by
tightening too tight.
Reattach diffuser and tighten fastenings until secure
•
Form Ref. Q01070C Issue 04 - 99315306
B

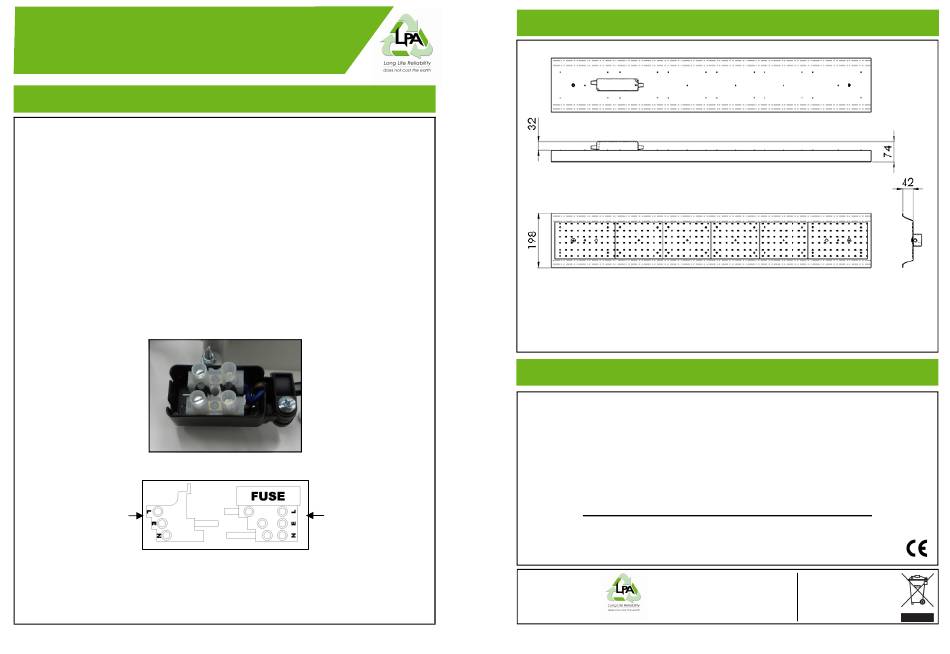

Drawings

Please take care when handling the LumiTray, so as not to
damage the LEDs. Do NOT apply force to the LEDs or boards.

Safety Considerations

Installation should be carried out by a suitably qualified person in ac-
•
cordance with relevant regulation and legislation.
Maximum ambient operating temperature T
•
There are no user serviceable parts on this product.
•
WARNING - THIS LUMINAIRE MUST BE EARTHED.
LPA Excil Electronics
Ripley Drive
Normanton
Wakefield
WF6 1QT
Form Ref. Q01070C Issue 04 - 99315306
is +50ºC
