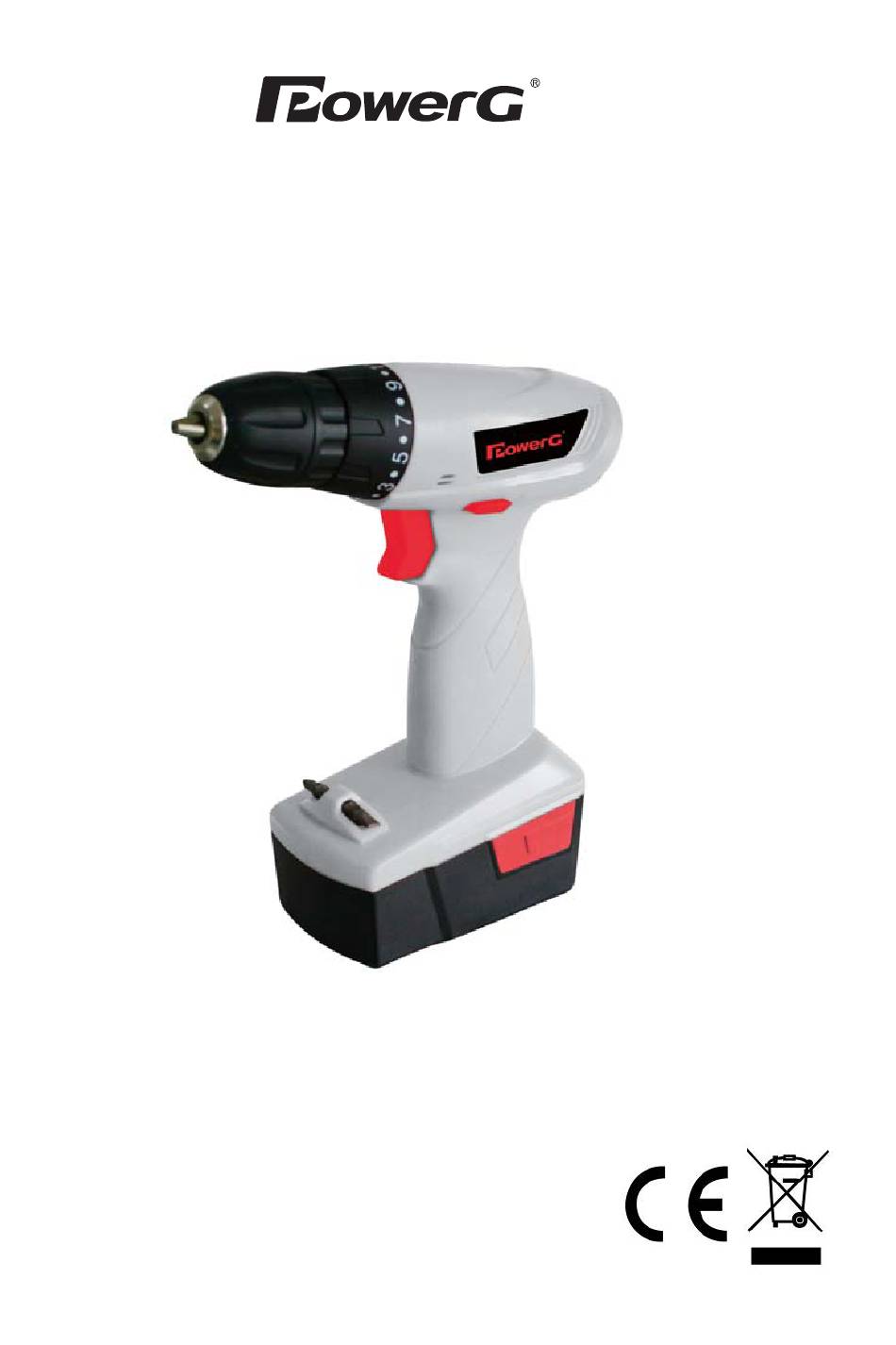

- Page 1 14.4V Cordless Drill PG14CD Manufacturer: SUMEC Hardware & Tools Co., Ltd 1# Xinghuo Road, National level Nanjing High-Tech Zone, Nanjing 210061 P.R. China...
-
Page 3: Technical Data
TECHNICAL DATA Cordless Drill PG14CD Rated voltage DC 14.4V No-load speed 650 rpm Steel 8 mm capacity Wood 10 mm Battery Ni-Cd Battery capacity 1000 mAh Battery charging time 3-5hours Battery charger Input voltage 230-240 V 50 Hz Output voltage... -
Page 4: Description Of Symbols
DESCRIPTION OF SYMBOLS Please read all of the safety and operating instructions carefully before using this tool. Please pay particular attention to all sections of this User Guide that carry warning symbols and notices. Observe caution and safety notes! No-load speed. Voltage Milliamps/Amps/Amp-hours A/Ah... -
Page 5: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The “power tool” in this instruction refers to your battery-operated (cordless) power tool. - Page 6 A battery operated tool with integral batteries or a separate battery pack must be recharged only with the specified charger for the battery. A charger that may be suitable for one type of battery may create a risk of fire when used with another battery.
- Page 7 Do not force the power tool. Use the power tool correctly for your application. The correct use will do the job better and safer at the rate for which it was designed. Do not use the power tool if the on/off switch is not working correctly . Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
-
Page 8: Additional Safety Warnings
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, Which can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. Under abusive conditions, liquid may be ejected from the battery;... - Page 9 Do not leave the tool running. Operate the tool only when hand-held. Do not touch the bit or the work piece immediately after operation; they may be extremely hot and could burn your skin. Some material contains chemicals which may be toxic. Take caution to prevent dust inhalation and skin contact.
- Page 10 Do not use an extension cord unless it is absolutely necessary. The use of an improper extension cord could cause the risk of fire, electric shock or electrocution. Do not use the charger if it has been subjected to a heavy knock, dropped or otherwise damaged in any way.
- Page 11 longer hold a charge. The battery pack can explode in a fire. A small leakage of liquid from the battery pack may occur under extreme usage or temperature conditions. This does not necessarily indicate a failure of the battery pack .however, if the outer seal is broken and this leakage comes into contact with your skin: ----wash the affected area quickly with soap and water.
- Page 12 Carefully remove the machine from its packaging and check as the following parts are complete: --Cordless drill driver --Rechargeable battery pack --battery charger --1 pc double end screwdriver bit --operating instruction If any parts are missing or damaged, please contact with your dealer. Product Features The numbering of the product features refers to the illustration of the machine on the graphics page (Pic.A-B)
- Page 13 If you leave the battery pack in the charger after the charging cycle is complete, the charger will switch into its “trickle charge (maintenance charge)”mode. After charging, unplug the charger from the power source. Note: The battery charger is for charging SUMEC battery pack. Never use it for other purposes or for other manufacturer’s batteries.
- Page 14 WARNING Do not continue to press the On/Off switch after the machine has been automatically switched off. The battery can be damaged. The battery is supplied partially charged. Completely charge the battery before using your power tool for the first time. The battery can be charged at any time without reducing its service life.
- Page 15 To remove the bit, hold the ring and turn the sleeve counter-clockwise. Operation Starting Operation Switching on: To start the appliance squeeze on the On/Off switch 3 and then keep it pressed down. Switching off: To stop the appliance, release the On/Off switch 3. Reversing the Rotational Direction This tool has a reversing switch to change the direction of rotation.
- Page 16 material to determine particular application. Level is required for a particular application. Operating Instructions Apply the power tool to the screw only when it is switched off. Rotating tool inserts can slip off. Screw driving operation First, slide the action mode change lever to the position of symbol and select the fastening torque.
- Page 17 5.5 (7/32)” 3.7 - 3.9 (9/64” - 5/32” ) 5.8 (7/32)” 4.0 - 4.2 (5/32” - 11/64” ) 6.1 (15/64)” 4.2 - 4.4 (11/64” - 11/64” ) Drilling operation First, slide the fastening torque to the position of symbol. Drilling in wood When drilling in wood, the best results are obtained with wood drills equipped with a guide screw.
- Page 18 Cleaning and Maintenance CAUTION! Place the direction of rotation direction switch 6 into the middle position before carrying out any tasks on the device, e.g. changing tools or maintenance, or before transporting or storing the device. Inadvertent operation of the On/Off switch 7 may result in injury.
- Page 19 a hot battery pack cool down before charging it. Charge the Nickel-cadmium battery pack when you do not use it for more than six months. Do not dispose of electrical appliances with your domestic waste! The packaging comprises exclusively environmentally-friendly material.
- Page 20 SUMEC Hardware & Tools Co.,LTD 1# Xinghuo Road, National level Nanjing High-Tech Zone, Nanjing 210061 P.R. China Declare that the product Cordless Drill Model No. PG14CD Complies with the essential safety and health requirement of the following directives: 2006/42/EC 2004/108/EC 2006/95/EC...
- Page 21 Ref. Description Ref. Description Screw M 5 × 25 Gear box and motor Chuck Ø0.8-10mm Right housing Left housing Screw 2.9×19 Rotating direction button Screw 2.9×16 On/Off switch Screw 2.9×21 Spring piece Screw 2.9×12 Battery pack...
- Page 22 Cordless Drill PG14CD Sumec Europe GmbH Hanns-Martin-Schleyer-Str.18a 47877 Willich, Germany Helpline: 0844 856 0793...
