Skutt EasyView w/LinkBoard Service Training Manual

EasyView w/LinkBoard

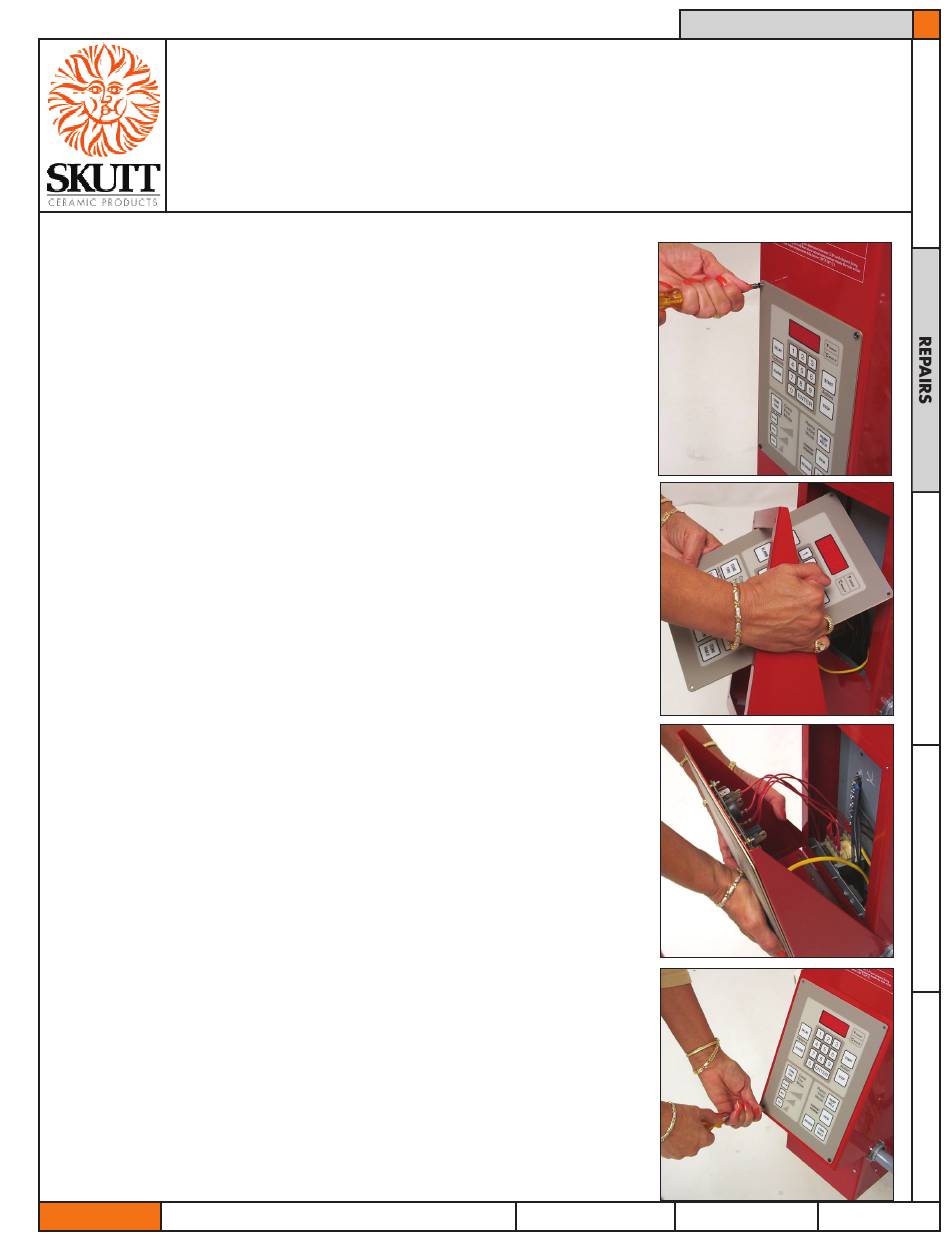

Installation

1. Inspect your new easy view kit to ensure it is complete. Your new kit
should consist of the following parts:
a. one metal easy view adapter w/LinkBoard installed.
b. two small black sheet metal screws
c. one lock washer
You will need a #2 Phillips screwdriver for this installation
2. Unplug your kiln from the wall. If your kiln is direct wired, turn the
breaker or disconnect switch to the off position.
3. Remove the four black sheet metal screws that hold the touchpad to the
control box. When removing the last screw, be sure to hold the touchpad
in place. Save these screws.
4. Hold your EasyView adapter in your free hand while gently removing the
touchpad from the control box. Thread the touchpad through the hole in
the back of the easy view adapter, taking care not to pull on the attached
wiring.
Place the red wire with the piggyback connector (Part #: 2679) onto
5.
the center tap of the touchpad. Connect the wire that was previously
on the center tap to the additional connector of the piggyback.
Connect the second red wire to Output 4 on the touchpad.
6.
Connect the ribbon cable onto its outlet on the touchpad. Be sure to
7.
line it up correctly, as one side of the ribbon cable connector has a
notch in it that aligns with the outlet on the touchpad.
8. Place the EasyView adapter in place on the control box by locating the
metal flange over the bottom opening in the control box.
9. Align the touch pad in the easy view adapter and loosely install two of the
black sheet metal screws in the bottom two holes of the touchpad. Line
up the top two holes of the touchpad with the upper two holes of the
control box and loosely install the top two sheet metal screws. We have
supplied two extra screws in case some are lost.
