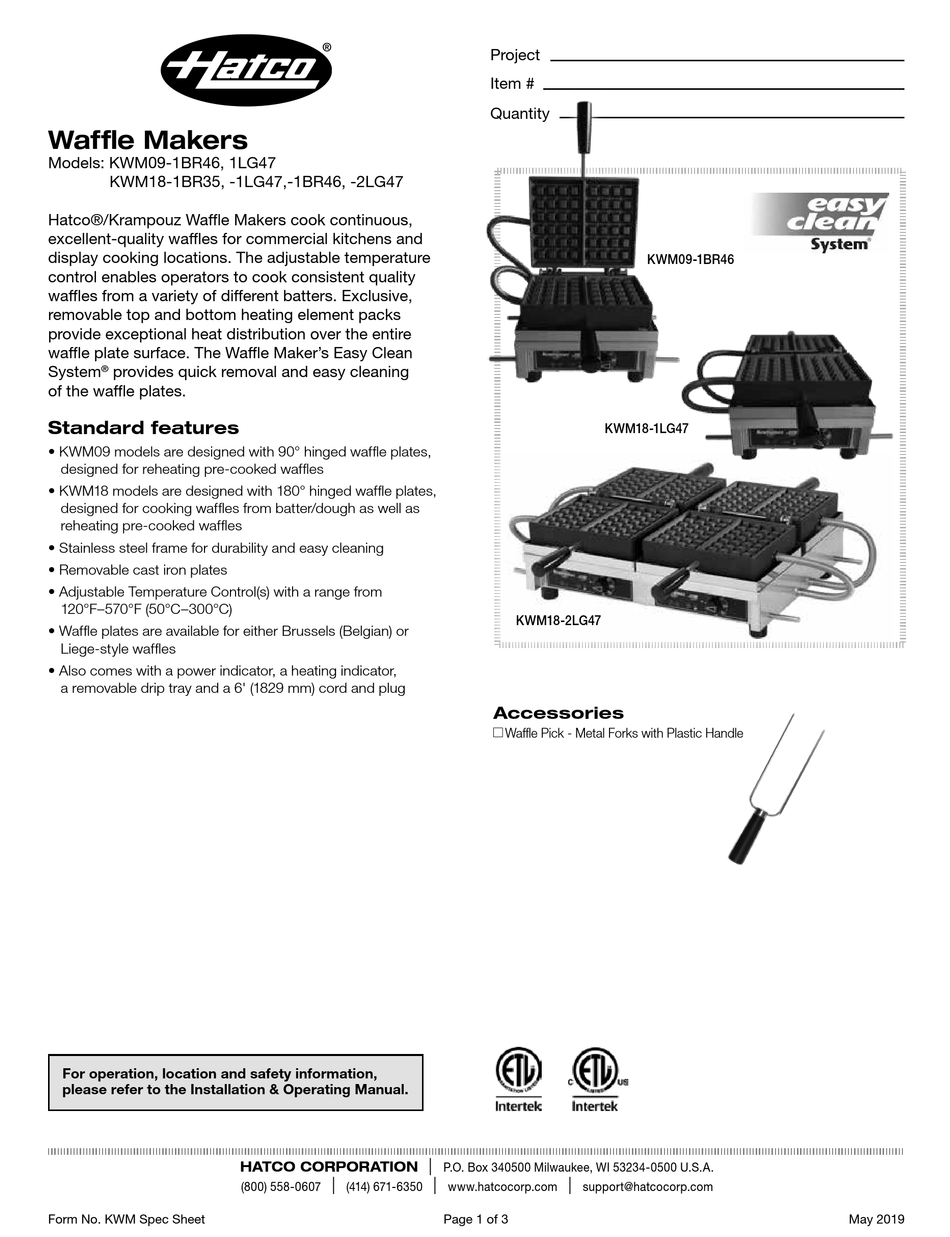

Hatco KWM09-1BR46 User Manual

Waffle Makers
Models: KWM09-1BR46, 1LG47
KWM18-1BR35, -1LG47,-1BR46, -2LG47
Hatco®/Krampouz Waffle Makers cook continuous,
excellent-quality waffles for commercial kitchens and
display cooking locations. The adjustable temperature
control enables operators to cook consistent quality
waffles from a variety of different batters. Exclusive,
removable top and bottom heating element packs
provide exceptional heat distribution over the entire
waffle plate surface. The Waffle Maker's Easy Clean
System provides quick removal and easy cleaning
®
of the waffle plates.
Standard features
• KWM09 models are designed with 90° hinged waffle plates,
designed for reheating pre-cooked waffles
• KWM18 models are designed with 180° hinged waffle plates,
designed for cooking waffles from batter/dough as well as
reheating pre-cooked waffles
• Stainless steel frame for durability and easy cleaning
• Removable cast iron plates
• Adjustable Temperature Control(s) with a range from
120°F–570°F (50°C–300°C)
• Waffle plates are available for either Brussels (Belgian) or
Liege-style waffles
• Also comes with a power indicator, a heating indicator,
a removable drip tray and a 6' (1829 mm) cord and plug
For operation, location and safety information,
please refer to the Installation & Operating Manual.
Form No. KWM Spec Sheet
HATCO CORPORATION
l
(800) 558-0607 (414) 671-6350
Project
Item #
Quantity
KWM18-1LG47
KWM18-2LG47
Accessories
Waffle Pick - Metal Forks with Plastic Handle
c
l
P.O. Box 340500 Milwaukee, WI 53234-0500 U.S.A.
l l
www.hatcocorp.com support@hatcocorp.com
Page 1 of 3
KWM09-1BR46
May 2019
