Summary of Contents for Richdel LAWN GENIE R406DLG

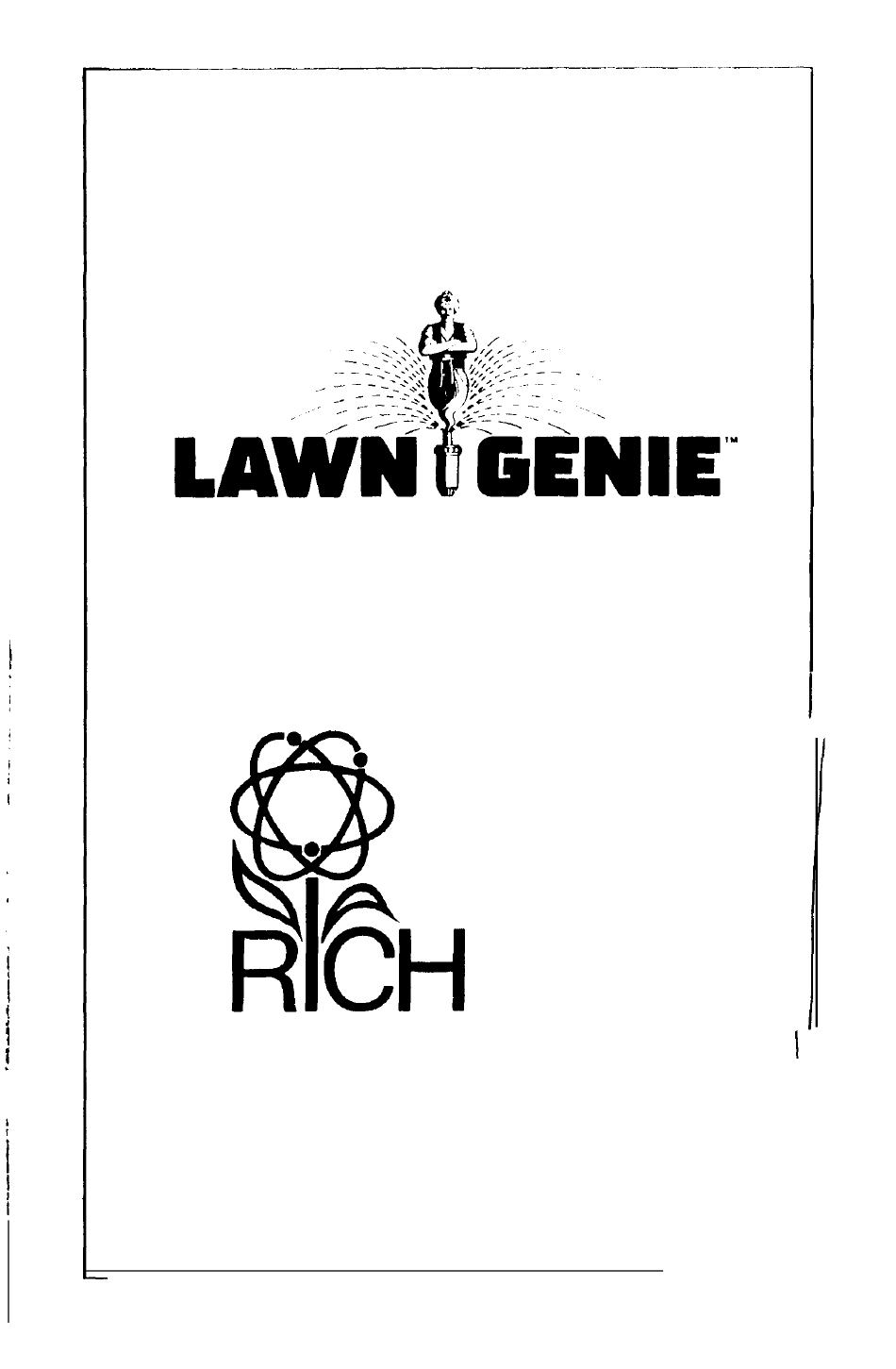

- Page 1 INSTALLATION AN0 OPERATING INSTRUCTIONS RICHDEL MODEL R406DLG 6 STATION LAWN SPRINKLER CONTROL...
-
Page 2: Installation Instructions
http://waterheatertimer.org/Woods-timers-and-manuals-old.html#sprinkler INSTALLATION INSTRUCTIONS The R406DLG is a 6 station controller that can be programmed to water from six times a day to once a week. The watering time can be adjusted frorn approximate- ly 5 to 30 minutes for each circuit Step 1. - Page 3 RICHDEL INC. MODEL R406DLG SIX STATION CONTROLLER ITEM PART NO. DESCRIPTION DESCRIPTION ITEM PART NO. RS12OP08-ABP06 SCREW RS120P08-F-P04 SCREW RSl30-36-27FC HEX NUT 402-96 SKIP-A-DAY PIN SE-47 EYELET 402-94 SIX DAY SKIP WHEEL TERMINAL BOARD (WIRED) 402-91 THRUST WASHER 406-72 406-69 CHASSIS ASSY.
- Page 4 OPERATING INSTRUCTIONS Step 1. TO SET TIME OF DAY: Rotate the time dial (4) counterclockwise until the proper time of day coincides with the arrow on the circuit selector knob, (8). CAUTION: The time dial is made to rotate in one direction only DO NOT FORCE THE DIAL IN THE REVERSE DIRECTION.
-
Page 5: Limited 1 Year Warranty
Richdel’s option at no charge, pro- viding the product is sent to the Richdel factory, or authorized factory service center, with all trans- portation charges prepaid. This warranty does not apply to the damages or malfunctions resulting from accidents, misuse, or neglect.
