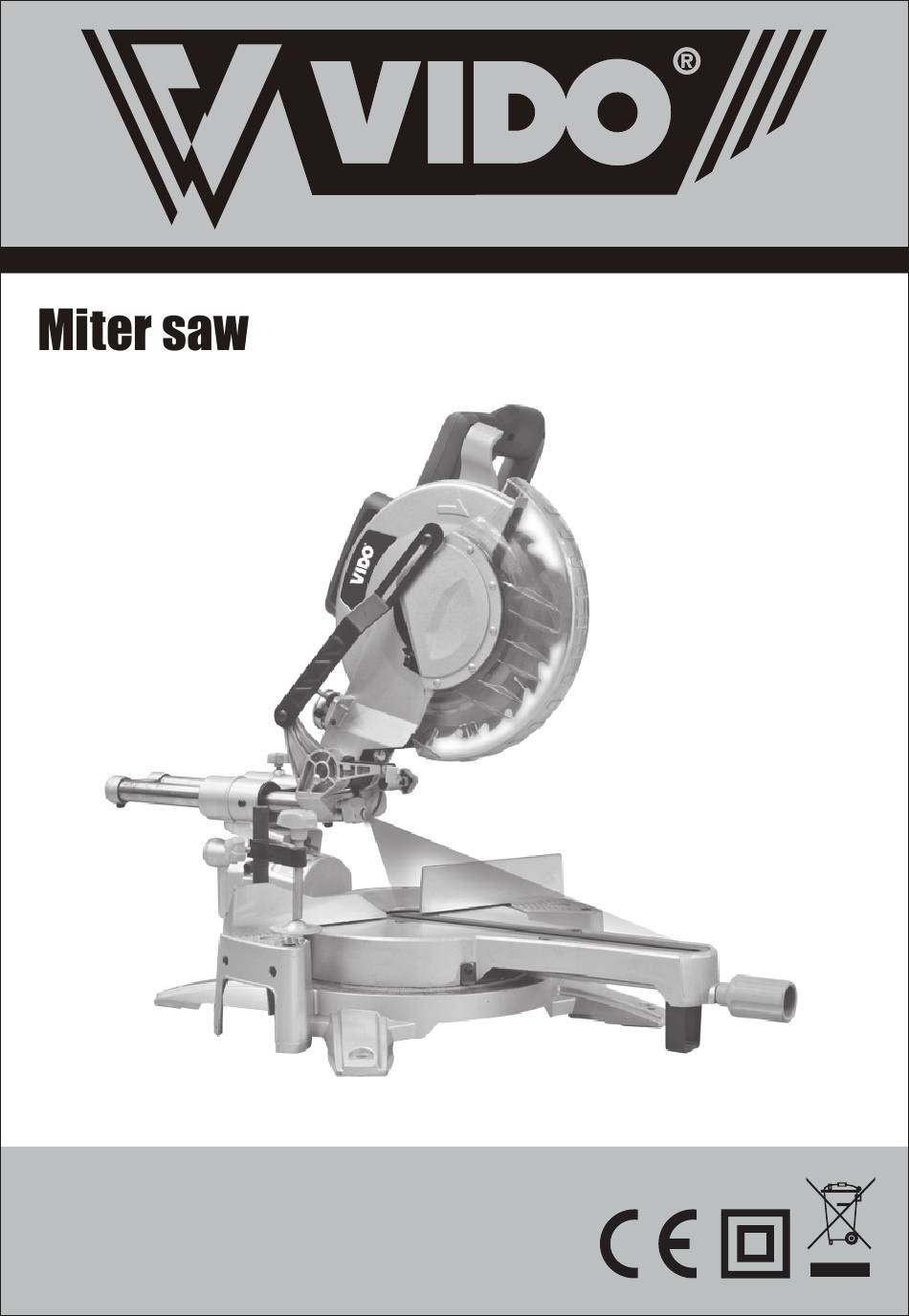

Page 1 WD030210254 1800W...
Page 2 WD030210254 Thank you for purchasing a VIDO product. We are confident that you will appreciate the quality of the product and you will be entirely satisfied with your purchase. Please read carefully the user safety and operating instruction on how to operate this product correctly within safety...
Page 3 WD030210254...
Page 4 WD030210254...
Page 5 WD030210254...
Page 6 WD030210254...
Page 7 WD030210254...
Page 8: Component List
1800W MITER SAW COMPONENT LIST Side support bars (x2) Side support bar location holes (2 sets) Side support bar locking screws Clamp assembly lock (x2) Clamp assembly Laser cover Slide bars Saw arm Slide lock Dust extraction port Guard retraction arm Upper fixed blade guard Hex key Carrying handle...
Page 9: General Power Tool Safety Warnings
1800W MITER SAW We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.
Page 10 1800W MITER SAW finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach.
Page 11 1800W MITER SAW 6) Keep handles dry, clean, and free from oil and grease. Greasy, oily handles are slippery causing loss of control. 7) Operate the power tool only when the work area to the workpiece is clear of any adjusting tools, wood chips, etc.
Page 12: Double Insulation
1800W MITER SAW DOUBLE INSULATION The power tool is double insulated. This means that all the external metal parts are electrically insulated from the main power supply. This is done by placing insulation barriers between the electrical and mechanical components making it unnecessary for the power tool to be earthed. IMPORTANT NOTE Be sure the supply is the same as the voltage given on the rating plate.
Page 13: Technical Data
1800W MITER SAW TECHNICAL DATA Model WD030210254 Voltage 110-120V AC 220-240V AC Frequency 50-60Hz 50-60Hz Power input 1800W 1800W No load speed 5500/min 5500/min Blade size Ø 10” x Ø 1” Ø 254 mm x Ø 25.4 mm Mitre table angles 0°...
Page 14 1800W MITER SAW Warning: Do not lift the saw whilst holding on to the guards. Use the carrying handle. 3. Transportation Lift the mitre saw only when the saw arm is locked in the down position, the saw is switched off and the plug is removed from the power point.
Page 15 1800W MITER SAW (See Fig 7). Use the clamp assembly lock at the back of the fence to secure the clamp assembly in position (See Fig 8). 10. Spindle lock button The spindle lock button prevents the blade in the saw from rotating (See Fig 9). Depress and hold the spindle lock button while installing, changing, or removing the blade.
Page 16 1800W MITER SAW 3) Loosen the mitre lock (See Fig 19). 4) Rotate the table until the pointer is positioned at 0º. 5) Tighten the mitre lock. 6) Loosen the bevel lock and set the saw arm at 0º bevel (the blade at 90º to the mitre table). Tighten the bevel lock (See Fig 20).
Page 17 1800W MITER SAW 2) Push down on the operating handle and pull the release knob to disengage the saw arm. The release knob can be turned so that it is held in the retracted position (See Fig 30). 3) Raise the saw arm to its highest position. 4) Using a screwdriver loosen and remove the screw that secures the guard retraction arm to the rotating blade guard (See Fig 31).
Page 18 1800W MITER SAW 6) When cutting long pieces of timber, support the opposite end of the timber with the side support bars, a roller stand or a work surface that is level with the saw table. 7) Use the clamp assembly to secure the workpiece wherever possible. 8) It is possible to remove the clamp assembly by loosening the clamp assembly lock and moving it to the other side of the table.
Page 19 1800W MITER SAW 10) Before turning on the saw, perform a dry run of the cutting operation to check that there are no problems. 11) Hold the operating handle firmly and squeeze the switch trigger. Allow the blade to reach maximum speed.
Page 20: Maintenance
1800W MITER SAW 5) Switch off the laser light. 25. Using the laser line generator Warnings: • Do not stare directly at the laser beam. • Never aim the beam at any person or an object other than the workpiece. •...
Page 21: Troubleshooting
1800W MITER SAW TROUBLESHOOTING 1. If your power tool will not operate, check the power at the mains plug, or check the carbon brushes. 2. If your power tool doesn’t work properly, check the saw blade for sharpness, replace new one if worn.
Page 22: Explosive View
1800W MITER SAW EXPLOSIVE VIEW...
Page 23: Part List
1800W MITER SAW PART LIST DESCRIPTION Q’TY DESCRIPTION Q’TY Screw Transformer Motor cover Trigger Screw Switch Disc spring Capacitor Brush holder Depth of cut adjust Carbon brush Knurled thin nut Screw Socket head screw Spring washer Washer Fixed guard Motor housing Bearing Bearing sleeve Circlip...
Page 24 1800W MITER SAW DESCRIPTION Q’TY DESCRIPTION Q’TY Wave washer Bracket Rubber pole Socket head screw Spring washer Bevel pointer Socket head screw Screw Big screw Double stud Trench depth bracket Safety cover Rolled pin Sunk screw Pivot shaft Socket head screw Bracket cap Screw Laser carrier...
Page 25 1800W MITER SAW DESCRIPTION Q’TY DESCRIPTION Q’TY Knob Big washer Support arm Shield lock sheet Support pole Washer Socket head screw Spring washer Washer Screw Fence Spring Dust bag Shield lock piece Screw Lock nut...
Page 26 WD030210254...
Page 27 WD030210254...
