Subsite TXu Original Instruction page 3

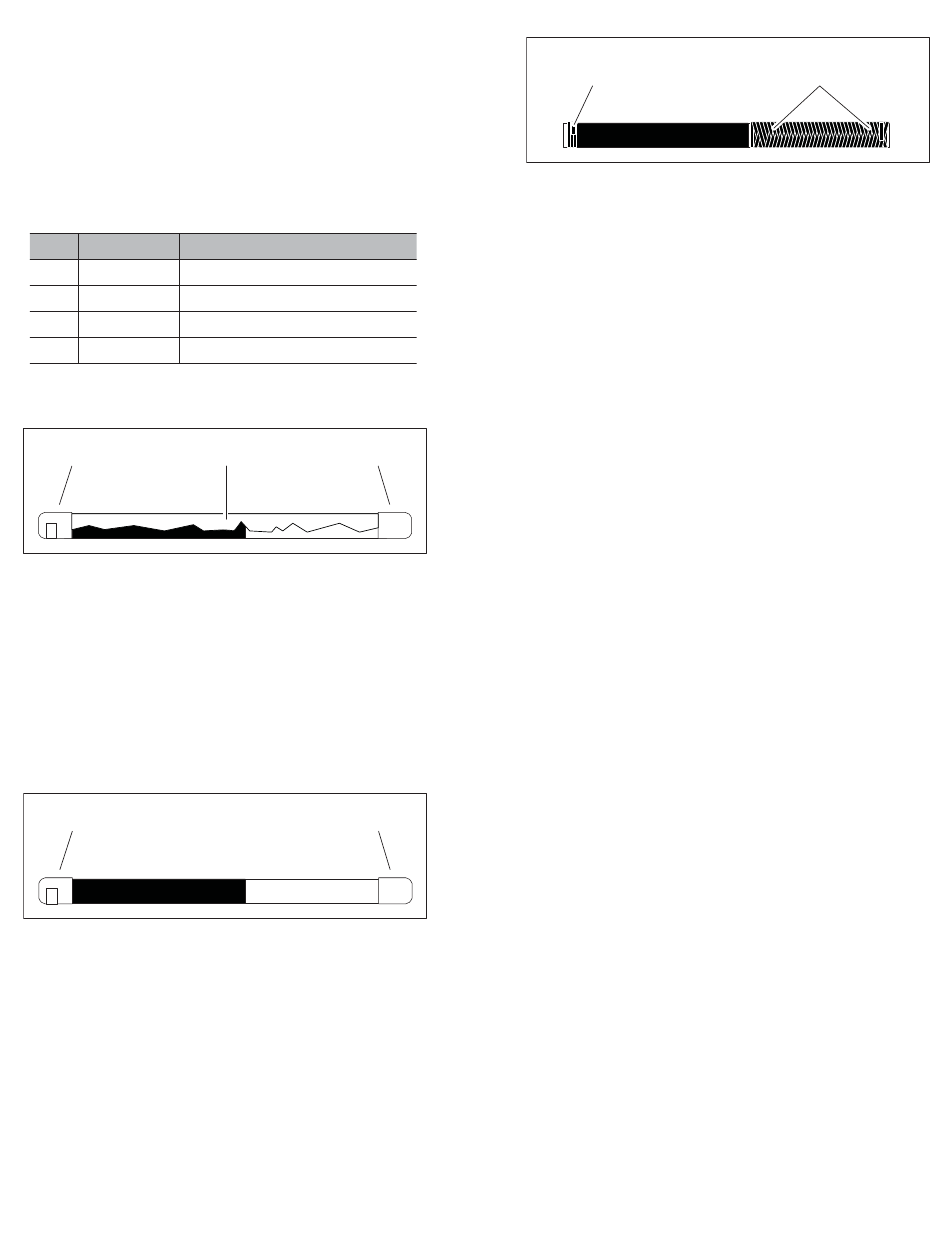

Isolation Method in DHT Housings
Beacon/sonde/transmitter housings are designed to
accept various sizes of beacons, sondes, or transmitters
with and/or without end isolators.
Use one of the appropriate isolation methods below for
optimal performance and wear.
Use the table below to determine which parts are required for
the appropriate housing.
Ref. P/N Description
1 908-4304 isolator, 1.5" univ front
2 906-2702 univ sonde sleeve
3 908-4295 isolator, univ rear
4 electrical tape
Third Party Housing
1
e17om052w.eps
Housing is designed for multiple beacon sizes. The slots
are open.
1. If space allows, install a nylon sleeve (2), heat shrink
tubing, or electrical tape to cover the entire length of
the beacon.
2. If applicable, install end isolators (3,1).
®
Ditch Witch 86B Housing
1
e17om053w.eps
Housing is designed for 86B size beacons. The slots are
epoxied.
1. Install end isolators (3,1).
2 3
3
Low Profile AT Housing
4
e17om055w.eps
Housing (400-1200) is designed to accept 1.25"
diameter x 15" long beacons. It does not have space for
the nylon sleeve. In "heavy metal" beacons housings
such as this, a lower frequency may be more effective.
1. Wrap two to four layers of electrical tape (4) in the
positions shown (or wrap the entire length of the
beacon).
IMPORTANT: Ensure proper frequency is in use for
present conditions.
Remove Beacon from Tool Housing
IMPORTANT: Remove beacon before mud in beacon
chamber hardens and locks beacon into housing.
1. Remove beacon from tool housing.
IMPORTANT: If beacon will not come out, do not
use force. Try soaking housing in water until dried
mud inside housing softens. If beacon still will not
come out, contact your Ditch Witch
advice.
2. Clean beacon and remove battery.
3. Wash and lubricate tool housing.
4
®
dealer for
