Phoenix, AZ

AMSAFE SEATBELT AIRBAG SYSTEM

INSTALLATION, HANDLING, AND SHIPPING INSTRUCTIONS

AmSafe Document Number: E510629

This information contained herein is confidential and proprietary to AmSafe. It shall not be reproduced or disclosed in whole or

in part to persons other than those necessary for the user to utilize such information or used in any manner detrimental to

AmSafe's interests or for the purpose for which such information was provided without the express, written consent of AmSafe,

except to the extent required for installation or maintenance of recipient's equipment.

NOTICE – FREEDOM OF INFORMATION ACT (5 USC 552) AND DISCLOSURE OF CONFIDENTIAL INFORMATION

GENERALLY (18 USC 1905)

AmSafe is furnishing this document in confidence. The information disclosed herein falls within exemption (b) (4) of 5 USC 552

and the prohibitions of 18 USC 1905.

The AmSafe Commercial and Government Entity (CAGE) code:

Issue: 03-Jun-2014, Rev. L

1043 N. 47

Ave.

Phoenix, AZ 85043 USA

V23 SYSTEM

PROPRIETARY NOTICE

35FB9

Phone: +1 602 850 2850

Fax: +1 602 850 2812

Table of Contents

Need help?

Do you have a question about the V23 and is the answer not in the manual?

Questions and answers

Summary of Contents for AMSAFE V23

Page 1 PROPRIETARY NOTICE This information contained herein is confidential and proprietary to AmSafe. It shall not be reproduced or disclosed in whole or in part to persons other than those necessary for the user to utilize such information or used in any manner detrimental to AmSafe’s interests or for the purpose for which such information was provided without the express, written consent of AmSafe,...
Page 2 Page 3002 – added EMA torque values to Table F. Armenta D. Potter Updated nomenclature: AmSafe Airbag System 07-May-2010 (AmSafe Airbag) now AmSafe Seatbelt Airbag. Updated Packing and Shipping Requirements for Inflators: removed statement to use cargo only when shipping; added EX numbers for Autoliv Inflators F.
Page 4: Table Of Contents
Scope of Shipping, Transportation, Handling, and Storage Procedures 4001 Procedures 4001 2. Transporting Seats Equipped with the AmSafe Seatbelt Airbag System 4002 Reasons for Transporting Seats Equipped with AmSafe Seatbelt Airbag System 4002 Limitations of Transporting Seats Equipped with AmSafe Seatbelt Airbag System...
Page 5 4004 Equipment and Materials for the Job 4004 RMA Procedures 4004 Packaging and Shipping Requirements – Inflator 4005 Packaging and Shipping Requirements – AmSafe Airbag Components Except the Inflator 4006 4. Storage 4007 Inflator 4007 4007 Inflatable Lap Belt Assembly 4008 5.
Page 6: Cautions And Warnings
CAUTIONS AND WARNINGS CAUTIONS AND WARNINGS A. CAUTIONS AND WARNINGS Read all the applicable WARNINGS and CAUTIONS prior to working on AmSafe Seatbelt Airbag Components. These will be repeated where applicable throughout this document. WARNING: THE INFLATOR ASSEMBLY IS A STORED GAS/ENERGETIC MATERIAL DEVICE.
Page 7 DAMAGED OR MISHANDLED EMA COULD BE INJURIOUS TO MAINTENANCE PERSONNEL OR PASSENGERS IF INSTALLED ON THE SEAT. IF DAMAGE OR MISHANDLING IS SUSPECTED, DO NOT INSTALL THE EMA, RETURN IT TO AMSAFE FOR REPLACMENT. REFER TO RMA PROCEDURES IN SECTION 4000 FOR EMA SHIPPING INFORMATION.
Page 8: System Description And Operation
EMA to the Inflatable Lap Belt or Restraint Assembly. The AmSafe Seatbelt Airbag V23 System uses a SDT to perform system diagnostics. This is a hand-held device for use by the system installers and airline maintenance crew to test system readiness and is described in Section 1000 of this document.
Page 9 Inflator Fitting Belt Assembly to (90-deg shown) Interface Cable ACH Inflator Connector Figure 1: Representative Lift-Latch AmSafe Seatbelt Airbag System V23 Airbag Belt – 2-Point Part of Inflatable Lap Belt Assembly ROI Inflator 90 degree Inflatable Lap Belt Assembly to...
Page 10 Part of Inflatable Belt Assembly Cable Interface Assembly Inflator Fitting (Axial) Diagnostic Connector Figure 3: Representative Dual Inflator AmSafe Seatbelt Airbag System Inflator Interfac e cable Structure Mounted Airbag Assembly Representation Diagnostic Connector Figure 4: Representative Structure Mounted Airbag System...
Page 11: Inflatable Lap Belt Assembly
180 degrees out of phase. These features preclude the situation where a conventional buckle side assembly is accidentally combined with that of an AmSafe Seatbelt Airbag System. Inflator and Inflator Fitting The Inflator mounts under the seat to a seat-specific bracket/clamp.
Page 12: Cable Interface Assembly
AMSAFE SEATBELT AIRBAG SYSTEM INSTALLATION, HANDLING AND SHIPPING INSTRUCTIONS E510629 SYSTEM DESCRIPTION AND OPERATION Inflator Fitting to Inflator Connection Point 0-degree with swivel Squib 45-degree Connector 0-degree 90-degree Inflator Front End Figure 5: Inflator and Inflator Fittings Figure 6: ACH 2.4 Inflator (no inflator fitting required) The Inflator provides inert helium-argon gas to inflate the airbag upon command from the EMA.
Page 13: Ema
The AmSafe Seatbelt Airbag system EMA is battery operated. The EMA battery service life is essentially defined by the refurbishment requirement of the EMA. Under typical operating and environmental conditions, the battery service life is equal to the EMA refurbishment period.
Page 14: Sdt
To maintain the battery life of the system, there are no self-annunciating diagnostics in the EMA that can negatively impact battery life. A SDT is provided to test the status the AmSafe Seatbelt Airbag. This portable device has been designed for use by personnel after system installation and airline maintenance personnel at predetermined intervals (every 4000 flight- hours).
Page 15: Amsafe Seatbelt Airbag System Specifications
AMSAFE SEATBELT AIRBAG SYSTEM INSTALLATION, HANDLING AND SHIPPING INSTRUCTIONS E510629 SYSTEM DESCRIPTION AND OPERATION AmSafe Seatbelt Airbag System Specifications Table 1: AmSafe Seatbelt Airbag V23 System Specifications AmSafe Seatbelt Airbag System Use: Personal Restraint Type: Restraint System with Passive Protection Belt Assembly: Rated Strength (min.):...
Page 16: Testing And Fault Isolation

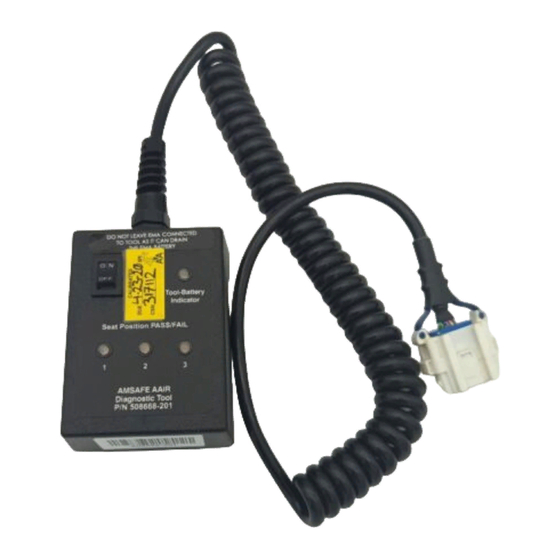

The SDT’s calibration must be checked yearly. The calibration sticker on the back of the unit will indicate when the SDT needs to be checked. The SDT must be returned to AmSafe for re- calibration. Refer to Section 4000, “SHIPPING, TRANSPORTATION, HANDLING, AND STORAGE,”...
Page 17: Amsafe Seatbelt Airbag Diagnostic Check
A. Scope of AmSafe Seatbelt Airbag Diagnostic Check The AmSafe Seatbelt Airbag diagnostic check provides a system functional analysis of the AmSafe Seatbelt Airbag circuits as a whole. Fault isolation of the systems components is accomplished by replace-and-retest method. B. Interval...
Page 18 AMSAFE SEATBELT AIRBAG SYSTEM INSTALLATION, HANDLING AND SHIPPING INSTRUCTIONS E510629 TESTING AND FAULT ISOLATION ON/OFF SDT Battery Switch Voltage Indicator V23 SDT 3 Seat Position PASS/FAIL Indicator LED’s Mated Connector to Cable Interface Assembly’s Diagnostic Connector Figure 9: SDT, System with Enabling Switch...
Page 19 AMSAFE SEATBELT AIRBAG SYSTEM INSTALLATION, HANDLING AND SHIPPING INSTRUCTIONS E510629 TESTING AND FAULT ISOLATION Figure 10: SDT, System with a Dual Inflator, Enabling Switch System or a System without an Activation Switch 02-Aug-2013 Page 1004...
Page 20: Procedures
9-volt battery. Connecting SDT: Confirm all seat positions to be tested are unbuckled. Remove the Diagnostic Connector’s protective cap (if applicable) located on the Interface Cable Assembly and connect the V23 SDT connector to the diagnostic connector. ACTION...
Page 21 TESTING AND FAULT ISOLATION System with Enabling Switch & Dual Inflators: Use the following instructions to complete the AmSafe Seatbelt Airbag System Diagnostic Check for dual inflator system, SDT P/N 508987-401. Check all possible electrical connectors within the AmSafe Seatbelt Airbag System. This means check all Cable Interface Assembly connection ends: check EMA pigtail end and connection(s) to all Inflator(s) for proper installation.
Page 22 ENABLING SWITCH, AND THE SYSTEM IS LIVE AS SOON AS ALL ELECTRICAL CONNECTIONS ARE MADE. Use the following instructions to complete the AmSafe Seatbelt Airbag diagnostic check for a system without an enabling switch. Check all possible electrical connectors within the AmSafe Seatbelt Airbag System. This means check all Cable Interface Assembly connection ends: check EMA pigtail end and connection(s) to all Inflator(s) for proper installation.
Page 23 AMSAFE SEATBELT AIRBAG SYSTEM INSTALLATION, HANDLING AND SHIPPING INSTRUCTIONS E510629 TESTING AND FAULT ISOLATION Turn SDT off Repeat Step 3 for next seat position. If finished testing all seat positions in aircraft disconnect the SDT to prevent EMA battery from draining, replace the AmSafe Seatbelt Airbag System diagnostic protective cap or cover.
Page 24: Repair
1. AMSAFE SEATBELT AIRBAG SYSTEM REPAIR A. Scope of the Job (1) The primary repair of the AmSafe Seatbelt Airbag System is the removal and replacement of defective subassemblies. The SDT battery will need to be replaced occasionally. B. Limitation of the Job (1) Disassemble the AmSafe Seatbelt Airbag System only to the level necessary to replace the defective subassembly as determined during the diagnostic check detailed in the “TESTING...
Page 25: Removal Replacement And Installation Procedures
AND SECURED PRIOR TO MAINTENANCE OF THE SEATS WITH ENABLING SWITCHES. This will protect the buckle from any damage and ensure that the AmSafe Seatbelt Airbag System cannot be accidentally enabled by the buckling of the Inflatable Lap Belt Assembly. If the seat is dropped or receives a significant impact, an enabled system may deploy the airbag, which may result in significant risk of injury to personnel.
Page 26: Field Disposal Of Damaged Lrus
(a) Warranty LRUs (manufacturer defect) must be returned to AmSafe to claim warranty. (b) Installation damage LRUs: 1. Inflator – return to AmSafe for disposal whether stored gas has been deployed or not. 2. EMA – contains Lithium ion battery; dispose of in accordance with user’s disposal policy.
Page 27: Equipment And Materials Required
AMSAFE SEATBELT AIRBAG SYSTEM INSTALLATION, HANDLING AND SHIPPING INSTRUCTIONS E510629 REMOVAL REPLACEMENT AND INSTALLATION PROCEDURES C. Equipment and Materials Required The following items are required to remove the AmSafe Seatbelt Airbag System. Table 3: Removal Equipment and Materials Description Part Number...
Page 28 AMSAFE SEATBELT AIRBAG SYSTEM INSTALLATION, HANDLING AND SHIPPING INSTRUCTIONS E510629 REMOVAL REPLACEMENT AND INSTALLATION PROCEDURES Hose Barb Squib Connector Inflator Fitting Hose Connection Inflator Front End 0-degree 45-degree 0-degree 90-degree Inflator Fitting to Inflator Connection Point Figure 11: Electrical Connection to Inflator, Hose Connector to Inflator Fitting, Inflator Fittings to Inflators, ACH 2.4 Inflator (no inflator fitting required)
Page 29 AMSAFE SEATBELT AIRBAG SYSTEM INSTALLATION, HANDLING AND SHIPPING INSTRUCTIONS E510629 REMOVAL REPLACEMENT AND INSTALLATION PROCEDURES makes for a very secure fit. Use a second back-off wrench for loosening. A strap wrench is recommended to be used. DO NOT damage crimp end of gas hose or Inflator Fitting if using any type of locking pliers.
Page 30: Amsafe Seatbelt Airbag V23 System Installation
Remove EMA from mounting brackets. Refer to seat OEM installation drawing for installation details. AmSafe Seatbelt Airbag V23 System Installation Remove the end cap plug (if new Inflatable Lap Belt Assembly) from Two-Point Airbag Belt gas hose and discard. DO NOT REMOVE Safety Cable Tie on the airbag connector tongue at this time (if installed).
Page 31 AMSAFE SEATBELT AIRBAG SYSTEM INSTALLATION, HANDLING AND SHIPPING INSTRUCTIONS E510629 REMOVAL REPLACEMENT AND INSTALLATION PROCEDURES Secure the Inflator and Inflator Fitting (if installed) onto the seat. Refer to seat OEM installation drawing for mounting bracket details. Insert EMA into mounting hardware and secure. The arrow on the EMA label should face aircraft forward (Figure 14).
Page 32: Installation Of Seats Equipped With Amsafe Seatbelt Airbag System
ON ITSELF, COVERED AND SECURED PRIOR TO REMOVAL OF THE SEAT. This will protect the buckle from any damage and ensure the AmSafe Seatbelt Airbag System cannot be accidentally enabled by the buckling of the Inflatable Lap Belt Assembly or proximity to the belt tongue.
Page 33: Shipping, Transportation, Handling, Storage Procedures
B. Limitations of Shipping, Transportation, Handling, and Storage Procedures (1) The recommended practices in this section are stated as guidelines only. AmSafe makes no claim by this document to be the complete and official document for shipping, handling, and storage of the AmSafe Seatbelt Airbag Inflator.
Page 34: Transporting Seats Equipped With The Amsafe Seatbelt Airbag System
B. Limitations of Transporting Seat Equipped with AmSafe Seatbelt Airbag System (1) The recommended practices in this section are stated as guidelines only. AmSafe makes no claim by this document to be the complete and official document for transporting seats with AmSafe Seatbelt Airbag System installed.
Page 35: Scope Of Transporting Seats Equipped With Amsafe Seatbelt Airbag System
REGULATED BY DOT. E. Preparing for Shipment (1) Upon completion of AmSafe Seatbelt Airbag system installation on a seat, perform a system diagnostics test to verify the AmSafe Seatbelt Airbag system has been installed correctly and is operational. Be sure to follow the procedures for Testing and Fault Isolation for the AmSafe Seatbelt Airbag system.
Page 36: Packaging
This would also protect against accidental buckling or switch closure due to proximity. G. Exterior Labels and Markings (1) No labels or markings are required beyond what is used for seats without the AmSafe Seatbelt Airbag system. 3. RETURNING AMSAFE SEATBELT AIRBAG COMPONENTS AND RMA PROCEDURES A.
Page 37: Packaging And Shipping Requirements - Inflator
Title 49 CFR Section 172.700. All local and relevant international handling, shipping, transporting regulations must be followed. Ship the component to AmSafe address as determined from previous paragraph 3E. EX Numbers for shipping Inflators: INFLATOR P/N...
Page 38: Storage
RESPONSIBILITY OF THE END USER AND NOT OF AMSAFE. (1) Use the packaging material in which the AmSafe Seatbelt Airbag System was received, if available and when it is in a serviceable condition. If not serviceable, new materials of the same quality and size shall be used.
Page 39: Inflator
The service life of the Inflator Assembly (expiration date) is determined by the date of manufacture shown on the AmSafe label, not the Autoliv label. See Figure 15. If the EMA has been reworked or refurbished, the label will show an expiration date and should be removed and returned to AmSafe for disposal (once it has reached its expiration date).
Page 40 Observe all local storage regulations. Store only in a controlled area. The maximum continuous storage time for the EMA is 14 years calculated from the AmSafe date of manufacture (Figure 16). At seven years, the EMA should be returned to AmSafe for refurbishment.
Page 41 AMSAFE SEATBELT AIRBAG SYSTEM INSTALLATION, HANDLING & SHIPPING INSTRUCTIONS E510629 SHIPPING, TRANSPORTATION, HANDLING, STORAGE PROCEDURES AmSafe Label Note: add 14 years to date of mfr to get expiration date. A = Manufactured in Phoenix 12 = Month 08 = Year...
Page 42 AMSAFE SEATBELT AIRBAG SYSTEM INSTALLATION, HANDLING & SHIPPING INSTRUCTIONS E510629 SHIPPING, TRANSPORTATION, HANDLING, STORAGE PROCEDURES AUTOLIV MSDS FOR AIRBAG INFLATOR, HYBRID CURTAIN 04-Aug-2010 Page 4010...
Page 43 AMSAFE SEATBELT AIRBAG SYSTEM INSTALLATION, HANDLING & SHIPPING INSTRUCTIONS E510629 SHIPPING, TRANSPORTATION, HANDLING, STORAGE PROCEDURES 02-Aug-2013 Page 4011...
Page 44 AMSAFE SEATBELT AIRBAG SYSTEM INSTALLATION, HANDLING & SHIPPING INSTRUCTIONS E510629 SHIPPING, TRANSPORTATION, HANDLING, STORAGE PROCEDURES 02-Aug-2013 Page 4012...
Page 45 AMSAFE SEATBELT AIRBAG SYSTEM INSTALLATION, HANDLING & SHIPPING INSTRUCTIONS E510629 SHIPPING, TRANSPORTATION, HANDLING, STORAGE PROCEDURES 02-Aug-2013 Page 4013...
Page 46 AMSAFE SEATBELT AIRBAG SYSTEM INSTALLATION, HANDLING & SHIPPING INSTRUCTIONS E510629 SHIPPING, TRANSPORTATION, HANDLING, STORAGE PROCEDURES 02-Aug-2013 Page 4014...
Page 47 AMSAFE SEATBELT AIRBAG SYSTEM INSTALLATION, HANDLING & SHIPPING INSTRUCTIONS E510629 SHIPPING, TRANSPORTATION, HANDLING, STORAGE PROCEDURES 02-Aug-2013 Page 4015...
Page 48: Roi Msds For Airbag Inflator
AMSAFE SEATBELT AIRBAG SYSTEM INSTALLATION, HANDLING & SHIPPING INSTRUCTIONS E510629 SHIPPING, TRANSPORTATION, HANDLING, STORAGE PROCEDURES ROI MSDS FOR AIRBAG INFLATOR 02-Aug-2013 Page 4016...
