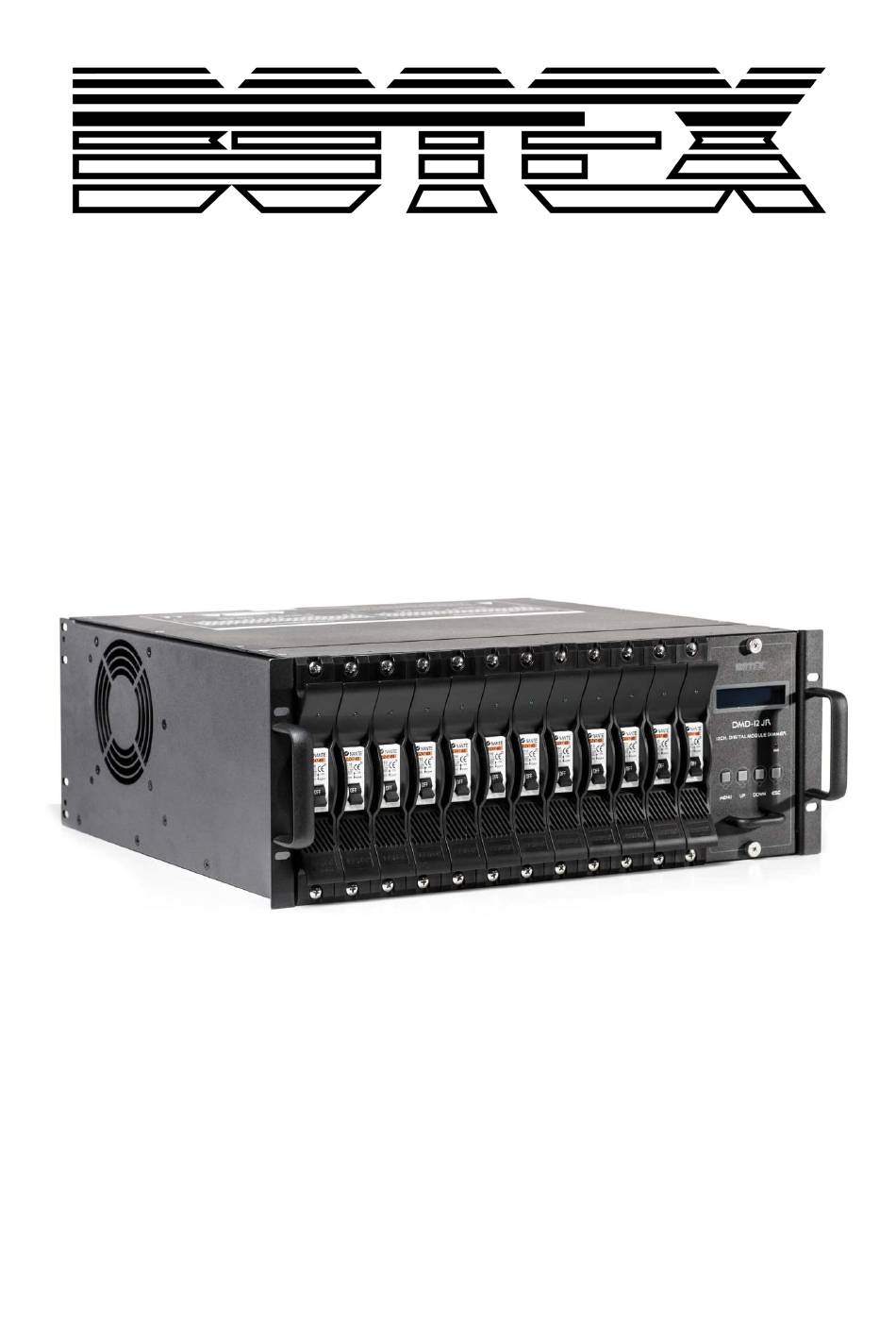

  • Page 1 Manual Dimmer DMD-12-2...

  • Page 2: Table Of Contents

    Table of contents Safety instructions ..........................3 1.1. For safe and efficient operation ....................3 Overview ............................5 2.1. Front view ..........................5 2.2. Rear view ..........................6 2.3. Termination ..........................6 Operating guide ..........................7 3.1. Display and standby mode ...................... 7 3.2.

  • Page 3: Safety Instructions

    1. Safety instructions • Read the safety instructions and also this manual carefully. • Keep the manual. • Observe all red flags. • Observe the manual. • To prevent fire or electric shocks, protect the device against rain and humidity •...
  • Page 4 Safety Do not remove the grounding. It is for your safety. If you remove the grounding it can cause electric shocks. Accessory Please use only the accessory which is set by the manufacturer. Important Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems.

  • Page 5: Overview

    2. Overview 2.1. Front view 1. Display 2. DMX LED This LED light up if there is a DMX signal. . 3. MENU Press this button to get into the menu. 4. UP/DOWN With this button you can increase/decrease a value. Pressing and holding the button will increase/decrease the value quickly.

  • Page 6: Rear View

    2.2. Rear view 1. Analogue input DC 0-10 V 2. DMX IN 3pol XLR input male. 3. DMX OUT 3pol XLR output female. 2.3. Termination 6 / 16...

  • Page 7: Operating Guide

    3. Operating guide 3.1. Display and standby mode Power on this unit, the LCD shows the revision of software immediately, then enter standby mode automatically, the LCD shows the dimming level of each channel as below. The first row indicates the dimming level, and the second row indicates the channel (1 stands for channel 1, 2 stands for channel 2, and so on.

  • Page 8: Patching

    4. If you select Program01-12 tap ESC. Now you can set the velocity. 5. Using UP/DOWN you can select the velocity from 00,05s to 30.00s. 6. After you have finished your setting, tap ESC button to exit. 3.2.2. Patching 1. Press UP/DOWN to get to the Patching menu. 2.
  • Page 9 4. In Start address you can use UP/DOWN to set the starting address of all 12 channels from 001-512. 5. If you select Independent addr you can tap UP/DOWN to scroll to All and Single. Tap MENU to enter the submenu. 6.

  • Page 10: Minimum Level

    3.2.3. Minimum Level 1. Press UP/DOWN to get to the Minimum Level menu. 2. Tap MENU, to get to the submenu. 3. Tap UP/DOWN to select between All and Single. Tap MENU to get into the menu. 4. In All mode, tap UP/DOWN to select Minimum Level value of all channels between 00%-30%.

  • Page 11: Maximum Level

    3.2.4. Maximum Level 1. Press UP/DOWN to get to the Maximum Level menu. 2. Tap MENU, to get to the submenu. 3. Tap UP/DOWN to select between All and Single. Tap MENU to get into the menu. 4. In All mode, tap UP/DOWN to select Maximum Level value of all channels between 070%-100%.

  • Page 12: Preset

    3.2.5. Preset This menu allows you to momentarily adjust of all channels or individual channel and all your settings in this menu will be lost when power is off. 1. Press UP/DOWN to get to the Preset menu. 2. Tap MENU, to get to the submenu. 3.

  • Page 13: Curve

    3.2.6. Curve Press UP/DOWN to get to the Curve menu. 2. Tap MENU, to get to the submenu. 3. Tap UP/DOWN to select between All and Single. Tap MENU to get into the menu. 4. In All mode, tap UP/DOWN to select between Linear, S-Curve, Non Dim and Square.

  • Page 14: Technical Data

    4. Technical data Power supply Channel Output (3 Phases) 10 A/CH; 3x40 A Chanel Output 10 A/CH; Total: 120 A Voltage 32 A. 400 V AC Connections Current in Terminal block Current out Terminal block XLR in/out 3pol XLR Controlling Dimming curve Linear, S-Curve Switch...
  • Page 15 15 / 16...
  • Page 16 Importer: B & K Braun GmbH Industriestraße 2 D-76307 Karlsbad info@bkbraun.com 16 / 16...
